Riddler Manufacturing Dana 50/60/70 Cast Iron Cover – RD60

Riddler Manufacturing

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Riddler Manufacturing RD60 cast iron cover for Dana 50, 60, 61 and 70 axles
  • Front or rear use
  • Stainless steel fasteners and Permatex sealant included
  • No vehicle years named; confirm your axle type

Description

Overview

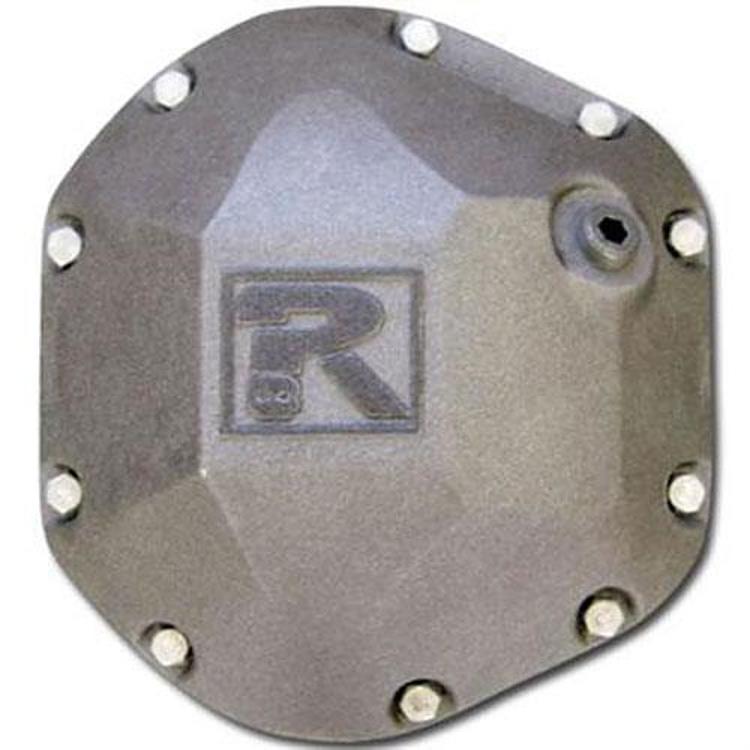

The Riddler Manufacturing RD60 is a cast iron differential cover for Dana 50, Dana 60, Dana 61 and Dana 70 axles, for front or rear positions. It is cast from ductile iron, CNC machined and finished raw.

A lip-free transition design and recessed fasteners give it a smooth profile, and a raised fill plug marks the fill point. The cover ships with stainless steel fasteners and Permatex sealant.

Key features

  • Ductile iron, CNC machined body
  • Lip-free, smooth transition design
  • Recessed fasteners
  • Raised fill plug
  • Stainless steel fasteners and Permatex sealant included
  • Lifetime guarantee stated by the brand

Front and rear use

Dana 50, 60, 61 and 70 axles are heavy-duty housings often found on trucks and work vehicles, and their covers see a lot of abuse from rocks, stumps and debris. Because the same cover can be used front or rear, the main job is confirming the axle type and the mounting pattern. Measure your housing and compare the bolt holes before buying, since small differences between axle generations can affect fit.

Cast iron covers are strong and rigid, which helps them hold shape under impact, but they are heavy and can crack if struck hard enough. When you service the cover, inspect the bolt pattern and the sealing face for nicks, and remove any burrs with a fine file before fitting. Refill the axle to the proper level after the cover is secured.

  • Confirm the axle type on the housing
  • Compare the bolt pattern before ordering
  • Inspect the sealing face for nicks
  • Refill after the cover is secured

Specifications

Brand Riddler Manufacturing
Product code RD60 (from title)
UPC 70000469527
Material Ductile iron
Finish Raw
Axle location Front and rear
Axle types Dana 50, Dana 60, Dana 61, Dana 70
Oil capacity Extra capacity
Included Stainless steel fasteners and Permatex sealant
Warranty Lifetime guarantee
Fitment Universal Fit

Vehicle fitment

Fitment is not tied to any vehicle years, makes or models. The cover fits four Dana axle types in both positions, so confirm the exact axle type on your housing before ordering.

Confirm the exact axle type on your housing before ordering, since the cover covers four Dana types in both positions.

What’s included

Stainless steel fasteners and Permatex sealant are included with the cover.

SKU: RIDRD60 Category:

Specification

Shipping weight 15.96 lbs
Package dimensions 12.00 × 11.00 × 5.00 in
brands

Questions & Answers

Does the Riddler RD60 cover fit Dana 50, 60, 61 and 70 axles?

Yes. The cover is made for Dana 50, Dana 60, Dana 61 and Dana 70 axles, and it is marked for front or rear use. Confirm which axle type your housing is before you order.

Are stainless fasteners included with the RD60?

Yes. Stainless steel fasteners and Permatex sealant are included with the cover. Check the package before the install to confirm whether a gasket is needed.

Which vehicles does the RD60 fit?

No vehicle years, makes or models are named for this cover. It is an axle-based part, so match it to the Dana axle type on your vehicle rather than relying on a model name.

Is cast iron better than steel for a differential cover?

Cast iron is more rigid and tends to resist denting, while steel is lighter and easier to modify. Neither is better for every use. Choose based on the axle type, your terrain and how much weight you expect the cover to take.
