Overview
The ReadyLift 66-2014 is a 4 inch rear block kit for 2011 to 2016 Ford F-250 and F-350 Super Duty trucks in 2WD and 4WD. It is made for trucks with a 2-piece driveshaft, and the lift height varies with the factory block the truck already has.

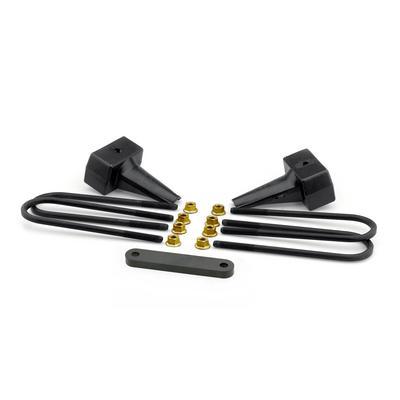

The kit contains two rear blocks with integrated OEM style bump stops, four 15.5-inch long E-coated U-bolts, eight nuts and washers and a carrier bearing spacer. The blocks are based on OEM designs and are not made from lightweight extrusions. They put a slight rake back in the truck for hauling or towing.
ReadyLIFT points out that the kit is not designed to work with aftermarket or factory add-on air spring or load leveling kits that attach to the bump stop tangs. The company warns that using that type of air bag system voids all block warranties and can cause failure of the bump stop tang.
Key features
- 4 inch rear lift with OEM style blocks
- Integrated OEM style bump stops
- 15.5-inch long E-coated U-bolts
- Carrier bearing spacer for 2-piece driveshaft trucks
- Eight nuts and washers
Driveshaft and carrier bearing
The driveshaft layout decides which block kit belongs on a Super Duty. A 2-piece driveshaft uses a center bearing, and a block that raises the rear changes the angle at that bearing. A carrier bearing spacer helps position the bearing after the lift. Before installing, check the driveshaft type on the truck and confirm the carrier bearing is in good shape, since a worn bearing can get worse under the new angle.
Rear blocks on a heavy-duty truck are often part of a towing setup, so the rear suspension will carry more load than a stock setup. Inspect the leaf springs, bump stops and shackles for wear before the install. Keep the bump stop tangs free of modifications, since aftermarket air bag systems are not designed to work with these blocks. After installation, check the driveline and brake lines, and retorque the U-bolts after the first few drives.
Specifications
| Brand | ReadyLift |
|---|---|
| Part number | RDY66-2014 |
| Product type | Rear block kit, OEM style |
| Lift height | 4 inches, varies with the factory block |
| U-bolts | Four, 15.5 inch long, E-coated |
| Driveshaft | 2-piece |
| Drive type | 2WD and 4WD |
| Fitment type | Direct fit |
| Vehicle | Ford F-250 and F-350 Super Duty, 2011 to 2016 |
Vehicle fitment
It is a direct fit for the 2011 to 2016 Ford F-250 Super Duty in the King Ranch, Lariat, Platinum, XL and XLT trims, and for the 2011 to 2016 Ford F-350 Super Duty in the same trims.
The 1-piece driveshaft version of this kit is a separate part, and other Super Duty years are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Do not use this kit with aftermarket or factory air spring or load leveling kits that attach to the bump stop tangs, because ReadyLIFT says doing so voids the block warranties and can cause the bump stop tang to fail.
What’s included
The kit includes two rear blocks with integrated bump stops, four 15.5-inch long E-coated U-bolts, eight nuts and washers and a carrier bearing spacer. The kit carries a Limited Lifetime Warranty.
