Overview

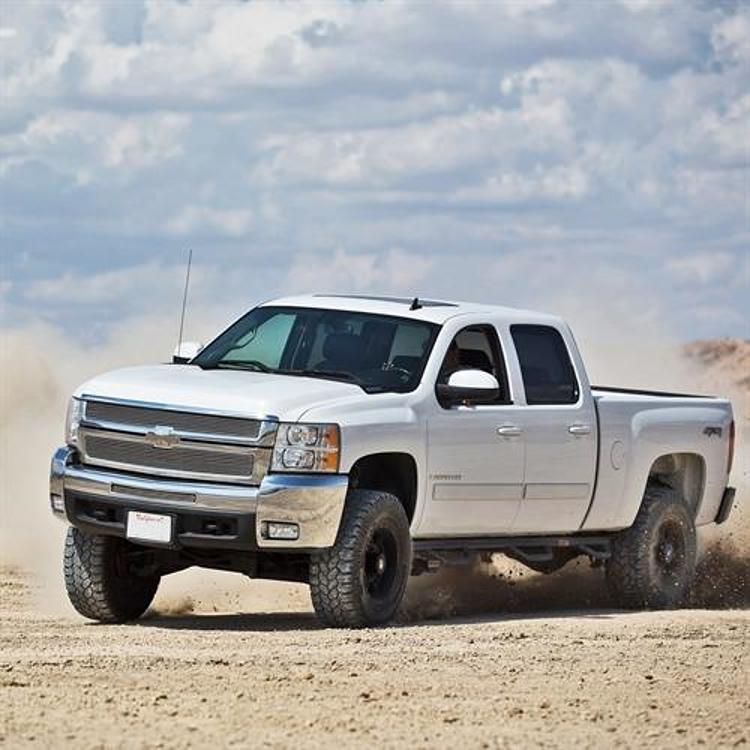

The Pro Comp 6 Inch Lift Kit with ES9000 Shocks, part number K1084B, is a 6-inch knuckle lift for 2000-2012 Chevrolet and GMC 2500-series trucks. The front lift uses front and rear crossmembers with extended steering knuckles and extended-length brake lines. The rear uses lift blocks and U-bolts, and ES9000 shocks are fitted at both ends.
The lift height range is 5 to 6.99 inches, and the maximum tire size is 35×12.50. Shock boots come with the kit, which sets it apart from several other Pro Comp kits.
Key features
- 6-inch stage 1 lift

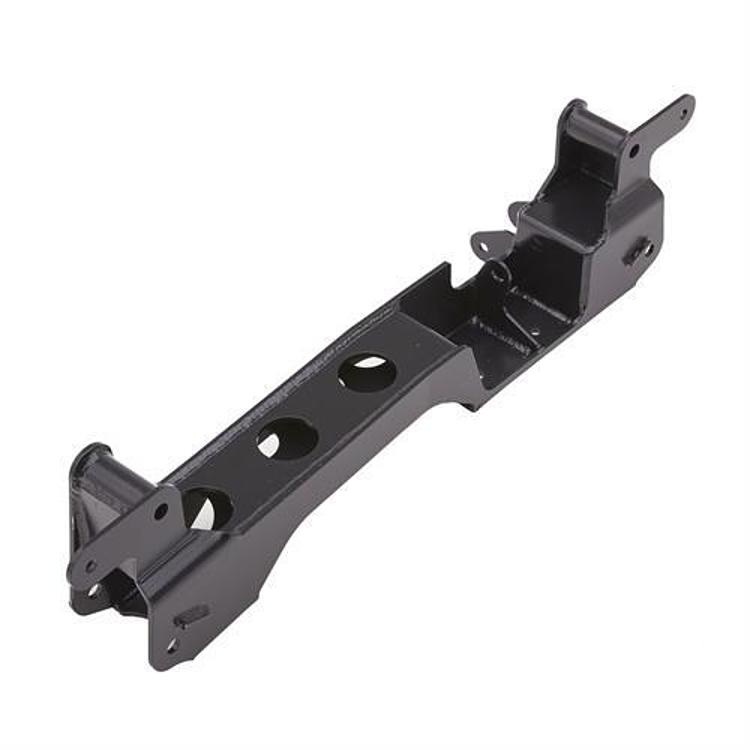

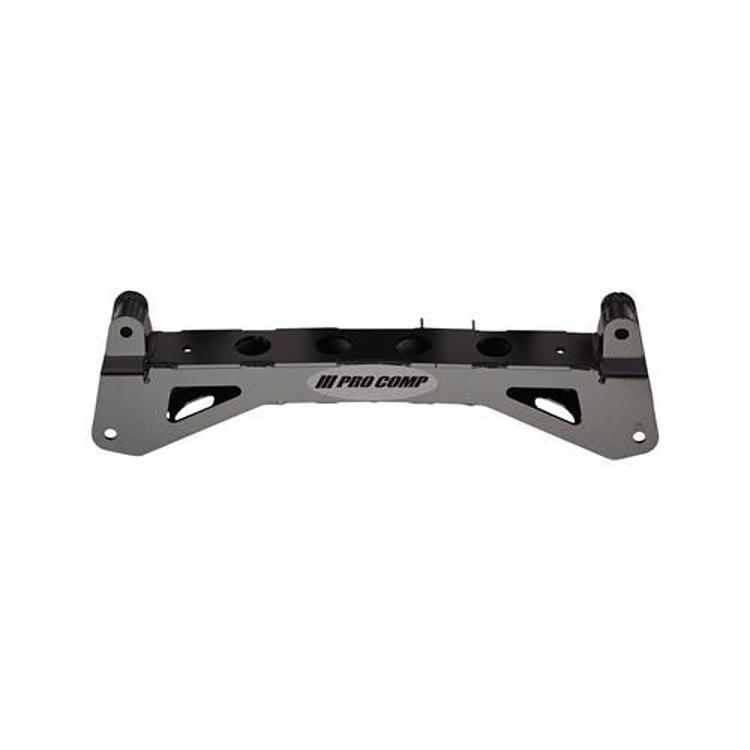

- Front and rear crossmembers

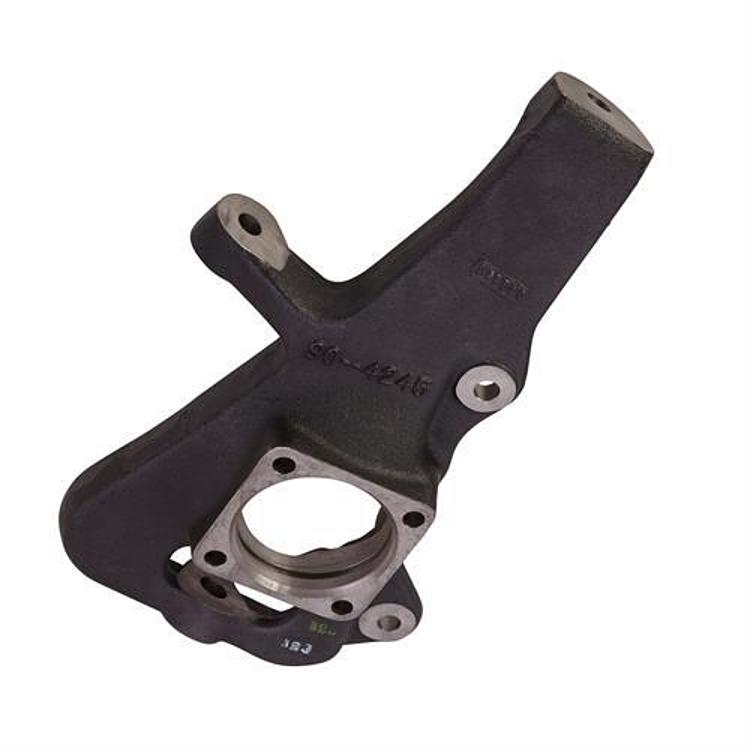

- Extended steering knuckles
- Extended-length brake lines
- Rear lift blocks with U-bolts

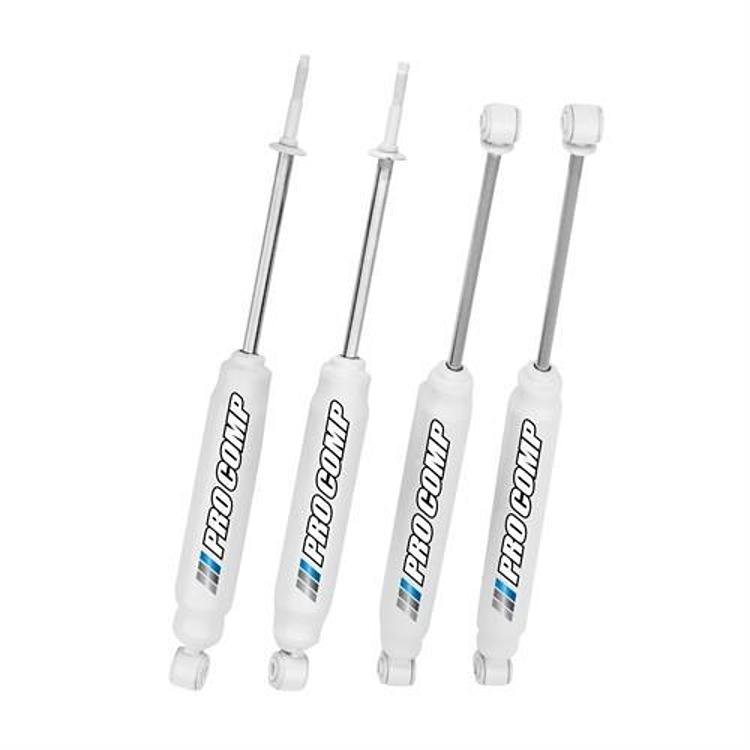

- ES9000 front and rear shocks, with shock boots included
Before you buy
A knuckle lift raises the front end by swapping the steering knuckles, which changes how the front wheels pivot and how the driveline sits. The suspension geometry is different afterward, so an alignment and a driveline angle check are part of finishing the install rather than optional extras. Schedule them soon after the truck is back on its wheels.
Rear lift blocks with U-bolts raise the axle but do not change front geometry, so front and rear heights should be balanced for a level stance. Tire size also matters. Larger tires add load to the new components and can rub at full steering lock, so check clearance before long trips.
- Recheck U-bolt torque after the first few drives
- Inspect extended brake lines for chafing near the frame
- Test steering stops at full lock after installation
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K1084B |
| UPC | 70000501430 |
| Lift height | 6 inches, stage 1 |
| Lift height range | 5 to 6.99 inches |
| Suspension type | Knuckle |
| Rear lift | Lift blocks and U-bolts |
| Shocks | ES9000, front and rear, with shock boots |

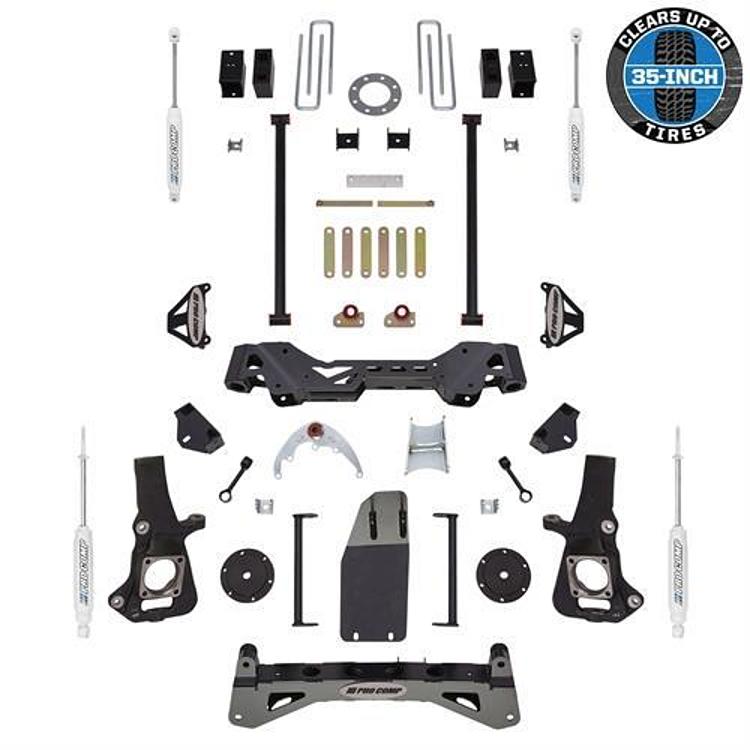

| Maximum tire size | 35×12.50 |
| Fitment | Direct fit |
Vehicle fitment
It fits the 2002-2006 Chevrolet Avalanche 2500, the 2001-2010 Chevrolet Silverado 2500 HD, the 2007 Chevrolet Silverado 2500 HD Classic, the 2000-2012 Chevrolet Suburban 2500, the 2001-2010 GMC Sierra 2500 HD, the 2007 GMC Sierra 2500 HD Classic and the 2000-2012 GMC Yukon XL 2500.
The 1500 series and the 2011 and later Silverado and Sierra 2500 HD are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Replacing the front knuckles changes steering and driveline geometry, so have the alignment and driveline angles checked after installation.
What’s included

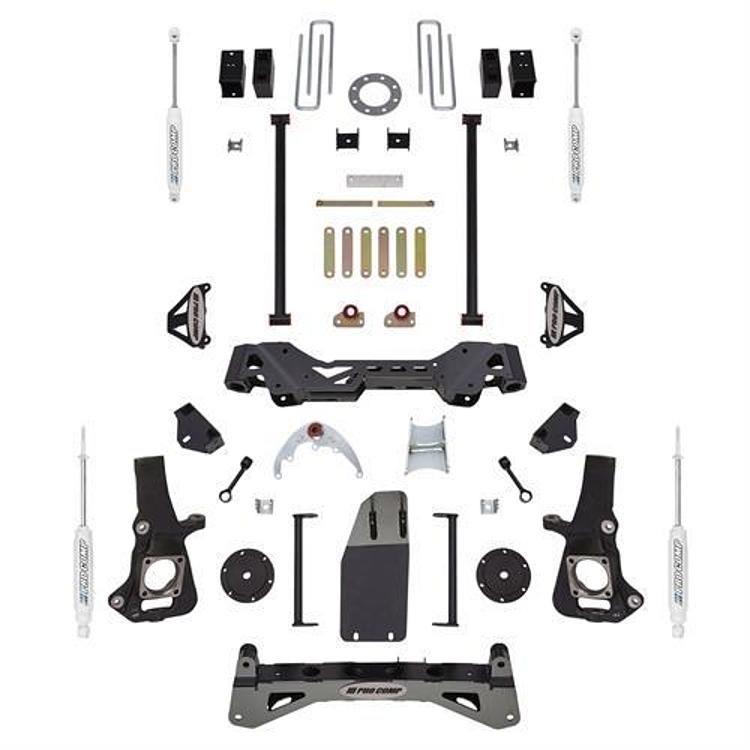

The kit includes front and rear crossmembers, extended steering knuckles, extended-length brake lines, rear lift blocks with U-bolts, ES9000 front and rear shocks, and shock boots.
