Overview
The ReadyLift 66-3922 is a 2-inch leveling kit for the 2019–2020 GMC Sierra 1500 Denali equipped with Adaptive Ride Control (ARC). It adds a lever arm bracket that mounts to the factory upper control arm, so that the ARC system can keep working with the lift. The kit also includes CNC machined aluminum lower strut spacers and new mounting hardware.
The lever arm bracket is designed to keep Adaptive Ride Control working while the truck is leveled. ARC uses suspension leverage points to adjust shock valving during driving, which supports ride and handling on the Sierra Denali. The lower spacers have a taper designed to avoid shock shaft wiper seal wear. The maximum tire is 33×11.50-20 on a 20×9 wheel with 0 offset, and some minor trimming may be needed depending on the tread design. The new brackets mount to the factory upper control arm, and the kit includes new mounting hardware.
Key features
- 2-inch front lift
- Lever arm bracket for Adaptive Ride Control trucks
- Mounts to the factory upper control arm
- CNC machined aluminum lower strut spacers with a taper
- New mounting hardware included
Adaptive ride control basics
Adaptive Ride Control uses sensors and dampers to adjust shock firmness while the truck is being driven. Lifting the front changes the geometry the system was designed around, which is why a lever arm bracket is used to keep the damper inputs in a useful range. Anyone with this system should be aware that a height change affects how the damping feels on rough pavement.
Because the tires and the control arm position both change, the wheel and tire fitment should be considered with the lift. Trimming may be needed for the largest tires, and the alignment should be set once the work is finished. Watch for warning lights or changes in body control after installation, since those can signal that the system needs a check.
- Confirm tire clearance before buying larger tires
- Check alignment after installation
- Watch for warning lights after the first drive
Specifications
| Brand | ReadyLift |
|---|---|
| Part number | RDY66-3922 |
| Type | Front leveling kit with Adaptive Ride Control bracket |
| Front lift | 2 inches |
| Maximum tire | 33×11.50-20 on 20×9 0-offset wheels |
| Shock relocation bracket | Not applicable |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2019–2020 GMC Sierra 1500 Denali.
It fits the Denali trim with Adaptive Ride Control only. Other Sierra trims and the Silverado are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The lever arm bracket mounts to the upper control arm and the lower spacers go under the struts. Trimming may be needed for the largest tires, and the alignment should be checked after installation.
What’s included

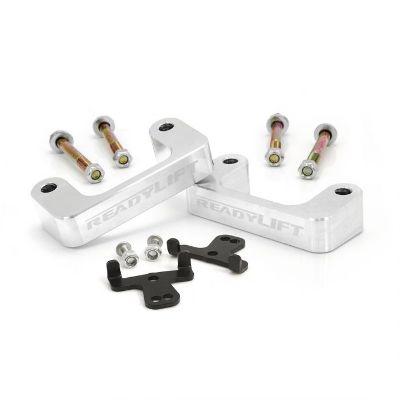

Adaptive Ride Control lever arm brackets, billet aluminum lower strut spacers and new mounting hardware.
