ReadyLift 2.25 Inch Front Leveling Kit – 66-1055

ReadyLift

Shop Dodge Ram 1500 Leveling Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 2.25-inch front coil spacer for 2006–2008 Dodge Ram 1500 2WD
  • Aluminum spring mount with polyurethane upper section
  • Bump stop relocation brackets and shock stem extensions included
  • Part number 66-1055

Description

Overview

The ReadyLift 66-1055 is a 2.25-inch front coil spacer for the 2006–2008 Dodge Ram 1500 2WD in the Laramie, SLT, SRT-10, ST, SXT and Sport trims. It sits on top of the factory coil spring and fits into the frame spring pocket, which ReadyLift says makes it a true coil spring spacer rather than a strut spacer.

The spacer has a CNC machined 6061-T6 aluminum spring mount fused to a polyurethane upper section, and it sits on top of the factory coil spring within the frame spring pocket. The design makes up part of the lift while keeping the factory ride. Custom bump stop brackets limit downward suspension travel and keep the distance within factory specifications. Machined shock stem extensions allow the factory shocks to be kept. Tires up to 35 inches in diameter fit with this kit, and the shock extensions work with factory shocks only.

Key features

  • 2.25 inches of front lift
  • Aluminum spring mount with polyurethane upper section
  • Bump stop relocation brackets
  • Machined shock stem extensions for factory shocks
  • Tires up to 35 inches in diameter.

Coil spacer basics

A coil spring spacer sits between the factory coil spring and its upper perch, so it raises the front end without replacing the spring. Because the spring is still doing the work, the ride stays close to factory feel. The spacer needs a clean seat on both ends to keep the load even.

Changing the front height moves several parts out of their original positions. Bump stops, brake hoses, sway bar links and CV angles can all be affected, so these parts should be checked after the install. Shock length also matters, since a shock that is too short can limit travel and wear faster.

Inspect the bump stops and spacer mounts during routine service. Look for cracked rubber, shifted brackets or worn bushings, and replace any damaged part before the next trip off road.

  • Check shock length against the new height
  • Inspect bump stop rubber for cracks
  • Recheck the alignment after installation

Specifications

Brand ReadyLift
Part number RDY66-1055
Type Front coil spring spacer
Front lift 2.25 inches
Rear lift Front lift only
Spacer material Aluminum spring mount with polyurethane upper section
Bump stops Relocation brackets
Shock stem extensions Included, for factory shocks only
Finish Black
Fitment type Direct fit

Vehicle fitment

It is a direct fit for the 2006–2008 Dodge Ram 1500 2WD in the Laramie, SLT, SRT-10, ST, SXT and Sport trims.

It fits 2WD trucks only. Confirm fit for your vehicle’s year, model and trim before ordering, since 2009 models and the Ram 2500 and 3500 are not covered.

Installation notes

The shock stem extensions are for the factory shocks only, so aftermarket shocks need a different solution. The bump stop brackets are part of the install, and the alignment should be checked afterward.

What’s included

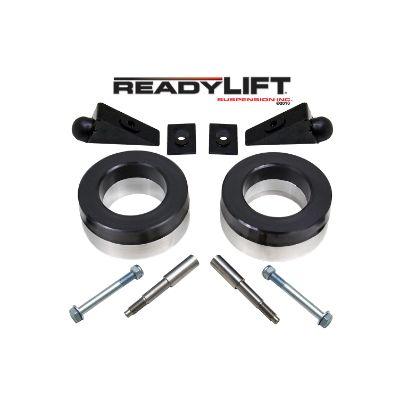

Front coil spacers, bump stop relocation brackets, shock stem extensions and the mounting hardware.

Fitment

VehicleYearsTrims
Dodge Ram 15002006–2008Laramie, SLT, SRT-10, ST, SXT, Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the 66-1055 fit a 2007 Dodge Ram 1500 Laramie?

Yes. It fits the 2006–2008 Dodge Ram 1500 Laramie, including 2007, as well as the SLT, SRT-10, ST, SXT and Sport trims for those years.

Can I use it with aftermarket shocks?

The shock stem extensions are for factory shocks only, so aftermarket shocks need a different solution for the new height. Plan on sourcing shocks that suit the raised front end before installing the kit with them.

Does it fit a 4WD Ram 1500?

It is for 2WD trucks only, so confirm the drive type on your truck before ordering. The kit is for the 2006–2008 Ram 1500 2WD trims, and 4WD trucks are not covered by this kit.

How can I tell if the bump stops need attention?

Look for contact between the frame or upper mount and the bump stop during normal suspension travel. Brackets that relocate the bump stop help keep travel near factory limits after a lift. Inspect the bump stop rubber and bracket welds during routine service, and replace any cracked or compressed pieces.
