Overview

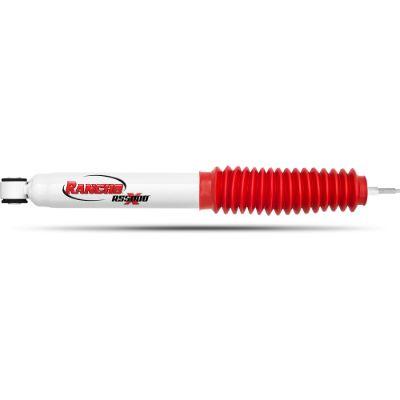

The Rancho RS55392 is a front RS5000X shock for the SE and XE versions of the 2000 through 2004 Nissan Xterra. It has no lift or drop.
The shock has progressive engagement valving, a tuned compression control valve and an enlarged 2-1/4-inch twin tube body that is gas pressurized. It uses a 16 mm nitro-carburized rod, a full-displaced 35 mm bore and a 1-3/8-inch sintered iron piston. It measures 8.53 inches compressed, 11.94 inches extended, with 3.41 inches of travel.
The lower mount is coded LS23 and the upper mount S4, so confirm both codes against the shock being replaced. Rancho says its rebound valving system is patented.
Key features
- Front position shock with no lift or drop
- Progressive engagement valving
- Tuned compression control valve
- Gas pressurized, enlarged 2-1/4-inch twin tube body
- 16 mm nitro-carburized rod and full-displaced 35 mm bore
- Rebound bumper, black natural rubber bushings and double-welded loops
- Low-friction, self-lubricating seal, protective boot and glass-filled, fluon banded piston
Front shock on an Xterra
Front shocks on a compact SUV like the Xterra work with the coil springs and control arms to control body motion, braking dive and steering feel. A worn shock can cause the front end to bounce after dips and feel loose at speed. Because the front suspension carries much of the braking load, a worn unit can affect how the vehicle stops and steers.
When replacing the front shock, match the mounting points and the codes on the old unit, and check the bushings and upper mount while the shock is off. Replace the boot if it is cracked, since grit on the rod can damage the seal. Replacing both front shocks together keeps the ride balanced from side to side.
- Check the upper mount and bushings for wear
- Look for oil on the shock body
- Recheck fasteners after the first few drives
Specifications
| Brand | Rancho |
|---|---|
| Part number | RANRS55392 |
| Series | RS5000X |
| Position | Front |
| Compressed length | 8.53 inches |
| Extended length | 11.94 inches |
| Travel | 3.41 inches |
| Lower mounting code | LS23 |
| Upper mounting code | S4 |
Vehicle fitment
It fits the 2000 through 2004 Nissan Xterra in the SE and XE versions. Xterra years after 2004 and other Nissan models are not covered. Confirm the year, model and trim of your vehicle before placing an order.
The list does not include Xterra model years after 2004, or other Nissan models. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The lower and upper mounting codes differ, so match each end to the shock being replaced before installation.
What’s included
The shock comes with a protective boot.
