Overview

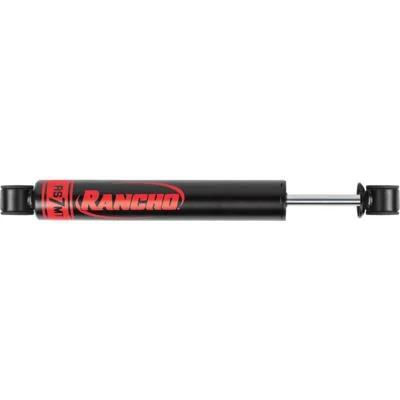

The Rancho RS77330 is a rear RS7MT monotube shock for the 2007 through 2018 Jeep Wrangler (JK), in two-door and Unlimited four-door body styles. It is made for a 3.5 to 4-inch lift.
The shock has a 2-inch monotube body and a bar pin at the top mount, with an eyelet at the bottom. Its compressed length is 17.52 inches, its extended length is 27 inches, and its travel is 9.48 inches.
The RS7MT is made for larger wheel and tire packages on rough terrain. Its piston and valving are designed for responsive damping on and off road.
The internal rebound bumper and shouldered rubber bushings damp harshness, noise and vibration. The PTFE-banded piston improves responsiveness to changing road conditions, giving a smoother overall ride.
The large 2-inch monotube body is filled with all-weather fluid for cooler operation. The body withstands internal temperatures of -40 to 248 degrees Fahrenheit and suits off-road use with larger wheel and tire packages.
Key features
- Rear monotube shock for a 3.5 to 4-inch lift
- Hardened chrome piston rod, 14 mm, resists scuffs and corrosion
- Double-welded loops at stress areas with a double strength closure
- Deflective disc valving with digressive, linear or progressive turning
- Full-floating dividing piston with high-pressure nitrogen gas
- Black satin finish with Rancho red logo
Rear shock care and lift matching
A rear shock on a Wrangler works hard on uneven trails, where the axle travels through its full range. The damping keeps the tires planted, and the internal oil and gas charge hold their balance only while the seals are intact. Heat, dirt and repeated hard landings can all shorten a shock’s working life.
Match the shock to the lift before buying. A 3.5 to 4-inch lift needs a shock with enough extended length, while a stock or lower lift uses a different unit. Mounting needs no sleeves here, but check the eyelets and bushings during installation, and keep the rod clean so grit does not wear the seal.
- Measure lift height before ordering
- Clean grit from the rod after trail use
- Check eyelets and bushings for cracks
- Inspect the body for oil seepage
Specifications
| Brand | Rancho |
|---|---|
| Part number | RANRS77330 |
| Series | RS7MT |
| Position | Rear |
| Shock type | Monotube |
| Compressed length | 17.52 inches |
| Extended length | 27 inches |
| Travel | 9.48 inches |
| Body diameter | 2.0 inches |
| Top mount | Bar pin |
| Bottom mount | Eyelet |
Vehicle fitment
It fits the 2007 through 2018 Jeep Wrangler (JK) in two-door and Unlimited four-door versions.
The list does not include the Wrangler JL or the Gladiator, or Wrangler years outside 2007 through 2018. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The mounting needs no sleeves or extra hardware. Measure the lift on your truck before ordering, since this shock is made for a 3.5 to 4-inch lift.
What’s included
Check the package contents against your installation before starting.
