Overview

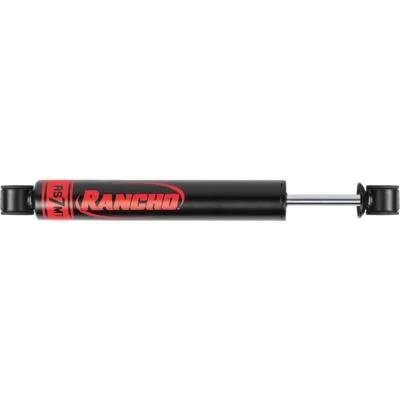

The Rancho RS77065 is an RS7MT front monotube shock for the 2018 through 2026 Jeep Wrangler JL and the 2020 through 2026 Jeep Gladiator. It fits Gladiators with a 1.5 to 3-inch lift and Wrangler JL models with a 2-inch, 3.5-inch or 4.5-inch lift.
It has a 2-inch monotube body filled with all-weather fluid, which allows cooler operation and better control. It is designed to work from -40 to 248 degrees Fahrenheit. It has a compressed length of 17.4 inches, an extended length of 26.65 inches and 9.25 inches of travel. Its 14 mm hardened chrome piston rod is designed to resist scuffs and corrosion.
The deflective disc valving can be digressive, linear or progressive depending on the application. The full-floating dividing piston and high-pressure nitrogen gas hold steady pressure on the hydraulic oil, which reduces aeration and shock fade.
Key features
- Front monotube shock with a 2-inch body
- 14 mm hardened chrome piston rod
- Deflective disc valving, digressive, linear or progressive
- Internal rebound bumper and shouldered rubber bushings
- PTFE-banded piston
- Full-floating dividing piston with high-pressure nitrogen gas
- Double-welded loops and hot form reserve tube
- Application-specific mounting with no sleeves or extra hardware
Shock fade and temperature on trail
Shock fade happens when the damper overheats and loses resistance, often on long descents or repeated rough sections. A monotube design with a separate gas section helps the shock keep consistent pressure, which is why many off-road setups use this layout. Valving also matters, since the right tuning keeps the wheel from hopping over rocks.
When choosing a front shock for a Jeep, keep lift height in mind, because the shock length has to suit the suspension at your lift. Check the mounting style, and if you run larger tires, expect more load on the damper. Inspect the boot and rod after trail use, and keep the reserve tube and bushings free of mud.
- Match shock length to lift height
- Watch for fade on long descents
- Inspect the boot and rod after trail use
- Clean mud from bushings and loops
Specifications
| Brand | Rancho |
|---|---|
| Part number | RANRS77065 |
| Series | RS7MT |
| Position | Front |
| Shock type | Monotube |
| Compressed length | 17.4 inches |
| Extended length | 26.65 inches |
| Travel | 9.25 inches |
| Body diameter | 2.0 inches |
| Top and bottom mount | Eyelet |
| Finish | Black satin with Rancho red logo |
| Operating temperature | -40 to 248 degrees F |
Vehicle fitment
It fits the 2020 through 2026 Jeep Gladiator and the 2018 through 2026 Jeep Wrangler (JL) in two-door and Unlimited four-door body styles.
The list does not include the Wrangler JK or model years before 2018, or Gladiator model years before 2020. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The mounting is application specific and needs no sleeves or extra hardware. Check the lift on your truck against the 2-inch, 3.5-inch or 4.5-inch Wrangler settings before ordering.
What’s included
The shock comes with its protective boot and black satin finish.
