Overview

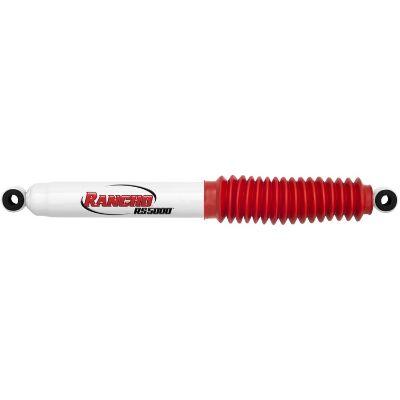

The Rancho RS55111 is a front RS5000 Series shock absorber for 1972 through 1975 Dodge W100 and W200 pickups, and for 1965 through 1969 Dodge W300 models, at no lift.
The shock is gas charged and uses ten-stage velocity sensitive valving, a 5/8-inch piston rod with a 16 mm diameter, and a 1 3/8-inch piston with a 35 mm diameter. The design fits both stock and raised vehicles, so it can be used on W-series trucks at stock height.
Key features
- Front position shock absorber
- Gas charged design
- Ten-stage velocity sensitive valving
- 5/8-inch (16 mm) diameter piston rod
- 1 3/8-inch (35 mm) diameter piston
- Red protective boot included
Working on older trucks
Older W-series trucks often have mounts that have been repaired, replaced or altered over the years, so the shock layout may not match a current drawing. Before removing the old unit, measure its length and note how the upper and lower mounts sit. Gas charged shocks respond to temperature and hard use, so a worn unit can fade during long drives on rough roads.
Front shocks on a truck this age work alongside the steering linkage and the springs. Inspect the steering links, ball joints and bushings while the shock is out, since loose parts can make a new shock feel ineffective. Keep the rubber boot clean and free of grit, and check the mounting hardware after the first few trips on rough ground.
- Measure the old shock before removal
- Inspect steering links and ball joints
- Re-check mounting hardware after the first trips
Specifications
| Brand | Rancho |
|---|---|
| Part number | RANRS55111 |
| Series | RS5000 |
| Position | Front |
| Lift | No lift |
| Charge | Gas charged |
| Valving | Ten-stage velocity sensitive |
| Piston rod | 5/8-inch (16 mm) |
| Piston | 1 3/8-inch (35 mm) |
Vehicle fitment
It fits 1972 through 1975 Dodge W100 and W200 pickups, and 1965 through 1969 Dodge W300 models.
The list does not include the Dodge D-series trucks or any other years. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Compare the rod and piston sizes with the shock you remove before installing. The W-series trucks are older applications, so the mounting layout should be checked against the old shock first.
What’s included
The shock comes with its red protective boot, and it is sold as each.
