Overview

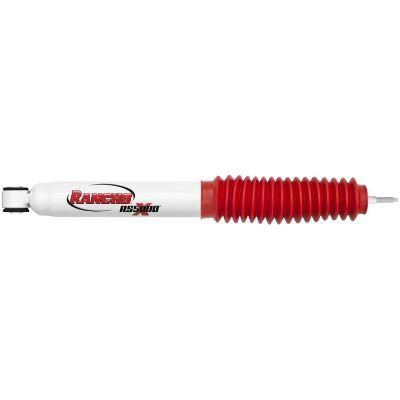

The Rancho RS55237 is a front RS5000X twin tube shock for the 1997 through 2002 Ford Expedition, the 1997 through 2003 Ford F-150, the 2004 Ford F-150 Heritage and the 1998 through 1999 Ford F-250. It is designed for a 4-inch lift.
The shock has progressive engagement valving and a tuned compression control valve, with an enlarged 2-1/4-inch twin tube body that is gas pressurized. It uses a 16 mm nitro-carburized rod, a full-displaced 35 mm bore and a 1-3/8-inch sintered iron piston.
Rancho says its rebound valving system is patented, and that the design was developed by its ride engineers to elevate handling and performance on and off road.
Key features
- Front position shock absorber for a 4-inch lift
- Progressive engagement valving
- Tuned compression control valve
- Enlarged 2-1/4-inch twin tube body, gas pressurized
- 16 mm nitro-carburized rod and full-displaced 35 mm bore
- 1-3/8-inch sintered iron piston with glass-filled, Fluon banded design
- Rebound bumper, black natural rubber bushings and double-welded loops
- Low-friction, self-lubricating seal and protective boot
Lift height and front shocks
A front lift changes the position of the front suspension, so the shock needs to be sized for the ride height the truck runs. A shock that is too short can bottom out on the bump stops, while one that is too long can bind as the suspension moves. Lift height also affects the angle of the control arms and the length of the brake lines.
Before installing a shock for a lifted truck, check the bump stops, brake hoses and steering components for clearance. Recheck the alignment after the lift and the shock are in, since ride height changes can shift camber and caster. Inspect the mounts and boot during routine service, and keep the shocks matched on both sides.
- Check brake hose length at full travel
- Confirm bump stop clearance
- Recheck alignment after installation
Specifications
| Brand | Rancho |
|---|---|
| Part number | RANRS55237 |
| Series | RS5000X |
| Position | Front |
| Shock type | Twin tube |
| Lift | 4 inch |
| Body | 2-1/4-inch twin tube, gas pressurized |
| Piston rod | 16 mm nitro-carburized |
| Bore | 35 mm, full-displaced |
| Piston | 1-3/8-inch sintered iron |
Vehicle fitment
It fits the 1997 through 2002 Ford Expedition, the 1997 through 2003 Ford F-150, the 2004 Ford F-150 Heritage and the 1998 through 1999 Ford F-250. The F-150 after 2004 and F-250 years outside 1998 through 1999 are not covered. Verify your vehicle’s year, model and trim before buying.
The list does not include the Ford F-150 after 2004, or F-250 model years outside 1998 through 1999. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
This shock is designed for a 4-inch lift, so confirm your truck’s lift height before ordering. Compare the rod and piston sizes with the shock you remove.
What’s included
The shock comes with a protective boot.
