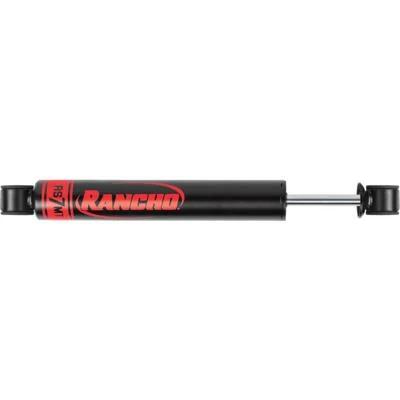

Rancho RS7MT Monotube Front Shock Absorber – RS77326

Rancho

$139.57In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 12:00 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rancho RS7MT front monotube shock for 2007–2018 Jeep Wrangler JK, two- and four-door
  • Suited to models with a 0 to 2-inch lift
  • Compressed 15.24 inches, extended 23.42 inches, travel 8.18 inches
  • Part number RANRS77326

Description

Overview

The Rancho RS77326 is a front RS7MT monotube shock for the 2007 through 2018 Jeep Wrangler (JK), in two-door and Unlimited four-door body styles. It fits models with a 0 to 2-inch lift.

The RS7MT is a monotube shock built for adventure and tuned for both on-road and off-road handling. It is gas charged with a 2-inch monotube body, and its design dissipates heat well, which suits off-road use and larger wheel and tire packages.

Compressed length is 15.24 inches, extended length is 23.42 inches, and travel is 8.18 inches. The top mount is a stem and the bottom mount is an eyelet.

The internal rebound bumper and shouldered rubber bushings reduce noise, vibration and ride harshness, and the PTFE-banded piston improves responsiveness as road conditions change.

Key features

  • Front monotube shock for a 0 to 2-inch lift
  • 14 mm hardened chrome piston rod that resists scuffs and corrosion
  • Large 2-inch monotube body filled with all-weather fluid
  • Deflective disc valving with digressive, linear or progressive turning
  • Full-floating dividing piston with high-pressure nitrogen gas
  • Black satin finish with Rancho red logo

Matching shocks to lift height

A front shock controls suspension movement as the axle travels up and down. On a lifted Wrangler it works with the new ride height, so its compressed and extended lengths need to suit the travel the suspension now uses. A shock that is too short can bind at full droop, and one that is too long can strain the mounts at full compression.

Before replacing a front shock, look at the bushings and the rod. Fluid on the body, a clunk over small bumps, or uneven tire wear can point to worn damping. Replace front shocks in pairs so both sides ride the same, and inspect the mounting hardware while the old unit is off.

  • Measure the lift before choosing a length
  • Inspect stem and eyelet mounts for wear
  • Replace front shocks in pairs
  • Check brake lines and steering clearance after installing

Specifications

Brand Rancho
Part number RANRS77326
Series RS7MT
Position Front
Shock type Monotube
Compressed length 15.24 inches
Extended length 23.42 inches
Travel 8.18 inches
Body diameter 2.0 inches
Top mount Stem
Bottom mount Eyelet

Vehicle fitment

It is a front shock for the 2007 through 2018 Jeep Wrangler (JK), in two-door and Unlimited four-door body styles.

The list does not include the Wrangler JL, the Gladiator JT, or Wrangler model years outside 2007 through 2018. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The mounting is application specific, so no sleeves or extra hardware are needed. The shock is designed for a 0 to 2-inch lift, so check the lift on your Wrangler before ordering. The deflective disc valving can be digressive, linear or progressive, set for the application.

What’s included

The finish is black satin. Check the package contents against your installation before starting.

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–201870th Anniversary (2-Door), 75th Anniversary (2-Door), Rubicon (2-Door), Sahara (2-Door), Sport (2-Door), Sport S (2-Door), Unlimited 70th Anniversary (4-Door), Unlimited 75th Anniversary (4-Door), Unlimited Rubicon (4-Door), Unlimited Sahara (4-Door), Unlimited Sport (4-Door), Unlimited Sport S (4-Door), Unlimited X (4-Door), X (2-Door)

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the RS77326 fit a 2007 Jeep Wrangler JK Unlimited?

Yes. The Unlimited four-door Wrangler JK is covered for 2007 through 2018, so a 2007 Unlimited is in range. Confirm the year and body style before ordering this front shock.

What lift is the RS77326 for?

It is made for models with a 0 to 2-inch lift. Check the lift on your Wrangler before ordering, since a 3.5 to 4-inch lift uses a different RS7MT shock.

How long is the RS77326 when extended?

It has an extended length of 23.42 inches and a compressed length of 15.24 inches, with 8.18 inches of travel.

How can I tell if front shocks need replacing?

Look for fluid leaking from the body, a clunk or knock over small bumps, or bouncing that continues after a hard landing. Uneven tire wear can also point to worn damping, so inspect the shocks whenever the tires show that pattern.
