Overview

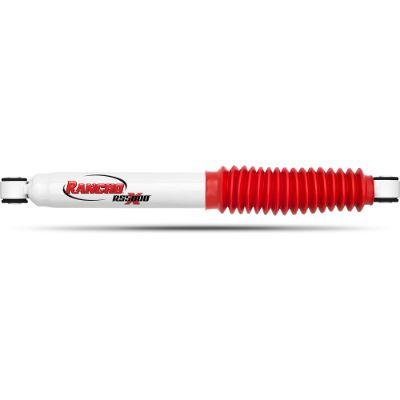

The Rancho RS55388 is a front RS5000X shock for the 2004 through 2009 Dodge Durango, in the Adventurer, Limited, Limited Hybrid, SE, SLT, ST and SXT versions. It has no lift or drop.
The shock is gas charged and uses progressive engagement valving with a tuned compression control valve. It has an enlarged 2-1/4-inch twin tube body, a 16 mm nitro-carburized rod and a full-displaced 35 mm bore. Its compressed length is 10.85 inches, its extended length is 15.75 inches and its travel is 4.90 inches.
The lower mounting code is LS23 and the upper mounting code is LS29, so compare these codes with the shock you remove. Rancho says its design was developed by its ride engineers to elevate handling and performance on and off road.
Key features
- Front shock absorber, no lift or drop
- Progressive engagement valving
- Tuned compression control valve
- Gas pressurized, enlarged 2-1/4-inch twin tube body
- 16 mm nitro-carburized rod and full-displaced 35 mm bore
- Rebound bumper, black natural rubber bushings and double-welded loops
- Low-friction, self-lubricating seal and protective boot
Mounting codes and fit
Mounting codes identify the shock’s upper and lower attachment points, which is the first thing to compare when a shock is being swapped. Two shocks that look alike can have different eye sizes or mounting positions, so matching the codes against the old unit avoids a fit problem at installation.
For a midsize SUV, the front shocks work with the coil springs and sway bar to control body roll and keep the tires planted over uneven pavement. Worn upper mounts and bushings can make a new shock knock or feel loose, so inspect them before installing. Replacing shocks in pairs keeps the front end balanced.
- Compare both mounting codes with the old shock
- Inspect upper mounts and bushings
- Check sway bar links while the front end is open
Specifications
| Brand | Rancho |
|---|---|
| Part number | RANRS55388 |
| Series | RS5000X |
| Position | Front |
| Compressed length | 10.85 inches |
| Extended length | 15.75 inches |
| Travel | 4.90 inches |
| Lower mounting code | LS23 |
| Upper mounting code | LS29 |
| Lift or drop | None |
Vehicle fitment
It fits the 2004 through 2009 Dodge Durango.
The list does not include Durango model years outside 2004 through 2009, or other Dodge SUVs. Confirm your vehicle’s year, model and trim before ordering.
What’s included
A protective boot comes with the shock.
