Rancho RS9000XL Shock Absorber – RS999064

Rancho

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rancho RS9000XL rear tri-tube shock for 2018–2020 Jeep Wrangler JL
  • Stock height, compressed 17.81 inches, extended 24.40 inches
  • Large 2.75-inch (70 mm) tri-tube body with nine-position tuning
  • Part number RANRS999064

Description

Overview

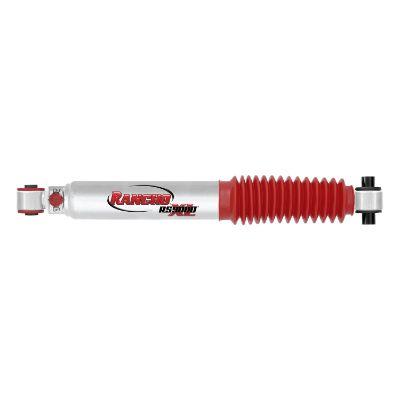

The Rancho RS999064 is a rear RS9000XL tri-tube shock for the 2018 through 2020 Jeep Wrangler (JL). It fits the two-door Rubicon, Sport and Sport S versions, and the Unlimited Rubicon, Sahara, Sport and Sport S versions.

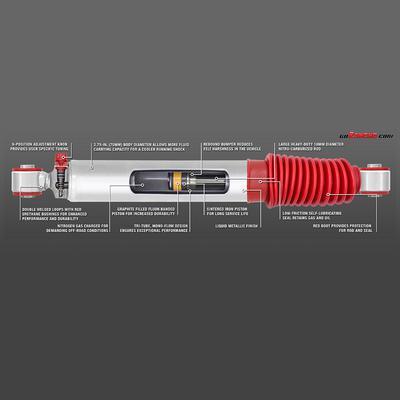

It is built for stock height with no lift or drop. Its compressed length is 17.81 inches, its extended length is 24.40 inches, and travel is 6.59 inches. The large 2.75-inch (70 mm) tri-tube body uses nine-position tuning technology.

The RS9000XL is a manually adjustable nine-position ride control series made for on-road and off-road use and towing. A protective boot is included with the shock.

Key features

  • Rear tri-tube shock at stock height
  • Nine-position tuning technology
  • Large 2.75-inch (70 mm) tri-tube body
  • Protective boot

Rear shock replacement tips

The rear shocks on a Wrangler control axle movement over bumps, under acceleration and during braking, and they work with the coil springs and bump stops to manage body motion. A rear shock that has lost damping may let the back end bounce after dips or feel loose on washboard. Because the rear axle is heavy, worn units can also cause uneven tire wear over time.

When replacing a rear shock, measure the old unit’s compressed and extended lengths and confirm the mounting points. Inspect the bushings and the bolts that hold the shock to the axle and frame. Rear shocks are often replaced in pairs so damping stays balanced from side to side.

  • Check the mounting bolts after the first drive
  • Look for oil on the body or leaking seals
  • Replace bushings that show cracks or wear

Specifications

Brand Rancho
Part number RANRS999064
Series RS9000XL
Position Rear
Shock type Tri-tube
Lift or drop None
Compressed length 17.81 inches
Extended length 24.40 inches
Travel 6.59 inches
Charge Gas charged

Vehicle fitment

It fits the 2018 through 2020 Jeep Wrangler (JL) in two-door and Unlimited four-door versions, in the rear position.

The list does not include the Gladiator, the Wrangler JK, or Wrangler JL years before 2018. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

This shock is built for stock height, so check the lift on your Wrangler before installing. Compare the compressed and extended lengths with the unit being removed.

What’s included

A protective boot is included with the rear shock.

Fitment

VehicleYearsTrims
Jeep Wrangler (JL)2018–2020Rubicon (2-Door), Sport (2-Door), Sport S (2-Door), Unlimited Rubicon (4-Door), Unlimited Sahara (4-Door), Unlimited Sport (4-Door), Unlimited Sport S (4-Door)

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the RS999064 fit a 2021 Wrangler JL?

No, the list covers 2018 through 2020 Wrangler JL models only. Check the model year before ordering this rear shock.

Is the RS999064 for a lifted Wrangler?

No. It is built for stock height with no lift or drop. Check the lift on your Wrangler before ordering.

How long is the RS999064 when extended?

It has an extended length of 24.40 inches and a compressed length of 17.81 inches, with 6.59 inches of travel.

How do I tell whether a rear shock is worn?

Look for oil on the body, a bouncy rear end after dips, or uneven rear tire wear. A shock that no longer controls the axle may also let the rear feel loose on washboard roads.

Should both rear shocks be replaced together?

Replacing both at the same time keeps damping even from side to side. Mixing an old and a new rear shock can make the rear feel unstable on uneven ground, so compare both units before deciding.
