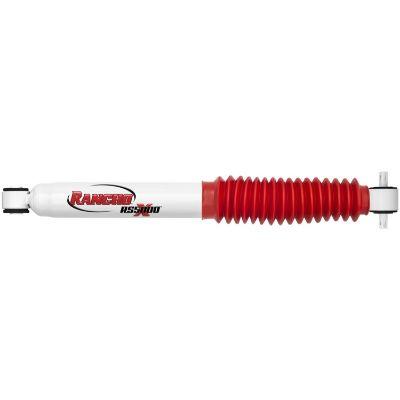

Rancho RS5000X Series Rear Shock Absorber – RS55054

Rancho

$66.32In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 17, 2026 11:40 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rancho RS5000X rear twin tube shock for 2017–2019 Nissan Titan
  • Stock height, no lift, for models without the Off-Road package
  • Compressed length 15.04 inches, extended length 23.45 inches
  • Part number RANRS55054

Description

Overview

The Rancho RS55054 is a rear RS5000X twin tube shock for the 2017 through 2019 Nissan Titan. It fits models without the Off-Road package, in 2WD or 4WD, at stock height with no lift.

The shock measures 15.04 inches compressed and 23.45 inches extended, with 8.41 inches of travel. Its top and bottom mounts are both eyelets, and it has an enlarged 2-1/4-inch twin tube body with a 16 mm nitro-carburized rod and a 1-3/8-inch sintered iron piston.

It uses progressive engagement valving and a tuned compression control valve. The shock is gas pressurized, and a protective boot covers the rod.

It fits 2WD and 4WD models without the Off-Road package. The protective boot and double-welded loops add strength, and the eyelet mounts at both ends are the top and bottom connection points. Confirm stroke and mounting against your truck’s current shock before ordering.

Key features

  • Rear twin tube shock for stock height
  • Progressive engagement valving
  • Tuned compression control valve
  • Gas pressurized twin tube body
  • Eyelet mounts at top and bottom
  • Rebound bumper and black natural rubber bushings
  • Low-friction, self-lubricating seal

Before you buy

Rear shocks on a half-ton pickup do more than cushion bumps. They control how the axle and springs move after a jump or a washboard stretch, and a worn unit lets the rear end bounce and wander. On a truck driven both on pavement and on dirt, the shock works on every trip, so its condition affects steering feel and braking stability as much as ride comfort.

When choosing a replacement, match the mounting style and the extended and compressed lengths of the old unit before anything else. Consider whether the truck carries heavy loads, tows, or runs larger tires, since those change how hard the shock works. A shock built for stock height suits a truck still at factory ride height; if the suspension has been altered, the right shock may differ.

Shocks are often replaced in pairs so both sides damp the same way. Look over the rubber boot and bushings at each oil change, and watch for oil on the body, a clunk over bumps, or uneven tire wear as signs of a tired unit. Recheck the mounting hardware after the first few drives.

  • Compare old and new lengths before ordering
  • Consider load and tow use when picking a unit
  • Inspect boots and bushings at each service

Specifications

Brand Rancho
Part number RANRS55054
Series RS5000X
Position Rear
Shock type Twin tube
Compressed length 15.04 inches
Extended length 23.45 inches
Travel 8.41 inches
Top and bottom mount Eyelet
Body 2-1/4-inch twin tube, gas pressurized
Lift No lift

Vehicle fitment

It is a direct fit for the 2017 through 2019 Nissan Titan in the PRO-4X, Platinum Reserve, S, SL and SV versions.

The list does not include Titan models with the Off-Road package, or model years outside 2017 through 2019. Confirm your vehicle’s year, model and trim before ordering.

What’s included

A protective boot is included with the shock.

Fitment

VehicleYearsTrims
Nissan Titan2017–2019PRO-4X, Platinum Reserve, S, SL, SV

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the RS55054 fit a 2020 Nissan Titan?

No. It fits the 2017 through 2019 Nissan Titan only, so a 2020 model is outside its fit. Confirm the model year before ordering.

Does this shock fit a Titan with the Off-Road package?

No. It is made for models without the Off-Road package. Confirm the package on your truck before ordering this rear shock.

How long is the RS55054 when extended?

It extends to 23.45 inches and compresses to 15.04 inches, with 8.41 inches of travel. Measure the shock you are replacing to confirm the fit.

Should rear shocks be replaced in pairs?

Replacing them in pairs is generally recommended, because a new shock and an old one damp differently and can make the truck pull or sway. Check both rear units for leaks and wear at the same time so the ride stays even.

How can I tell a rear shock is worn?

Common signs include oil streaks on the shock body, bouncing that continues after a bump, nose-diving under braking, and cupped tire wear. A cracked or torn boot or bushing also points to the need for inspection.
