Overview

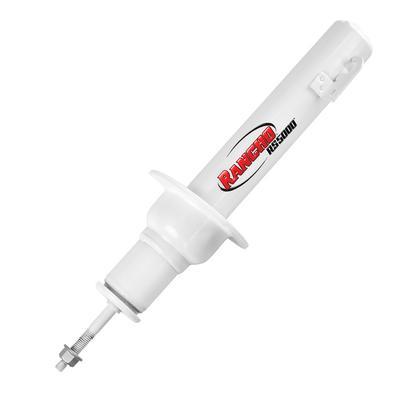

The Rancho RS55826 is a front RS5000X monotube shock for the 2006 through 2010 Jeep Commander (XK). It has no lift and is sold individually.
Rancho built this model around its patented rebound valving and compression design. The 2.25-inch twin tube body and 1.375-inch sintered iron piston carry a 16 mm nitro-carburized rod, and the Fluon banded piston is glass-filled for durability.
On a Commander, the polyurethane rebound bumper helps control rebound in harsh driving, and the black natural rubber bushings add some absorption of ride harshness.
The double-welded loops add strength, and the 16 mm nitro-carburized rod is protected by a red boot during on and off-road driving. With no lift, the shock is intended for a Commander at factory ride height. The unit carries a limited lifetime warranty. Confirm mounting hardware against your vehicle before installation.
Key features
- Front monotube shock absorber with no lift
- Tuned compression control valve
- Full-displaced 35 mm bore
- Polyurethane rebound bumper
- Glass-filled, Fluon banded piston
- Double-welded loops for added strength
- Limited lifetime warranty
Commander front shock care
Front shocks on a Jeep Commander work with the front suspension to control body roll, braking dive and steering feel on rough roads. Because the Commander is a larger SUV, the front units carry a lot of load during heavy braking and when the vehicle is loaded with passengers or gear. A worn front shock can make the nose bob or leave the vehicle feeling loose through corners.
Protect the rod by keeping the red boot in place, since grit can damage the seal and cause leaks. When installing, tighten the mounting fasteners to the factory value and recheck them after the first drive. Replacing both front shocks together keeps damping balanced, and checking the control arm bushings at the same time helps the new shock work as intended.
- Look for oil on the shock body
- Check the mounting bolts and bushings
- Replace the boot if it is cracked
Specifications
| Brand | Rancho |
|---|---|
| Part number | RANRS55826 |
| Series | RS5000X |
| Position | Front |
| Shock type | Monotube |
| Body | 2.25-inch twin tube |
| Piston | 1.375-inch sintered iron |
| Rod | 16 mm nitro-carburized |
| Bore | 35 mm, full-displaced |
| Sold as | Individually |
Vehicle fitment
It fits the 2006 through 2010 Jeep Commander (XK), including the 65th Anniversary Edition and the Base, Limited, Overland and Sport versions. Other Jeep models and Commander years outside 2006 through 2010 are not covered. Match the year, model and trim to your vehicle before you order.
The list does not include other Jeep models, or Commander model years outside 2006 through 2010. Confirm your vehicle’s year, model and trim before ordering.
What’s included
The shock comes with its protective red boot. Each unit is sold individually.
