Overview

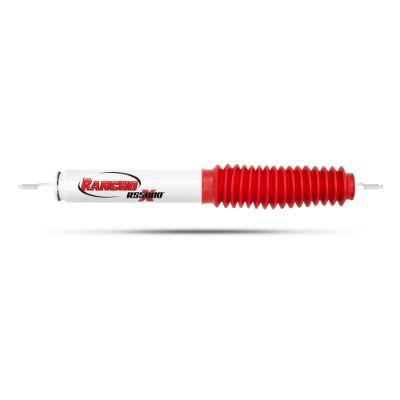

The Rancho RS55159 is a front RS5000X shock for Land Rover vehicles. It fits the 1993 Defender 110, the 1994, 1995 and 1997 Defender 90, the 1994 and 1995 Discovery, the 1987 through 1994 Range Rover and the 1993 Range Rover Sport.
The shock measures 12.79 inches compressed and 21.07 inches extended, with 8.28 inches of travel. Both the lower and upper mounts use the S4 code, so compare these mounts with the shock being replaced before ordering.
Rancho says its progressive engagement valving and tuned compression control valve are part of the RS5000X design, and the shock has a gas pressurized, enlarged 2-1/4-inch twin tube body.
Key features
- Front twin tube shock for Land Rover applications
- Progressive engagement valving
- Tuned compression control valve
- Gas pressurized, enlarged 2-1/4-inch twin tube body
- 16 mm nitro-carburized rod
- Full-displaced 35 mm bore
- Glass-filled, fluon banded piston
Land Rover shock maintenance
Land Rover front shocks of this era work in harsh conditions, with mud, water and heat all wearing on the rubber and seals. A shock that has lost damping lets the front end bounce over ruts and can make the steering feel vague on the highway.
Because the mounts are rubber-bushed on many of these trucks, the bushings often wear before the shock body does. Cracked or hardened rubber can mimic a bad shock, so inspect the bushings when the old unit comes out. Clean the mounting points thoroughly so the new shock seats squarely.
Check the front springs and steering linkage at the same time, since loose joints shorten the life of a new shock. Recheck the hardware after the first few drives on rough roads.
- Inspect rubber mount bushings when removing the old shock
- Clean mounting points before installing
- Check linkage and springs at the same time
Specifications
| Brand | Rancho |
|---|---|
| Part number | RANRS55159 |
| Position | Front |
| Compressed length | 12.79 inches |
| Extended length | 21.07 inches |
| Travel | 8.28 inches |
| Lower mounting code | S4 |
| Upper mounting code | S4 |
| Piston | 1-3/8-inch sintered iron |
Vehicle fitment
It is a direct fit for the 1993 Land Rover Defender 110, the 1994, 1995 and 1997 Defender 90, the 1994 and 1995 Discovery, the 1987 through 1994 Range Rover and the 1993 Range Rover Sport.
The list does not include other Land Rover models, or Range Rover and Defender years outside the ranges above. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Match the mounting codes before ordering. Both the lower and upper mount use S4, so compare these codes with the shock you remove.
What’s included
The shock is a single front unit with its protective boot.
