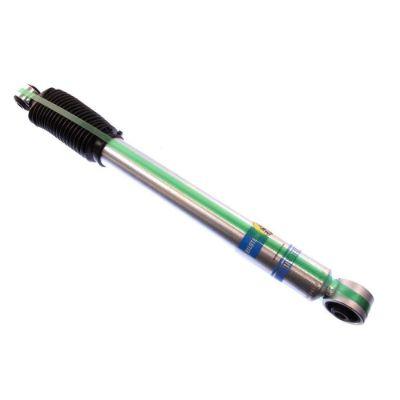

Bilstein 5100 Series Shock Absorber – 24-288347

Bilstein

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear shock for the 2017-2024 Nissan Titan
  • Bilstein 5100 Series monotube for up to 1 inch of lift
  • 15.94 in. collapsed, 24.61 in. extended, 14mm eye mounts
  • Zinc-plated finish, no reservoir

Description

Overview

The Bilstein 24-288347 is a Bilstein 5100 Series rear shock absorber for the 2017-2024 Nissan Titan, designed for vehicles with up to 1 inch of lift. It is a monotube shock with a zinc-plated finish and no reservoir.

Bilstein describes its B8 5100 shocks as a direct-fit solution for lifted trucks and SUVs, with a monotube design that gives consistent, fade-free performance. A velocity-sensitive, digressive piston reacts to changing road conditions, and each B8 5100 shock is tuned for its specific application. Bilstein says they offer a significant improvement in ride quality, handling and comfort.

The shock has a collapsed length of 15.94 in. and an extended length of 24.61 in., with 14mm eye mounts at both ends.

Key features

  • Bilstein 5100 Series rear shock absorber
  • The monotube design is intended for consistent, fade-free performance.
  • Velocity-sensitive, digressive piston
  • Intended for up to 1 inch of lift
  • Collapsed length 15.94 in., extended length 24.61 in.
  • 14mm eye mount at the top and bottom
  • Zinc-plated finish
  • No reservoir

Rear shocks and lift height

Rear shocks carry much of the load when a truck is loaded in the bed or towing. Lift height changes the geometry of the suspension, so a shock matched to the lift keeps the wheels tracking correctly and limits strain on the mounts.

A velocity-sensitive piston responds to the speed of suspension movement, which affects how the truck feels on washboard roads and sudden dips. Mounts with eyes at both ends are easy to swap, but the bushings should be inspected at the same time.

Replacing rear shocks is a good time to check the springs, bump stops and control arm bushings for wear.

  • Match shock length to your lift
  • Inspect bump stops during the swap
  • Check control arm bushings for wear

Specifications

Brand Bilstein
Part number BIL24-288347
Product type Rear shock absorber
Series 5100 Series (B8 5100)
Design Monotube
Position Rear
Lift height For up to 1 inch of lift
Collapsed length 15.94 in.
Extended length 24.61 in.
Upper mount type Eye, 14mm
Lower mount type Eye, 14mm
Reservoir No
Finish Zinc plated
Fitment type Direct fit

Vehicle fitment

The stored manufacturer fitment list for the Bilstein 24-288347 covers the 2017-2024 Nissan Titan (PRO-4X, Platinum Reserve, S, SL, SV).

Only the model years and trims above are covered. Earlier Nissan Titan generations and other Nissan trucks fall outside this fit. Confirm your year, model and trim before ordering.

Installation notes

Suspension parts carry safety loads, so have a qualified shop install this shock. Torque every fastener to the correct value for your truck before driving.

  • Support the vehicle on rated jack stands on level ground; never work under a vehicle held only by a jack.
  • Inspect nearby bushings, mounts and hardware while the area is open, and replace anything worn.
  • Re-check fastener torque after the first miles of driving, and again at regular service intervals.
  • Have the alignment checked after any suspension or steering work.
  • Confirm tire, brake line and wiring clearance through the full range of suspension travel before driving normally.

What’s included

One Bilstein 5100 Series rear shock absorber.

Not included: Front shocks and mounting hardware need to be sourced separately if your truck requires them.

Fitment

VehicleYearsTrims
Nissan Titan2017–2024PRO-4X, Platinum Reserve, S, SL, SV

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Bilstein 24-288347 fit a Nissan Titan?

It fits the 2017-2024 Nissan Titan in the PRO-4X, Platinum Reserve, S, SL and SV trims. Other Titan years and trims fall outside this fit, so confirm your year and trim before ordering.

Is the Bilstein 24-288347 a front or rear shock?

It is a rear shock, and it fits the rear position on the 2017-2024 Nissan Titan. Mount it only in the rear location, and confirm the position for your truck before ordering.

How much lift is the Bilstein 24-288347 designed for?

The shock is built for up to 1 inch of lift. The B8 5100 line is a direct-fit option for lifted trucks and SUVs, so check that your lift height matches before ordering.

What are the lengths and mounts of the Bilstein 24-288347?

The collapsed length is 15.94 in. and the extended length is 24.61 in. Both the upper and lower mounts are 14mm eye mounts, and the finish is zinc plated.

Can I run this shock with a front shock from a different brand?

Yes, mixing brands is common, but match the damping feel front to rear so the truck handles evenly. Front and rear shocks work as a pair, so replacing both sides of the same axle keeps the ride balanced.
