Rancho 4 Inch Lift Kit – RS6554B

Rancho

Check today’s price on Amazon

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rancho RS6554B 4-inch torsion bar relocation lift kit for Silverado and Sierra 2500 HD
  • Keeps factory steering geometry, so no steering correction is needed
  • Allows up to 35-inch tires on stock wheels

Description

Overview

The Rancho 4-inch Lift Kit, part number RS6554B, is a torsion bar relocation suspension system for the Chevrolet Silverado and GMC Sierra 2500 HD and 3500 HD trucks. It lifts the front with torsion bar relocation brackets, extended length steering knuckles and a heavy duty one-piece subframe, and lifts the rear with lift blocks and U-bolts.

The kit keeps the factory rack and pinion location, so the steering and alignment geometry stay intact and no steering correction is needed. It is rated for tires up to 35 inches and works with the stock wheels and tires.

Key features

  • Torsion bar relocation brackets for the front lift
  • Extended length steering knuckles

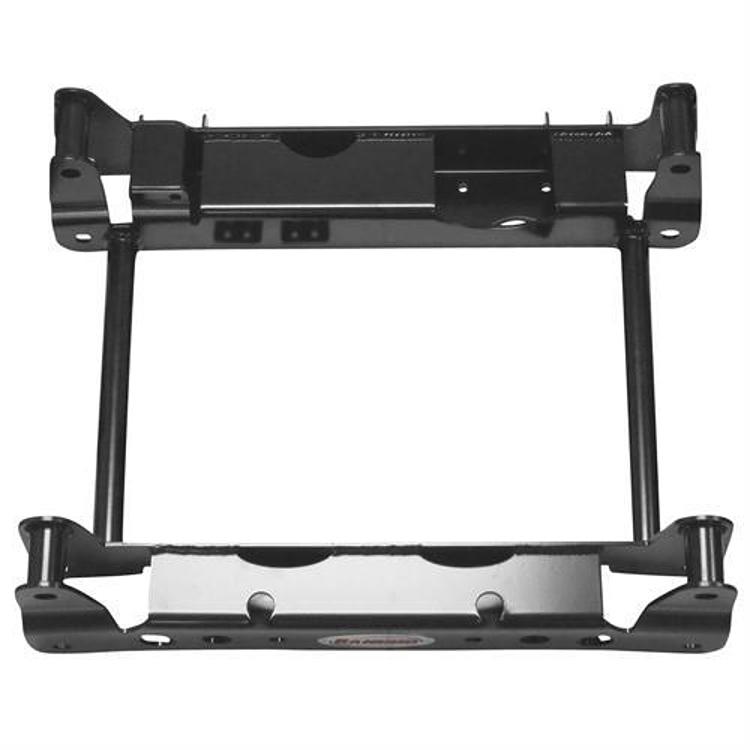

  • Heavy duty one-piece subframe
  • Lift blocks and U-bolts for the rear
  • Impact strut included
  • No drivetrain or exhaust modifications required

Shock and brake planning

Longer shocks change damping and how far the suspension can travel, so the shock package should be chosen with the lift in mind. Look for shocks sized for the new ride height and check the mounting points before the install. Shocks that are too short can bind at full droop.

Torsion bar relocation changes the front geometry and the position of the brake lines and steering knuckle. Look over the brake hoses and ABS wiring after the lift, and check the sway bar links, since they are often reused. Plan a full front alignment and tire check when the install is complete.

  • Measure the stock shock length before buying replacements
  • Check the brake hoses for stretch at full droop
  • Inspect the ABS wiring for slack
  • Look for tire rubbing at full lock

Specifications

Brand Rancho
Part number RS6554B
UPC 39703003292
Lift height range 3 to 4.99 inches
Suspension type Short arm
Rear lift method Coil springs with lift blocks and U-bolts
Steering correction None required
Maximum tire size 35 inches
Shocks Not included

Vehicle fitment

The kit fits these trucks:

  • 2011 to 2017 Chevrolet Silverado 2500 HD
  • 2011 to 2013 Chevrolet Silverado 3500 HD
  • 2011 to 2017 GMC Sierra 2500 HD
  • 2011 to 2013 GMC Sierra 3500 HD

Trucks outside these model years and the 1500 series are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Longer shocks are required and are not included, so plan the shock package before the install. The front lift changes the suspension geometry, so have the front alignment checked afterward.

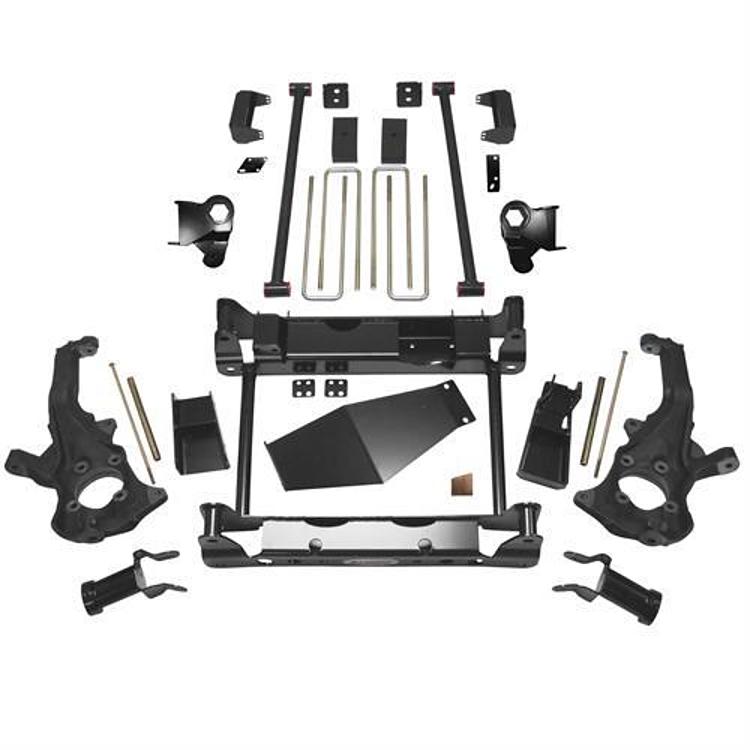

What’s included

Torsion bar relocation brackets, extended length steering knuckles, heavy duty one-piece subframe, lift blocks, U-bolts and an impact strut. Not included: shocks, which need to be longer than stock.

SKU: RANRS6554B Category:

Specification

Shipping weight 271.00 lbs
Package dimensions 48.00 × 48.00 × 29.50 in
brands

Fitment

VehicleYearsTrims
Chevrolet Silverado 2500 HD2011–2017High Country, LT, LTZ, WT
Chevrolet Silverado 3500 HD2011–2013LT, LTZ, WT
GMC Sierra 2500 HD2011–2017Base, Denali, SLE, SLT, WT
GMC Sierra 3500 HD2011–2013Denali, SLE, SLT, WT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the RS6554B keep the factory steering geometry?

Yes. The kit keeps the factory rack and pinion location, so the steering and alignment geometry stay intact and no steering correction is needed.

What tire size will this kit run?

The kit allows up to a 35-inch tire and works with the stock wheels and tires. No drivetrain or exhaust modifications are required.

Are shocks included with the RS6554B?

No. Shocks are not included, and longer shocks than stock are required. Plan for the shock package before installing the kit.

What should be checked after a front torsion bar lift?

Have the front alignment checked first, since the front lift changes suspension geometry. Look at the bump stops, sway bar links and brake hoses for stretch or contact, and confirm that the tires clear the fender at full steering lock.
