Pro Comp 6 Inch Lift Kit with ES9000 Shocks – K1087B

Pro Comp Suspension

Shop GMC Sierra 3500 HD Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6-inch crossmember and knuckle lift for 3500 HD trucks
  • ES9000 front and rear shocks, with extended brake lines
  • Clears 35-inch tires with no trimming
  • Fits the 2018 Chevrolet Silverado 3500 HD and 2011-2018 GMC Sierra 3500 HD

Description

Overview

The Pro Comp 6 Inch Lift Kit with ES9000 Shocks, part number K1087B, is a crossmember and knuckle lift for 3500 HD trucks. It fits the 2018 Chevrolet Silverado 3500 HD (High Country, LT, LTZ and WT) and the 2011-2018 GMC Sierra 3500 HD (Base, Denali, SLE, SLT and WT).

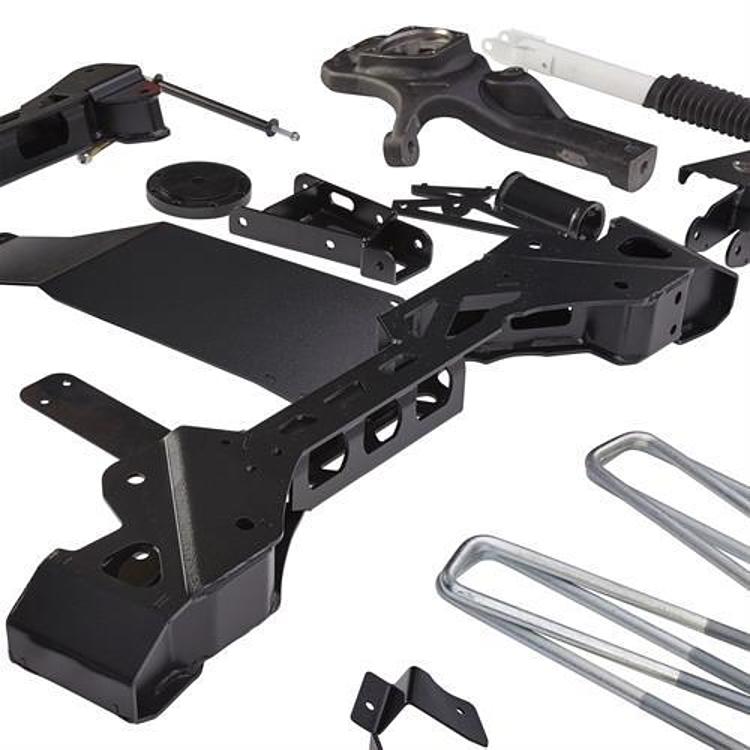

The front lift uses a heavy-duty, laser-cut crossmember and steering knuckles, quarter-inch thick. The system clears 35-inch tires with no trimming and needs no welding, drilling or differential cutting. The rear uses lift blocks and U-bolts, with a 6-inch lift and a 5 to 6.99 inch lift height range.

Key features

  • 6-inch stage 1 lift

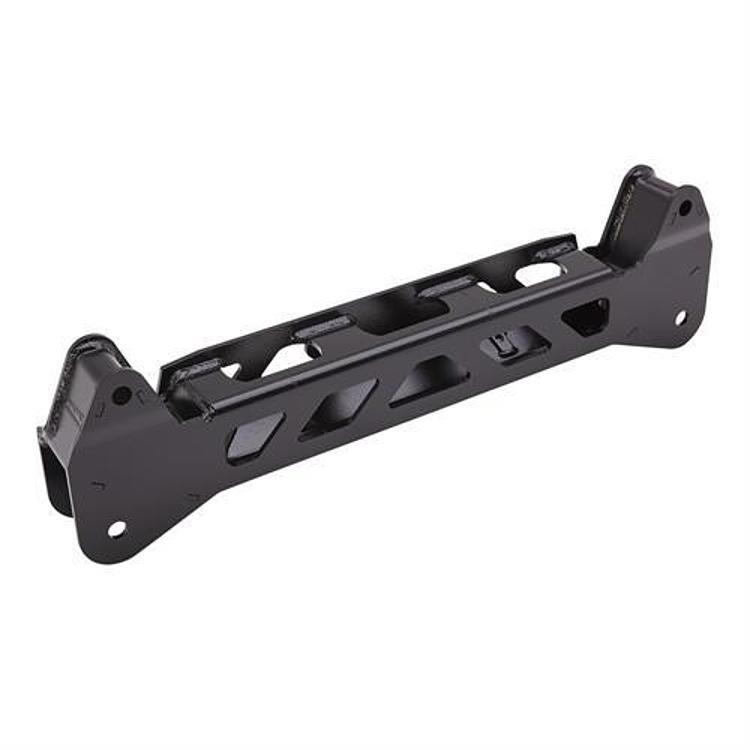

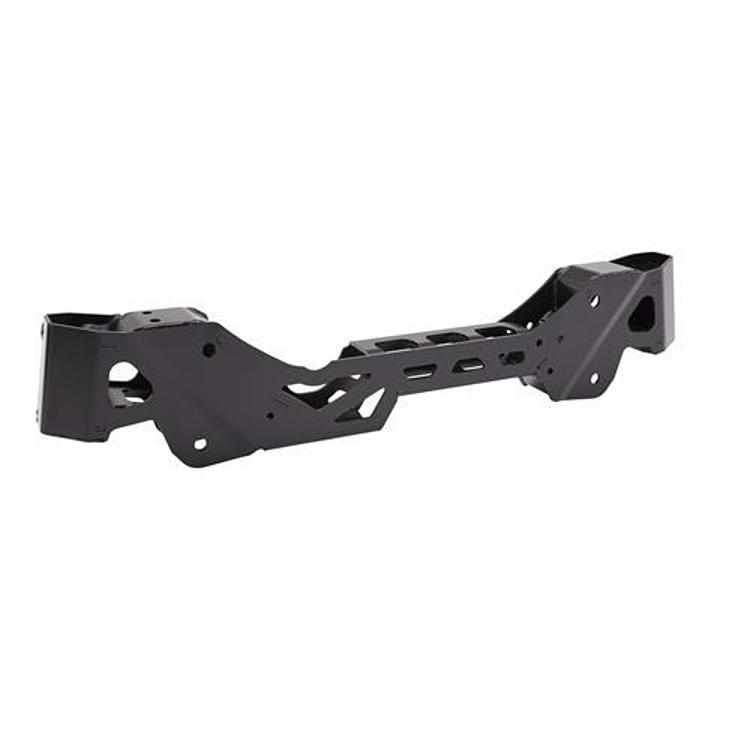

  • Front and rear crossmembers

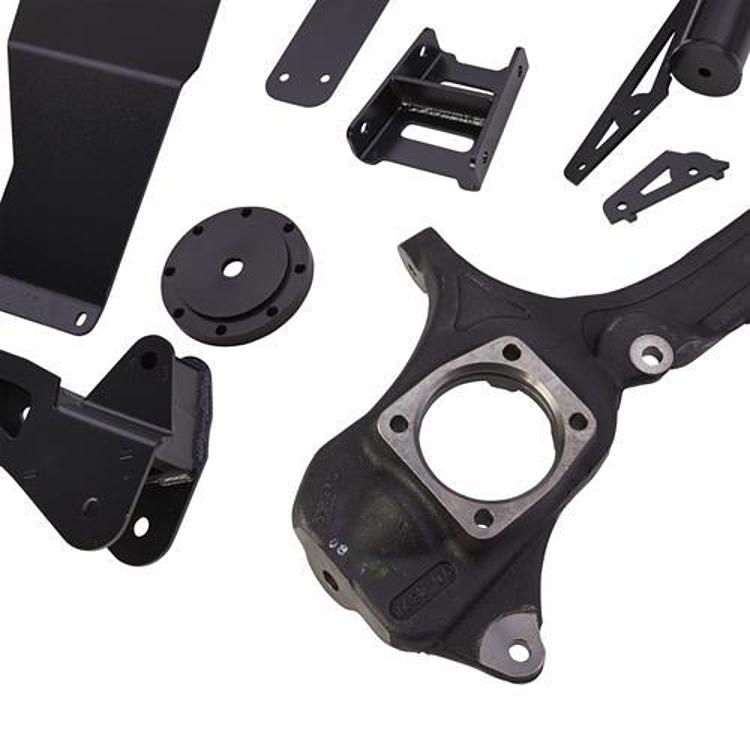

  • Steering knuckles
  • Extended brake lines
  • Lift blocks with U-bolt kit
  • ES9000 front and rear shocks
  • Clearance for 35-inch tires with no trimming

Heavy-duty lift considerations

On 3500 HD trucks, the front end carries more load than on lighter trucks, so the crossmember and knuckle system must be installed with care. Lift blocks and U-bolts at the rear should be matched with the front height so the truck sits level. A heavy-duty lift also changes braking and steering feel, so test drive gently after installation.

Towing and payload affect how a lifted 3500 HD handles, and wheel and tire choice should reflect the loads the truck carries. Extended brake lines and steering components should be checked for clearance through full steering travel. Plan for a full alignment and driveline check after the install.

  • Torque lift block U-bolts after the first drives
  • Check brake line clearance at full steering lock
  • Inspect driveline components after heavy towing

Specifications

Brand Pro Comp Suspension
Part number K1087B
UPC 614901023220
Lift height 6 inches, stage 1
Lift height range 5 to 6.99 inches
Suspension type Knuckle
Rear lift Lift blocks and U-bolts
Shocks ES9000, front and rear
Color Black
Fitment Direct fit

Vehicle fitment

Covered trucks are the 2018 Chevrolet Silverado 3500 HD in High Country, LT, LTZ and WT trim, plus the 2011-2018 GMC Sierra 3500 HD in Base, Denali, SLE, SLT and WT trim.

The 2500 HD trucks and 1500-series trucks are not on this list, and the 2011-2017 Silverado 3500 HD years are not included. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The knuckle and crossmember design replaces factory front components, so have the alignment and driveline angles checked after installation.

What’s included

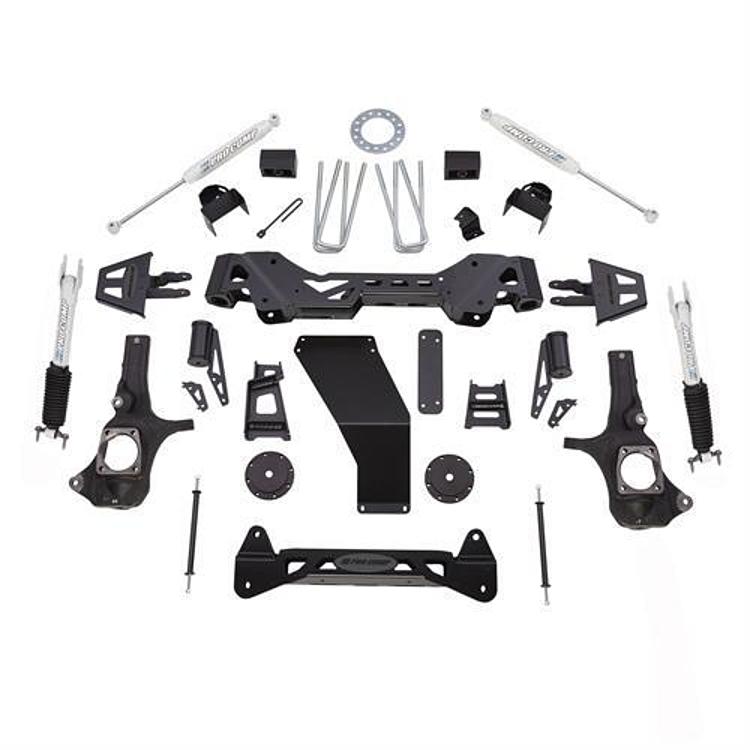

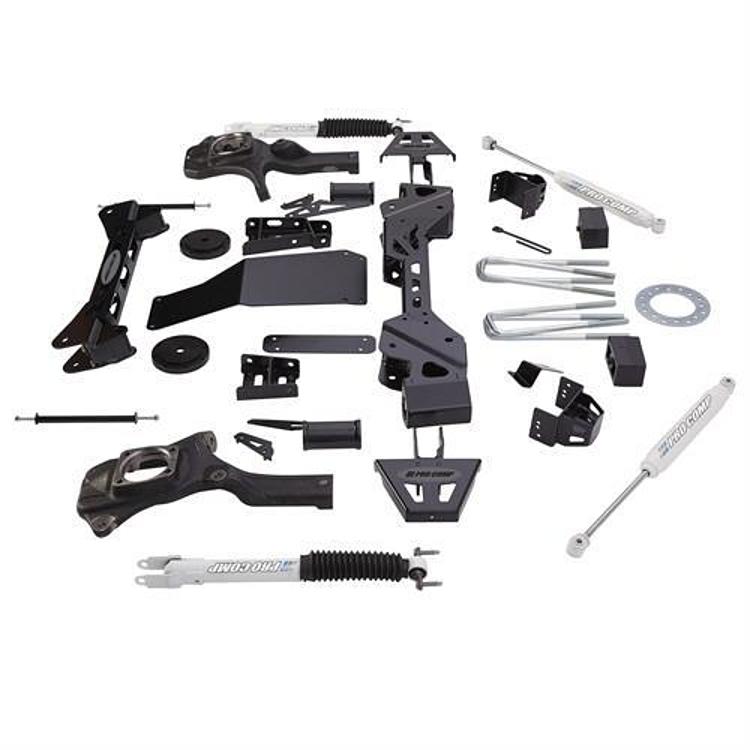

The kit includes the front crossmembers, steering knuckles, extended brake lines, lift blocks with a U-bolt kit, and ES9000 front and rear shocks.

SKU: EXPK1087B Category:

Specification

Shipping weight 409.20 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Chevrolet Silverado 3500 HD2018High Country, LT, LTZ, WT
GMC Sierra 3500 HD2011–2018Base, Denali, SLE, SLT, WT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the K1087B fit a 2014 GMC Sierra 3500 HD?

Yes. A 2014 model falls within the 2011-2018 range for the Sierra 3500 HD. Base, Denali, SLE, SLT and WT trims are covered.

Does the K1087B clear 35-inch tires?

Yes. It clears 35-inch tires with no trimming. Recheck tire fit after alignment, and keep the lift blocks and U-bolts torqued during the first few drives.

Does the K1087B fit the 2016 Chevrolet Silverado 3500 HD?

No. The Silverado 3500 HD fit covers only the 2018 model year. Earlier Silverado 3500 HD years are outside the coverage for this kit.

Do extended brake lines need inspection after a knuckle lift?

Yes. Extended brake lines flex as the suspension moves, so inspect them for chafing, kinks and leaks after installation and at regular service. Check that the lines clear the crossmember and steering components through full steering travel.
