Overview
The Pro Comp 4-inch Lift Kit with PRO-X Rear Shocks, part number EXPK1176T (kit K1176T), is a stage 1 suspension lift for 2019 to 2026 Chevrolet Silverado 1500 and GMC Sierra 1500 trucks. It also fits the 2022 GMC Sierra 1500 Limited.
The kit is engineered for 20-inch or larger wheels and provides clearance for 35-inch all-terrain tires. It raises the truck 4 inches at stage 1, with a lift height range of 4 to 5.5 inches. PRO-X shocks are fitted at the rear.
Extended steering knuckles keep the factory steering geometry. Front lower crossmembers and a differential skid plate are made from 3/16-inch thick steel, adding chassis strength and protecting the front differential. Upper strut spacers retain the factory-tuned struts, helping the ride stay close to factory quality. Rear lift blocks, U-bolts and PRO-X shocks hold a level stance while keeping the factory load capacity.
Key features
- 4-inch stage 1 suspension lift
- Extended steering knuckles that keep factory steering geometry
- 3/16-inch steel front lower crossmembers and differential skid plate
- Upper strut spacers that retain the factory-tuned struts

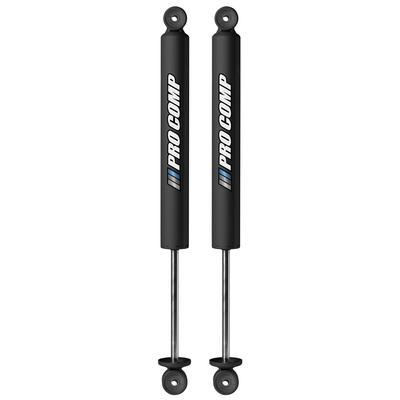

- Rear lift blocks, U-bolts and PRO-X rear shocks
Before you buy
A suspension lift raises the body above the axles, which creates room for bigger tires and can improve clearance on rough roads. Because the front and rear geometry change, steering feel, braking and driveline angles all shift a little. Shops often suggest checking alignment and caster after any lift, since the control arms and knuckles no longer sit where the factory set them.
Larger tires add weight and rotating mass, so brakes, wheel bearings and gearing deserve a look once the work is finished. Tire diameter changes also move speedometer readings, which affects shift timing for the transmission. Steering and suspension joints should be inspected at regular intervals, especially on trucks that see frequent off-road use.
- Check ball joints and tie rod ends at regular intervals
- Re-torque lug nuts after the first highway run
- Inspect skid plate mounts after rough trail use
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | EXPK1176T |
| Kit code | K1176T |
| Suspension type | Lift kit, stage 1 |
| Lift height | 4 inches stage 1; range 4 to 5.5 inches |
| Rear lift method | Block or spacer |
| Rear lift component | Block and U-bolt |
| Rear shocks | PRO-X |
| Shocks included | Yes |
| Fit type | Direct fit |
Vehicle fitment
It fits 2019 to 2026 Chevrolet Silverado 1500 trucks in the Custom, Custom Trail Boss, High Country, LT, LT Trail Boss, LTZ, RST, SSV, WT and ZR2 versions, and 2019 to 2026 GMC Sierra 1500 trucks in the AT4, AT4X, Base, Denali, Denali Ultimate, Elevation, Pro, SLE and SLT versions. It also fits the 2022 GMC Sierra 1500 Limited.
It does not fit 2018 and earlier trucks or 2023 and newer models. It is not for vehicles with factory base suspension packages, or for GMC Denali trucks with Adaptive Ride Control. Confirm fit against your vehicle’s year, model and trim first.
Installation notes
Do not install this kit on vehicles with factory base suspension packages, or on GMC Denali trucks with Adaptive Ride Control. Confirm the suspension package on the truck before starting.
What’s included
The 4-inch lift kit with the PRO-X rear shocks, the extended steering knuckles, the front crossmembers and differential skid plate, and the upper strut spacers.
