Fabtech 6 Inch RTS Lift Kit w/Dirt Logic SS Shocks – K1051DL

Fabtech

Shop GMC Sierra 3500 HD Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Lists the 2011–2018 Chevrolet Silverado 3500 HD and GMC Sierra 3500 HD
  • 6-inch RTS lift with Dirt Logic SS shocks
  • Two holes drilled, no cutting of the front differential housing
  • Allows 18-inch and 20-inch diameter wheels
  • Fits extended and crew cab models only

Description

Overview

The K1051DL is a 6-inch RTS lift with Dirt Logic SS shocks for 2011–2018 Chevrolet Silverado 3500 HD and GMC Sierra 3500 HD. The patent pending brackets keep the torsion bars raised, and this version is built for the GM HD platform.

The unitized bracketry holds the four front compression stops as GM designed, spreading impact loads across a wide section of the frame. The kit fits extended and crew cab models only. Installation needs only two holes drilled and no cutting of the front differential housing.

Minor trimming is needed with each tire and wheel combination. The tire options use 5 3/4-inch backspacing.

Dirt Logic SS shocks come with the kit.

Key features

  • 6-inch lift height, range 5 to 6.99 inches
  • Patent pending torsion bar brackets
  • Four front compression stops retained
  • 1/4-inch steel crossmembers and differential skid plate
  • Allows 18-inch and 20-inch diameter wheels
  • Dirt Logic SS shocks included

Tire fit and wheel choice

The 5 3/4-inch backspacing sets how far the wheel sits from the front fender and lift components. Wheels with a different offset can rub on the lift parts, even when the tire size looks correct. Mount each wheel and turn the steering to full lock before taking the truck onto the road.

Heavy tires and wide wheels increase unsprung weight, which can make steering feel slower and brakes work harder. Check the lug nuts after the first drive and recheck torque at routine service. Balance the wheels after mounting and keep spare tire clearance in mind.

When the tires wear unevenly, look at alignment, ball joints and the shock absorbers before blaming the tires. Rotating the tires at regular intervals keeps wear even across the axle.

Specifications

Brand Fabtech
Part number K1051DL
UPC 674866095700
Lift height 6 inches (range 5 to 6.99 inches)
Suspension type Knuckle, RTS torsion bar brackets
Rear lift method Lift blocks and U-bolts
Cab styles Extended and crew cab
Tire and wheel fit 35/13.50R18 on 18×9, 35/13.50R20 on 20×10, 355/65R18 on 18×9, 37/13.50R20 on 20×10; 5 3/4-inch backspacing
Shocks Dirt Logic SS shocks included

Vehicle fitment

It fits the 2011–2018 Chevrolet Silverado 3500 HD and the 2011–2018 GMC Sierra 3500 HD.

It fits extended and crew cab models only, so standard cab trucks are not covered. Verify the cab style and trim against your truck before buying.

Installation notes

Only two holes need to be drilled, and the front differential housing is not cut. Minor trimming is needed for every tire and wheel combination.

What’s included

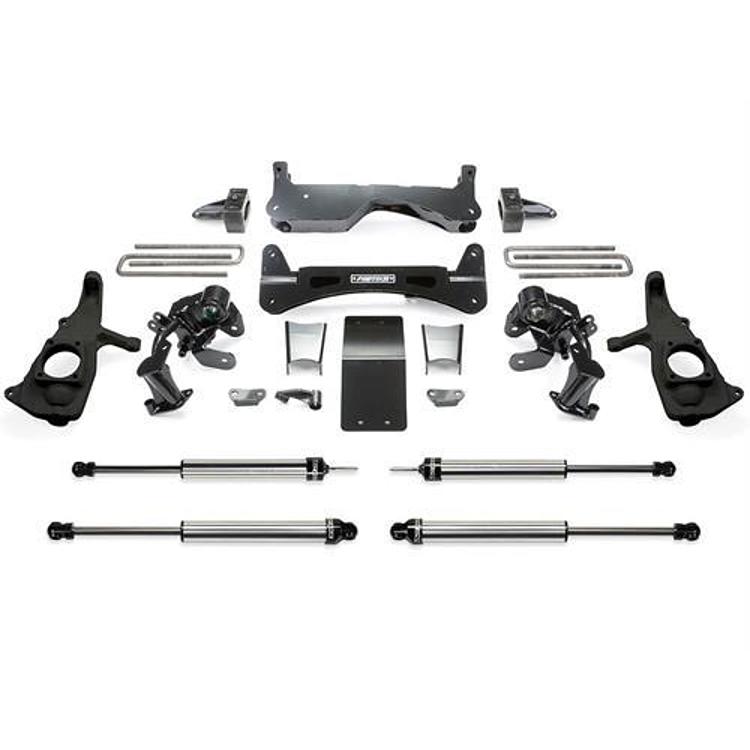

RTS torsion bar brackets, high arched crossmembers, the 1/4-inch steel differential skid plate, rear lift blocks with U-bolts and Dirt Logic SS shocks.

SKU: FABK1051DL Category:

Specification

Shipping weight 346.00 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Chevrolet Silverado 3500 HD2011–2018High Country, LT, LTZ, WT
GMC Sierra 3500 HD2011–2018Base, Denali, SLE, SLT, WT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K1051DL need the differential housing cut?

No. The front differential housing is not cut, and installation needs only two holes drilled. Minor trimming applies to each tire and wheel combination.

Will the K1051DL fit a standard cab 3500?

No. The kit fits extended and crew cab models only, so standard cab trucks are not covered. Verify the cab style before buying.

What wheel sizes does the K1051DL allow?

The kit allows both 18-inch and 20-inch diameter wheels. Tire options include 35/13.50R18, 35/13.50R20, 355/65R18 and 37/13.50R20, with 5 3/4-inch backspacing and minor trimming.

Does the differential need checking after a lift?

Yes. Larger tires increase drivetrain load, so check the front differential fluid level and look for leaks at the seals. Fluid that looks dark or smells burnt should be changed on the truck's regular maintenance schedule.
