Overview
The Pro Comp K4030B is a 2-inch stage 1 spacer lift with ES9000 front and rear shocks. It fits 2005-2007 Ford F-250 Super Duty and F-350 Super Duty models, including the Harley-Davidson Edition and related trims.
The front uses metal coil spring spacers, and the rear uses a block and U-bolt kit. A front trac bar bracket and brake line extension brackets are included. The specifications note that steering correction is not needed for this kit.
Key features
- 2-inch lift, stage 1
- Metal coil spring spacers at the front

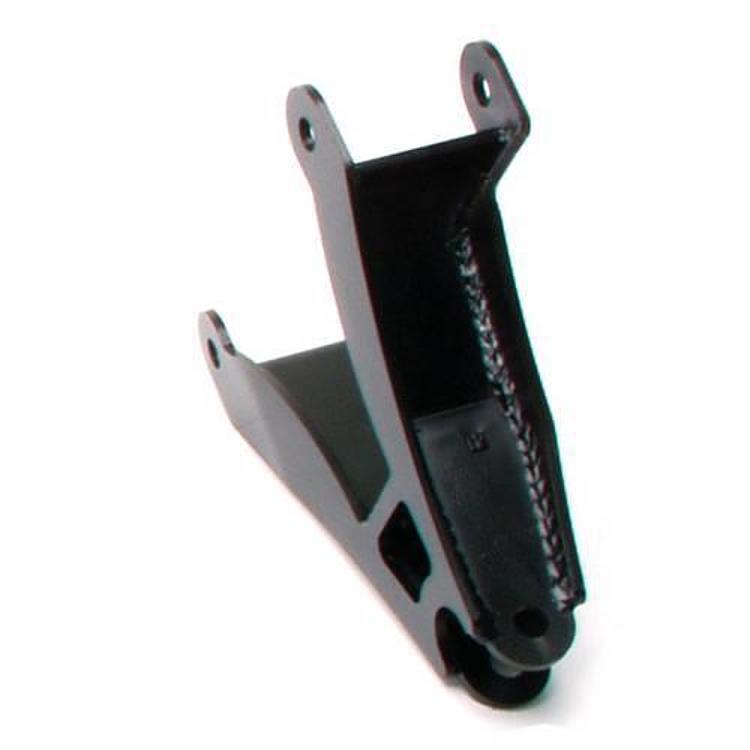

- Front trac bar bracket
- Brake line extension brackets

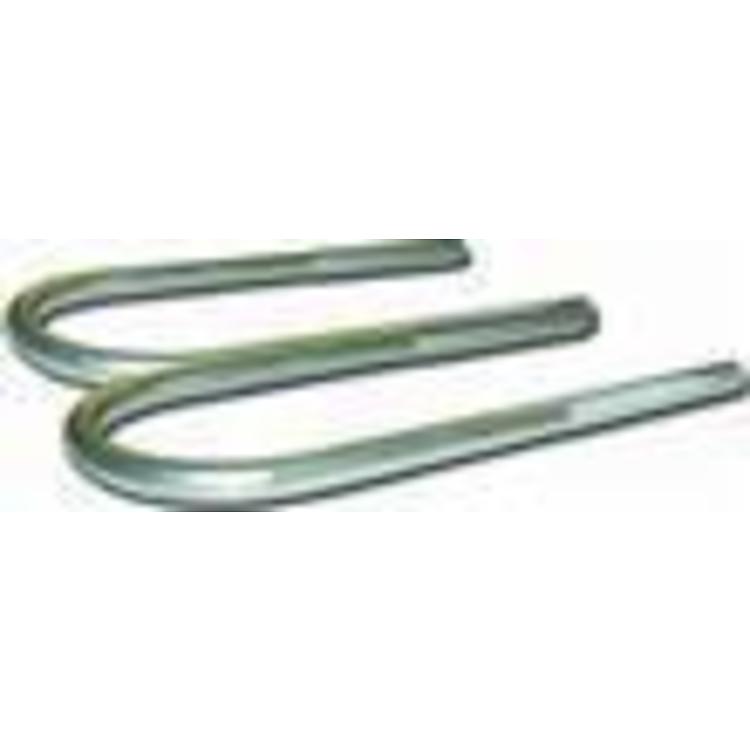

- Rear block and U-bolt kit

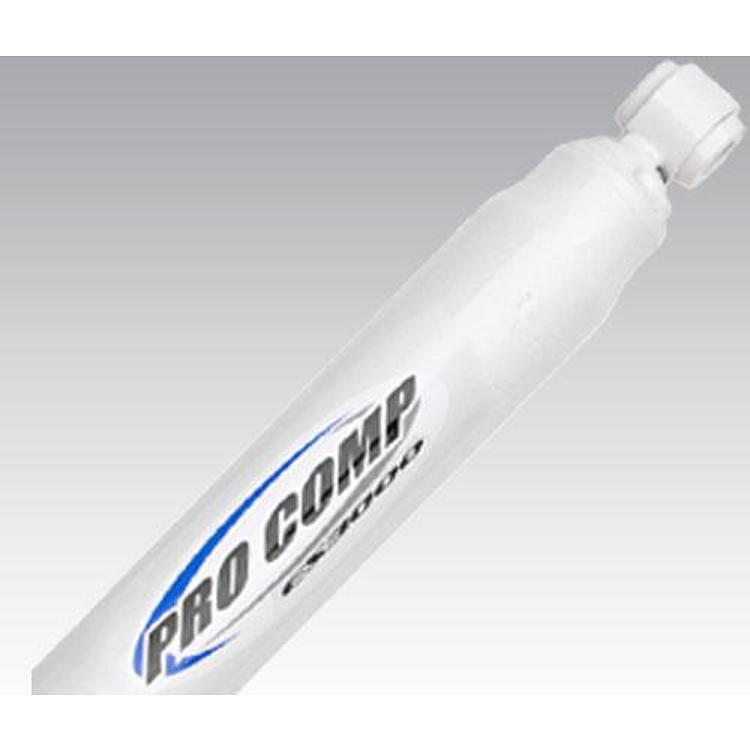

- ES9000 front and rear shocks
Spacer lift considerations
A spacer lift keeps the factory springs in place and adds height, so the ride stays close to stock. Because the stock springs are reused, their condition matters: check for sag, cracks or broken coils before installing spacers. Spacers add load to the upper spring seats, so inspect those mounts too.
Trac bar brackets and brake line extensions usually go in with a spacer kit, because the front moves up and the lines and linkage need room. Look for lines that rub or stretch at full droop. Re-torque fasteners after the first few drives, and recheck front alignment since the geometry shifts slightly with added height.
- Inspect stock springs for sag
- Check brake line extensions at full droop
- Re-torque the trac bar bracket hardware
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4030B |
| UPC | 614901124583 |
| Lift | 2 inches, stage 1 |
| Suspension type | Spacer |
| Front lift | Metal coil spring spacers |
| Rear lift | Block and U-bolt kit |
| Steering correction | Not needed |
| Front shocks | ES9000 |
| Rear shocks | ES9000 |
| Shock boots | Not included |
Vehicle fitment
It fits 2005-2007 Ford F-250 Super Duty and F-350 Super Duty models, including the Harley-Davidson Edition and related trims. Check that your exact trim is covered before buying.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A spacer lift keeps the stock springs in place and adds height, so the front alignment should be checked after installation. Use the brake line extension brackets whenever the lines are lengthened.
What’s included
The kit includes metal coil spring spacers, a front trac bar bracket, brake line extension brackets, a rear block and U-bolt kit and ES9000 front and rear shocks. Shock boots are not included.
