Overview

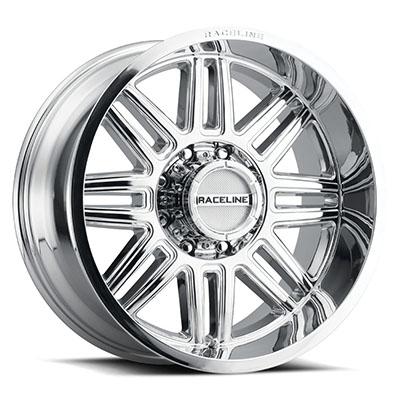

The Raceline Wheels 948C Split is a 17×9 chrome aluminum wheel, part number RLW948C-7908018, with a split spoke face and an 8 on 6.5 bolt pattern. It has a 125 center bore, an offset of 18 and a backspacing of 5.57. Raceline Wheels labels it universal fit, so no specific year, make or model is named.
Offset and backspacing decide where a wheel sits in the wheel well. Offset is the distance from the hub mounting face to the wheel centerline, and backspacing is the distance from that face to the inner lip, which governs brake caliper and suspension clearance. Compare both numbers, along with the bolt pattern and center bore, with your current wheels before choosing this one.
Key features
- Split spoke face in a 17 inch diameter and 9 inch width
- Chrome finish over aluminum construction
- 8 on 6.5 bolt pattern with a 125 center bore
- Offset of 18 and backspacing of 5.57
- Part of Raceline Wheels’ 948 Split series
Chrome finish care
Chrome plating on aluminum needs regular cleaning, because road salt, brake dust and grit can start pitting or peeling if they stay on the surface. Wash with a pH-neutral cleaner and dry the wheel afterward to prevent water spots. Avoid abrasive pads, which can scratch the plating and leave it open to corrosion.
Stone chips are the most common reason chrome wheels fail early. Touching up small chips and inspecting the spoke roots during tire changes can catch problems before they spread. Wheel sealants may add a barrier against grime, but they should be applied to a clean, dry wheel and kept away from the tire tread.
- Wash after salted or muddy drives
- Dry the wheel to prevent water spots
- Inspect for chips during tire rotations
Specifications
| Brand | Raceline Wheels |
|---|---|
| Part number | RLW948C-7908018 |
| Series | 948 Split |
| Wheel diameter | 17 Inches |
| Wheel width | 9 Inches |
| Bolt pattern | 8 on 6.5 |
| Center bore | 125 |
| Offset | 18 |
| Backspacing | 5.57 |
| Style | Split Spoke |
| Finish | Chrome |
| Construction | Aluminum |
Vehicle fitment
This wheel is universal fit, and no year, make or model is identified for it. Match the 8 on 6.5 pattern, 125 center bore and offset 18 to your hub and brake setup first.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Test-fit the wheel on the hub before mounting tires, and confirm the 125 center bore seats correctly. Check the 5.57 backspacing against brake calipers and inner suspension parts, and tighten the lug nuts to the correct torque for your vehicle.
What’s included
Only the wheel itself is covered here. Confirm whether caps, lug nuts and valve stems come with it before ordering.
Not included: Tires and lug hardware should be bought separately.
