Overview

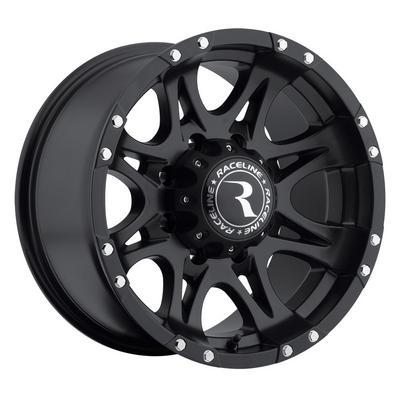

The Raceline Wheels Raptor 981-68012 is a 16×8 aluminum split spoke wheel with a satin black finish and a 5 on 4.5 bolt pattern. Its part number is RLW981-68012, and it carries a 0 offset, a 78 center bore and 4.5 backspacing.
Raceline Wheels presents the Raptor name as part of its consumer wheel range, which it says grew out of performance engineering from off-road racing. The satin black face keeps the look understated. Fitment is universal, so the bolt pattern, offset and center bore are the measurements that decide whether the wheel suits a given hub.
Key features
- Split spoke design in 16 inch diameter and 8 inch width.
- Satin black finish.
- Aluminum construction.
- 5 on 4.5 bolt pattern with a 78 center bore.
- 0 offset and 4.5 backspacing.
- Raptor series from Raceline Wheels.
Split spoke design basics
Split spoke wheels divide the face into separate spokes, which makes brake dust easier to see but harder to reach. Brake dust tends to collect along the inner spoke edges, so a soft brush helps. A satin black finish hides small scratches better than a polished face, though it still needs regular washing with a mild cleaner. Avoid abrasive pads that can dull the coating.
Before mounting, confirm the bolt pattern, center bore and offset match the hub, since universal fit places that responsibility on the buyer. Inspect the wheel for cracks at the spoke joints and seams after rough trail use. Tires should match the wheel width so the bead seats correctly.
Valve stems should be replaced when the tire is changed, since rubber stems age and can leak.
Specifications
| Brand | Raceline Wheels |
|---|---|
| Part number | RLW981-68012 |
| Series | Raptor |
| Wheel diameter | 16 inches |
| Wheel width | 8 inches |
| Offset | 0 |
| Center bore | 78 |
| Backspacing | 4.5 |
| Bolt pattern | 5 on 4.5 |
| Style | Split Spoke |
| Finish | Satin Black |
| Construction | Aluminum |
| Fitment | Universal Fit |
Vehicle fitment
Universal fit means no make, model or year is attached to this wheel. Check the hub for 5 on 4.5 bolts first, then compare the 78 center bore and 0 offset with the wheels currently on the vehicle.
A matching bolt count does not guarantee clearance, so the offset and backspacing should be checked against brakes and fenders. Confirm your vehicle’s year, model and trim before ordering.
What’s included
The wheel is described by its size, bolt pattern and offset.
Not included: Nothing in the stated details adds tires, valve stems or lug hardware, so budget for those separately.
