Overview

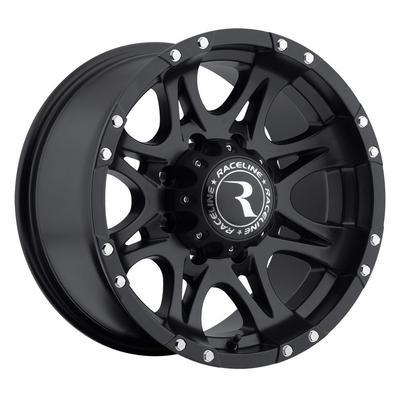

The Raceline Wheels Raptor 981-68050 is a satin black split spoke wheel measuring 16×8, with a 5 on 5 bolt pattern and part number RLW981-68050. A 0 offset, a 78 center bore and 4.5 backspacing define how its mounting face sits.
Raceline & AWC traces its roots to off-road racing, and that heritage carries into this consumer Raptor line. Split spokes and aluminum construction give the wheel its design. With universal fitment, confirm the 5 on 5 pattern against the hub first, then the 78 center bore and 0 offset.
Key features
- 16 inch diameter and 8 inch width split spoke face.
- Satin black finish.
- Aluminum construction.
- 5 on 5 bolt pattern with a 78 center bore.
- 0 offset with 4.5 backspacing.
- Raptor series from Raceline Wheels.
Things to check
A zero offset positions the mounting face at the wheel’s centerline, which moves the tire outward or inward compared with positive or negative offsets. That change affects steering feel, scrub radius and how the tire rubs at full lock, so road and clearance checks are worth doing before the first drive.
The 78 center bore is the hub centering reference. If the hub’s pilot is larger, hub-centric rings can fill the gap so the load goes through the hub instead of the lug nuts. Check hub size before deciding whether rings are needed.
Lug hardware is often replaced with the wheel. Choose lug nuts with a seat that matches the wheel’s holes, and keep the set torqued after the first few drives. Look over the mounting face for scoring from debris during trail use.
Specifications
| Brand | Raceline Wheels |
|---|---|
| Part number | RLW981-68050 |
| Series | Raptor |
| Wheel diameter | 16 inches |
| Wheel width | 8 inches |
| Offset | 0 |
| Center bore | 78 |
| Backspacing | 4.5 |
| Bolt pattern | 5 on 5 |
| Style | Split Spoke |
| Finish | Satin Black |
| Construction | Aluminum |
| Fitment | Universal Fit |
Vehicle fitment
Universal fit is the design for this model, so no specific make, model or year applies. Confirm the 5 on 5 bolt pattern against your hub before comparing center bore, offset and backspacing.
A 5 on 5 pattern must match the hub exactly, and the 0 offset affects how far the wheel sits in the fender. Confirm your vehicle’s year, model and trim before ordering.
What’s included
Only the wheel’s size, fit measurements and finish are described.
Not included: Tires, valves and lug nuts are not part of the stated specifications, so buy them separately if needed.
