Overview

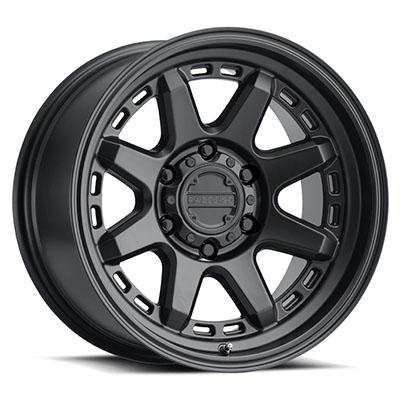

The Raceline Wheels 947B Scout is a 15-inch by 8-inch aluminum spoke wheel in satin black, part number RLW947B-58012-24. Scout is the name of the 947 series, not a vehicle, so fit depends on the 5 on 4.5 bolt pattern, -24 offset, 78 center bore and 3.5 backspacing.
Raceline Wheels describes its wheels as built from the company’s off-road racing experience. This 15-inch model is sold as universal fit, so no specific vehicle is named for it, and the measurements below are the ones to compare against your own hub.
Key features
- 15-inch diameter aluminum spoke design
- 8-inch wheel width on a 5 on 4.5 bolt pattern
- Offset is -24.
- Center bore is 78 and backspacing is 3.5.
- Satin Black finish from the 947 Scout series
Negative offset and brake clearance
A negative offset moves the mounting face outward, so the wheel sits farther out in the fender and away from the hub. That can help tire clearance on the outside, but the inside of the wheel gets closer to brake calipers and suspension parts when backspacing is small. Backspacing is the distance from the mounting face to the inner lip, and a low figure leaves less room behind the wheel.
On a 15-inch wheel the tire is shorter and usually has a taller sidewall, which changes the rolling diameter compared with larger rims. Keep the overall tire diameter close to the original so speedometer and gearing stay accurate. Check brake caliper clearance and suspension travel with a tire mounted before driving, and watch for rub marks after the first few drives.
- Measure caliper clearance behind the spokes
- Keep overall tire diameter close to stock
- Check suspension travel with the tire mounted
- Inspect the inner lip for rub marks
Specifications
| Brand | Raceline Wheels |
|---|---|
| Part number | RLW947B-58012-24 |
| Series | 947 Scout |
| Wheel diameter | 15 inches |
| Wheel width | 8 inches |
| Bolt pattern | 5 on 4.5 |
| Offset | -24 |
| Center bore | 78 |
| Backspacing | 3.5 |
| Style | Spoke |
| Construction | Aluminum |
| Finish | Satin Black |
Vehicle fitment
This wheel is not tied to a specific year, make or model, and it is universal fit. Measure your hub’s bolt pattern, center bore, offset and backspacing against the values above before choosing a wheel for your truck or SUV.
Compare your hub’s bolt pattern and center bore with the values above. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A negative offset changes where the mounting face sits relative to the hub, and backspacing of 3.5 determines inner clearance, so check both against brake calipers, suspension and fenders with your planned tire size before mounting.
What’s included
Only a single wheel is included. Tires, lug nuts and center caps need to be sourced separately.
