Raceline Wheels 947B Scout, 17x8.5 with 6 on 5.5 Bolt Pattern – Satin Black – 947B-7856018

Raceline Wheels

$228.72In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 19, 2026 4:20 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Raceline Wheels 947B Scout, 17 x 8.5 inch aluminum spoke wheel
  • Six-hole 6 on 5.5 bolt pattern with a 107 center bore
  • Offset 18 and backspacing 5.46
  • Satin black finish; part number RLW947B-7856018
  • Universal fit, no vehicle tied to it

Description

Overview

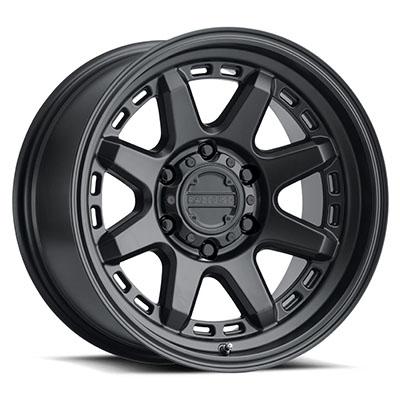

The Raceline Wheels 947B Scout is a 17 x 8.5 inch aluminum spoke wheel in satin black, part number RLW947B-7856018. It has a 6 on 5.5 bolt pattern, an offset of 18 and a 107 center bore, and it is universal fit.

The company describes its consumer wheels as built on off-road racing technology, and the Scout series is part of that consumer lineup. A 6 on 5.5 pattern has six lug holes, so lug nuts and the hub must match that six-hole layout. Offset 18 and backspacing 5.46 position the wheel between the hub and the fender.

Key features

  • Aluminum construction in a 17 x 8.5 inch size
  • Spoke style in satin black
  • Six-hole 6 on 5.5 bolt pattern
  • Offset of 18 with a 107 center bore
  • Backspacing of 5.46
  • Part of Raceline’s 947 Scout series

Six-lug fitment basics

A six-lug wheel depends on the hub having six studs in matching positions, and the lug nuts must match the seat style and thread for the wheel. Five-lug hardware does not substitute, because the hole count and spacing differ and the wheel cannot seat evenly. The 107 center bore should fit the hub, and hub-centric rings help the wheel center on the hub rather than the studs when there is a gap.

Six-lug wheels are often used on heavier trucks and SUVs, where a stable mounting surface matters for towing and off-road loads. Tire choice should match the load and the wheel width, and the offset of 18 affects the position of the tire against the fender and brake assembly. Inspect studs for stretching or damage after installation, and recheck torque after the first drives.

  • Match lug count and seat style exactly
  • Use hub-centric rings if the bore is larger than the hub
  • Check the tire load rating for the intended use
  • Inspect studs for damage at tire changes

Specifications

Brand Raceline Wheels
Part number RLW947B-7856018
Series 947 Scout
Diameter 17 inches
Width 8.5 inches
Offset 18
Center bore 107
Backspacing 5.46
Bolt pattern 6 on 5.5
Style Spoke
Finish Satin Black
Construction Aluminum
Fitment Universal fit

Vehicle fitment

No make, model or year is tied to this wheel. The six-hole 6 on 5.5 pattern is the first filter, followed by the 107 center bore.

A six-lug pattern narrows the hubs this wheel can use, so compare it with your own hub measurements. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Six lug holes need six matching studs and nuts, so five-lug hardware cannot be substituted. Fit the 107 center bore to the hub and use hub-centric rings if the hub is smaller than the bore.

What’s included

This is a wheel only, with no lug nuts or center caps included.

Not included: Tires, six-hole lug nuts and center caps need to be planned separately.

SKU: RLW947B-7856018 Categories: ,

Questions & Answers

How many lug holes does the 947B Scout 17x8.5 have?

It has six lug holes, since its bolt pattern is 6 on 5.5. Lug nuts and studs must match that six-hole layout to seat the wheel correctly.

Are lug nuts included with the 947B Scout 17x8.5?

No lug nuts, center caps or other hardware are included. Plan on six-hole lug nuts or studs that match the 6 on 5.5 pattern.

What offset and center bore does it have?

The offset is 18 and the center bore is 107, with backspacing of 5.46. The center bore is the hole that fits over the hub, and a mismatch must be handled with hub-centric rings.

Can five-lug and six-lug hardware be mixed?

No. Lug nuts and studs must match the hole count and seat style of the hub. Mismatched hardware cannot seat the wheel evenly and can loosen under load.

How often should lug nuts be retightened on a new wheel?

Retighten after the first few drives, then check during routine tire rotations. Loose nuts can cause wobble, clicking or a shifting wheel, so tighten them to the torque your vehicle requires.
