Overview

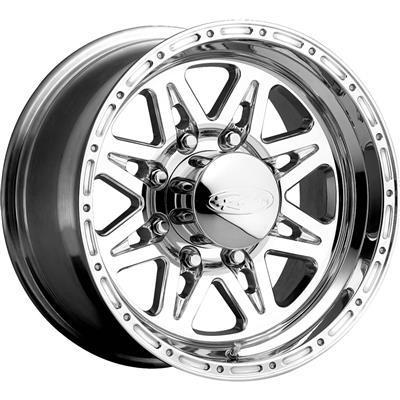

The Raceline Wheels Renegade 8 17×9 is a 17-inch spoke wheel, 9 inches wide, with part number RLW888-79080. It is aluminum with a polished finish and an 8 on 6.5 bolt pattern, and it is a universal fit wheel rather than one built for a named vehicle.
The company traces its consumer wheels back to off-road racing, and this Renegade 8 model is presented as a product of that engineering. The wheel carries a negative offset of -12 and a backspacing of 4.5, which places it further outboard than a zero-offset wheel. No year, make or model is named, and Raceline gives no load rating or weight for this model.
Key features
- 17 inch diameter and 9 inch width
- Polished finish on an aluminum spoke face
- 8 on 6.5 bolt pattern with a center bore of 131
- Negative offset of -12 and backspacing of 4.5
- Part of the 888 Renegade 8 series
- Universal Fit, so the hub measurements decide the match
Negative offset and tire width
A negative offset moves the mounting face outward, so the tire sits farther from the hub than it would on a zero-offset wheel. That changes the load path on the wheel bearings and can affect steering feel, especially when the tire is wide. Before choosing a tire, confirm the wheel and tire combination clears the fender in a full turn and when the suspension compresses.
Wheel runout also matters at this width. A bent or out-of-true wheel can cause vibration, so check it on a balancing machine after mounting. Clean the mating surfaces before installation and recheck torque after the first few drives.
- Test-fit with the exact tire you plan to run
- Check clearance at full steering lock and under compression
- Balance the wheel after mounting
- Clean the hub face before installing the wheel
Specifications
| Brand | Raceline Wheels |
|---|---|
| Part number | RLW888-79080 |
| Series | 888 Renegade 8 |
| Style | Spoke |
| Finish | Polished |
| Construction | Aluminum |
| Wheel diameter | 17 inches |
| Wheel width | 9 inches |
| Offset | -12 |
| Backspacing | 4.5 |
| Center bore | 131 |
| Bolt pattern | 8 on 6.5 |
Vehicle fitment
This wheel carries no vehicle list, and Raceline’s Universal Fit designation means the match depends on your hub. Compare the 8 on 6.5 bolt pattern, center bore of 131, offset of -12 and backspacing of 4.5 with your hub, and check clearance to brakes and suspension before mounting.
No truck, year or model is attached to this wheel, so the hub measurements decide the match. Compare the 8 on 6.5 bolt pattern, center bore of 131, offset of -12 and backspacing of 4.5 with your hub, and check clearance to brakes and suspension before mounting. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A negative offset pushes the mounting face outward, which moves the tire toward the fender and can change steering feel and clearance. Backspacing of 4.5 measures from the mounting face to the back edge of the wheel, showing how much room is left for calipers and suspension parts. Test-fit with the exact tire you intend to run before final torque and road use.
What’s included
The wheel is sold alone. Valve stems, center caps and lug hardware are not included, and tires are a separate purchase.
Not included: tires, and any hub-centric rings your hub calls for.
