Pro Comp 2.5 Inch Lift Kit with ES3000 Shocks – K3069

Pro Comp Suspension

Shop Jeep CJ5 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 2.5-inch stage 1 leaf spring lift with ES3000 front and rear shocks
  • Fits 1972–1975 Jeep CJ5 Base and Renegade models
  • Wheel width 8 to 12 inches, backspace 3.25 to 4.5 inches
  • Max tire size 32×11.50 on 15-inch or larger wheels

Description

Overview

The Pro Comp K3069 is a 2.5-inch stage 1 leaf spring lift with ES3000 shocks, designed for the 1972–1975 Jeep CJ5 Base and Renegade trims. The front uses leaf springs and the rear uses springs with U-bolts.

The shocks are ES3000 at both ends, and the shock boots are sold separately. The part is marked as a rear position kit. The maximum tire size is 32×11.50, and the wheels should be 15 inches or larger with a width of 8 to 12 inches.

Key features

  • 2.5-inch stage 1 lift
  • Front leaf springs
  • Rear springs and U-bolts
  • ES3000 front and rear shocks
  • Shock boots sold separately
  • Backspace range 3.25 to 4.5 inches

Before you buy

Shock boots are an easy part to forget on a CJ5 build. Since the ES3000 shocks run exposed in the rear position, grit and water reach the piston rods quickly on dirt roads. Plan for boots or sleeves before the truck is driven hard, and choose a set sized for the shock length you measure after the springs are seated.

A 2.5-inch stage 1 kit works best when the rest of the truck keeps pace. Check the transfer case linkage, the steering box mounts and the brake hoses, since a change in ride height moves each of them. Original CJ bump stops and shackles are often worn after decades, and replacing them in the same job saves a second lift.

For tires, a 32×11.50 size is the largest this kit handles, so measure your wheels’ backspace before mounting anything.

Specifications

Brand Pro Comp Suspension
Part number K3069
UPC 614901123241
Lift 2.5 inches, stage 1
Suspension type Leaf spring
Front lift Leaf springs
Rear lift Springs and U-bolts
Front shocks ES3000
Rear shocks ES3000
Shock boots Sold separately
Position Rear
Max tire size 32×11.50
Wheel size range 15 inches or larger
Wheel width range 8 to 12 inches
Min-max backspace 3.25 to 4.5 inches

Vehicle fitment

It fits 1972–1975 Jeep CJ5 Base and Renegade models. Later CJ generations and the Wrangler are outside its fit range.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Leaf spring lifts change the rear axle pinion angle, so check the driveline angles and the U-bolt tightness once the truck has been driven. Plan the shock boots before installation because they are sold separately.

What’s included

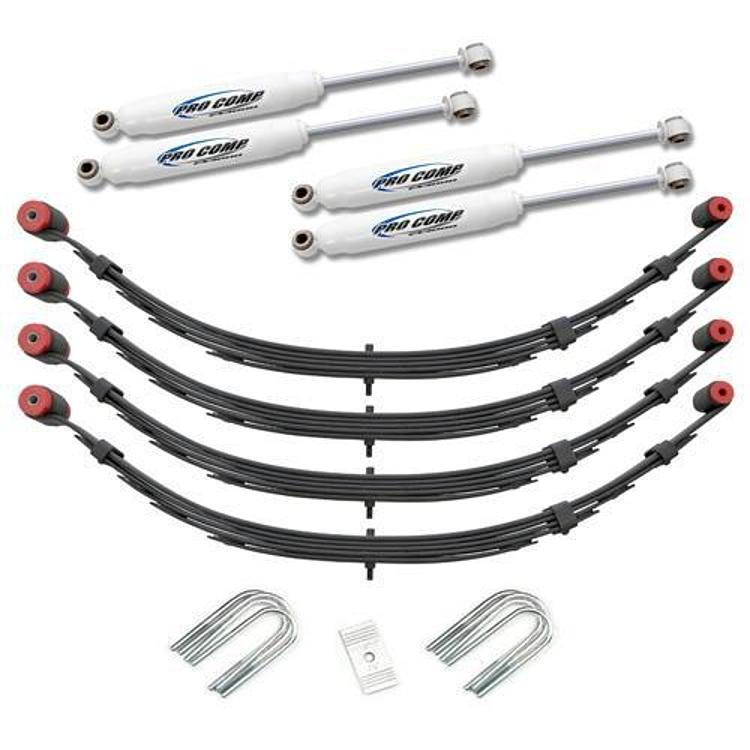

The kit includes front leaf springs, rear springs and U-bolts, and ES3000 front and rear shocks. Shock boots are sold separately.

SKU: EXPK3069 Category:

Specification

Shipping weight 141.80 lbs
Package dimensions 48.00 × 48.00 × 48.00 in
brands

Fitment

VehicleYearsTrims
Jeep CJ51972–1975Base, Renegade

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Are shock boots included with the K3069?

No. The shock boots are sold separately, so they must be bought as an extra if they are wanted for the ES3000 shocks.

Does the K3069 fit a 1974 Jeep CJ5?

Yes. It fits 1972–1975 Jeep CJ5 Base and Renegade models, which includes 1974. Confirm the trim is Base or Renegade before ordering.

What tire size works with the K3069?

The maximum tire size is 32x11.50, and the wheel size range is 15 inches or larger. The wheel width range is 8 to 12 inches with a backspace of 3.25 to 4.5 inches.

Why do leaf spring CJs need extra care with exposed shocks?

Exposed shock rods collect dirt and moisture on trails, which can wear the seals. Boots or sleeves limit that contact. Wipe the rods after muddy runs and inspect the mounting bushings at each service.
