Pro Comp 6″ Lift Kit with PRO-M Shocks – K1175M

Pro Comp Suspension

Shop GMC Sierra 1500 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 2019 to 2021 Chevrolet Silverado 1500 and 2019 to 2022 GMC Sierra 1500, plus the 2022 Sierra 1500 Limited
  • 6-inch stage 1 lift with PRO-M shocks
  • Designed for 35-inch tires with 20-inch or larger wheels
  • Do not use on several factory-equipped trims

Description

Overview

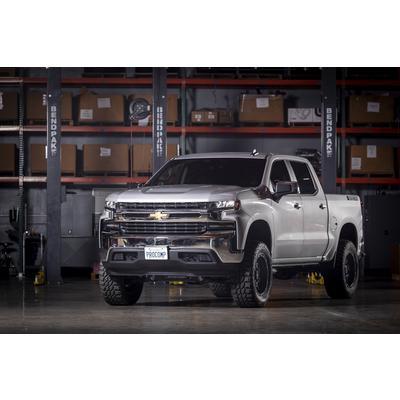

The Pro Comp 6-inch Lift Kit with PRO-M Shocks, part number EXPK1175M (kit K1175M), is a stage 1 suspension lift for the 2019 to 2021 Chevrolet Silverado 1500 and the 2019 to 2022 GMC Sierra 1500, plus the 2022 Sierra 1500 Limited.

The 2019 GM 1500 trucks use a new chassis design, and this 6-inch kit is built for 20-inch or larger wheels with room for 35-inch all-terrain tires. Extended steering knuckles keep the factory steering geometry, and upper strut spacers keep the factory-tuned struts for a ride close to stock.

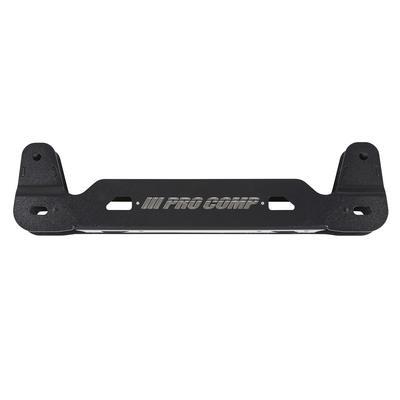

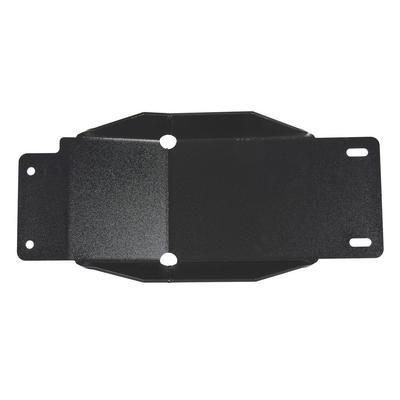

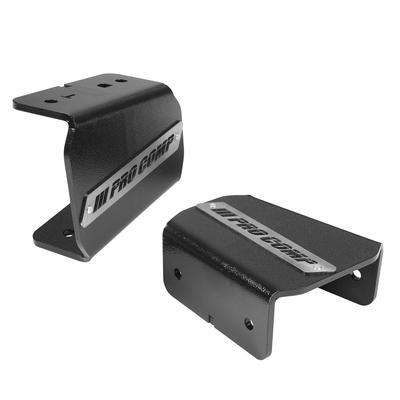

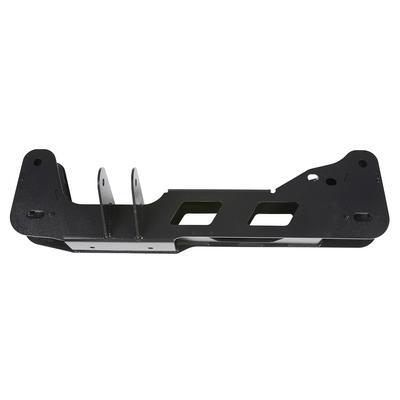

The kit uses front lower crossmembers and a differential skid plate made from 3/16-inch steel, which Pro Comp describes as adding chassis strength and protecting the front differential. The rear uses block or spacer lift components, with a block and U-bolt setup. PRO-M shocks are listed at the front and the rear, and they are included with the kit.

Key features

  • 6-inch stage 1 suspension lift

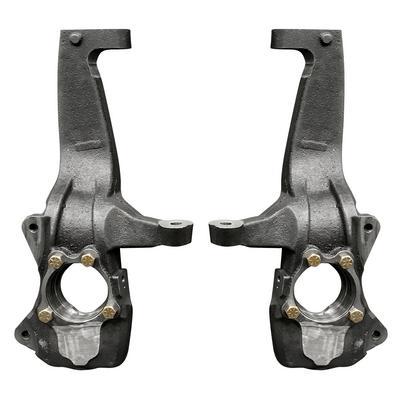

  • Extended steering knuckles that keep factory steering geometry
  • 3/16-inch steel front lower crossmembers and differential skid plate

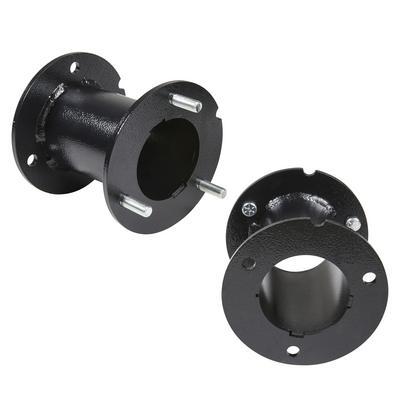

  • Upper strut spacers that keep the factory-tuned struts
  • PRO-M shocks at the front and rear, included

Checking the factory suspension first

Before buying a lift for a new-generation full-size pickup, confirm the factory suspension package. Some trims ship with a factory lift or electronic ride control, and those can change how a kit fits and rides. Dealer records or the build sheet can answer this quickly and save a return trip.

Larger tires are the main reason to think about clearance. Full steering lock, suspension compression and wheel offset all affect whether a tire rubs. Extended steering knuckles and strut spacers help keep geometry and ride closer to stock, but the steering system, brake lines and driveline should still be checked after installation.

Long-term care includes torque checks on new hardware, shock inspections and periodic alignment. Heavier tires add load to wheel bearings and ball joints, so listen for noise and check for play as the truck ages.

  • Confirm the factory suspension package before ordering
  • Check tire clearance at full steering lock
  • Inspect brake lines and flex hoses after installation
  • Recheck alignment after the first few drives

Specifications

Brand Pro Comp Suspension
Part number EXPK1175M
Kit code K1175M
Suspension type Lift kit, stage 1
Lift height 6 inches stage 1; range 6 to 7 inches
Rear lift method Block or spacer

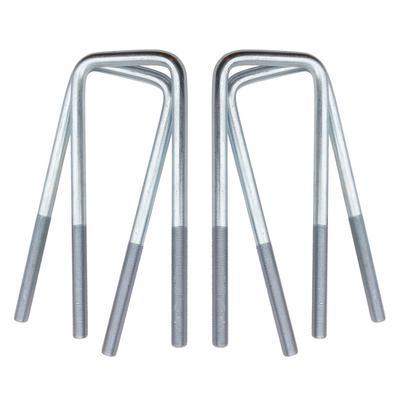

Rear lift component Block and U-bolt
Shocks included Yes
Front shocks PRO-M
Rear shocks PRO-M
Fit type Direct fit

Vehicle fitment

It fits 2019 to 2021 Chevrolet Silverado 1500 in the Custom, LT, LTZ, RST, SSV and WT versions, 2019 to 2022 GMC Sierra 1500 in the AT4, AT4X, Base, Denali, Denali Ultimate, Elevation, Pro, SLE and SLT versions, and the 2022 GMC Sierra 1500 Limited.

Model years 2018 and earlier and 2023 and newer are outside its fitment. It is not for Chevrolet Custom and LT Trail Boss models with a 2-inch factory suspension lift, GMC Denali trucks with Adaptive Ride Control, or GMC AT4 trucks with a 2-inch factory lift. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Several factory-equipped trims are excluded, so confirm the factory suspension package before starting the install, since the excluded trucks are specific.

What’s included

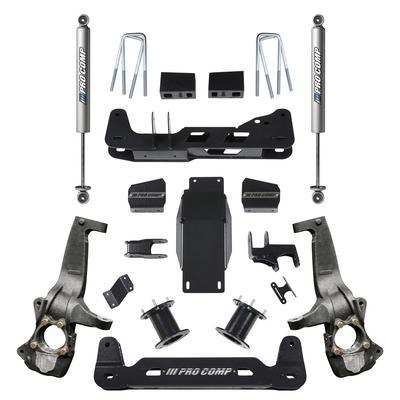

The 6-inch stage 1 lift kit with PRO-M front and rear shocks, the extended steering knuckles, the front crossmembers and differential skid plate, and the upper strut spacers.

SKU: EXPK1175M Categories: ,

Fitment

VehicleYearsTrims
Chevrolet Silverado 15002019–2021Custom, LT, LTZ, RST, SSV, WT
GMC Sierra 15002019–2026AT4, AT4X, Base, Denali, Denali Ultimate, Elevation, Pro, SLE, SLT
GMC Sierra 1500 Limited2022AT4, Denali, Elevation, Pro, SLE, SLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Pro Comp EXPK1175M fit a 2020 GMC Sierra 1500 AT4?

Yes. The kit fits 2019 to 2026 GMC Sierra 1500 trucks in the AT4 version. It is not for the GMC AT4 with a 2-inch factory lift, so confirm the factory suspension before ordering.

Is it designed for 35-inch tires?

Yes. The kit is engineered to clear 35-inch all-terrain tires when used with wheels of 20 inches or larger. Check your wheel size and offset before buying tires.

Does it fit a 2019 Chevrolet Silverado 1500 LT?

Yes. The list includes the 2019 to 2021 Chevrolet Silverado 1500 in the LT and LTZ versions. Confirm the trim and the factory suspension package before ordering.

Do large tires need a re-gear?

Not always. Larger tires change effective gearing, which can affect acceleration and fuel use. Some owners choose to re-gear, while others accept the change. Check whether your driving needs make the change worth the cost.
