Overview
The Pro Comp K5073B is a 6-inch Stage 1 knuckle-type lift kit with ES9000 shocks for the 2005–2011 Toyota Tacoma. The front uses a drop crossmember, strut spacers and steering knuckles, and the rear is lifted with a block and U-bolt kit with add-a-leafs.
The kit includes differential drop brackets and sway bar drop brackets. Front shocks are re-used OEM units, and the ES9000 shock name refers to the rear shocks in the package.
Key features
- 6-inch lift height from a Stage 1 kit
- Drop crossmember
- Strut spacers and steering knuckles
- Differential drop brackets
- Sway bar drop brackets
- Block and U-bolt rear lift with add-a-leafs
Drop crossmember setup
A drop crossmember lowers the front mounting point of the suspension to reposition the body, and it works with strut spacers and steering knuckles to set the front geometry. Because the front components change together, alignment and driveline angles should be checked after the install rather than assumed to be correct.
Differential drop brackets and sway bar drop brackets reposition the axle and sway bar relative to the frame. The axle position affects pinion angle, so check for vibration and joint wear during the first drives. The rear block and U-bolt lift with add-a-leafs should be retightened after the first few drives as the spring pack settles.
Routine inspection matters on a lifted Tacoma. Look for cracked welds on the crossmember, loose bolts at the strut spacers, and wear in the steering joints.
- Check alignment after installation
- Measure pinion and driveline angles
- Retighten rear U-bolts after the first drives
- Inspect crossmember welds regularly
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K5073B |
| UPC | 614901207439 |
| Lift height | 6 inch (lift height range 5 to 6.99 inches) |
| Lift kit stage | Stage 1 |
| Suspension type | Knuckle |
| Front control | Drop crossmember, strut spacers and steering knuckles |
| Rear lift | Lift blocks, U-bolts and add-a-leafs |
| Front shocks | Re-use OEM (the product name cites ES9000 shocks) |
| Rear shocks | ES9000 |
Vehicle fitment
It fits the 2005–2011 Toyota Tacoma in the Base and Pre Runner versions.
The list covers the 2005 through 2011 Tacoma model years only. The 2004 and earlier trucks and the 2012 and newer generation are not included. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The drop crossmember and steering knuckles change the front geometry, so have the alignment checked and the driveline angles measured after the install.
What’s included

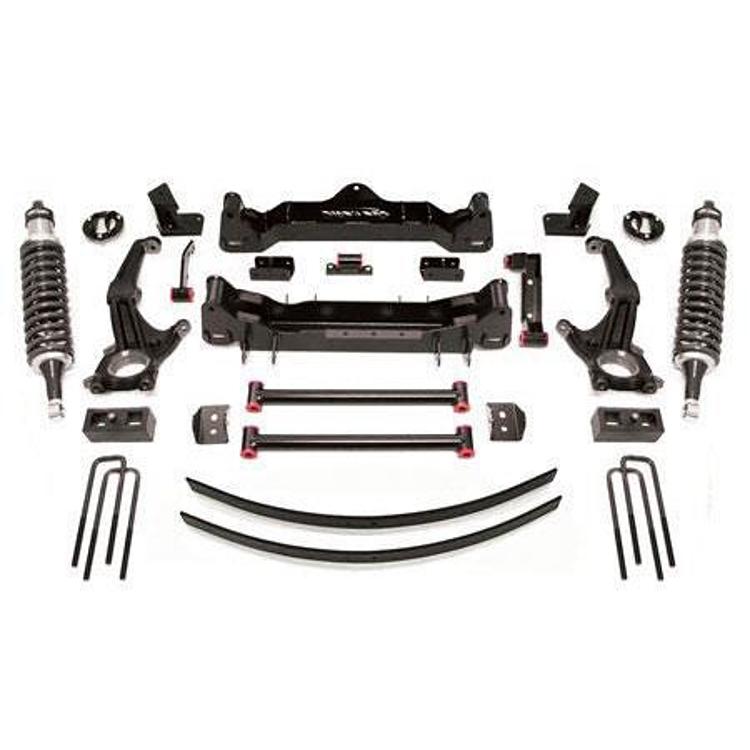

The kit includes the drop crossmember, strut spacers, steering knuckles, differential drop brackets, sway bar drop brackets, the block and U-bolt rear lift with add-a-leafs, and ES9000 rear shocks.
