Pro Comp 4″ Stage I Lift Kit with PRO-X Shocks – K1020T

Pro Comp Suspension

Shop Chevrolet K1500 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 1987 to 1992 Chevrolet and GMC Blazer, K1500 and V1500 models
  • 4-inch stage 1 lift with ES3000 front and rear shocks
  • Tire size of 33 inches
  • Lift height range of 4 to 5.5 inches

Description

Overview

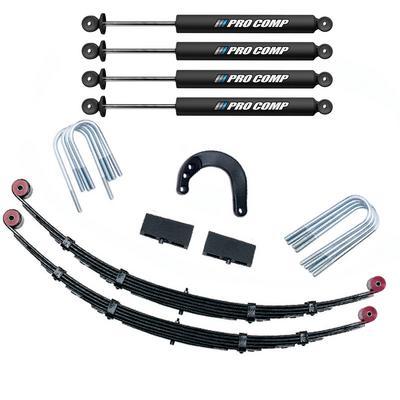

The Pro Comp 4-inch Stage I Lift Kit with PRO-X Shocks, part number EXPK1020T (kit K1020T), is a stage 1 suspension lift for 1987 to 1992 Chevrolet and GMC trucks and Blazer models. It fits the Chevrolet Blazer, K1500, V10 and V1500 Suburban, along with the GMC Jimmy, K1500 and V1500 versions.

The kit lifts the truck 4 inches at stage 1 and carries a listed lift height range of 4 to 5.5 inches. Pro Comp lists 33 inches as the tire size. The back of the truck is raised with a block or spacer and a block and U-bolt component. ES3000 shocks are listed at the front and the rear, and they are included.

Key features

  • 4-inch stage 1 suspension lift
  • ES3000 front and rear shocks, included
  • Block or spacer rear lift
  • Tire size of 33 inches
  • Lift height range of 4 to 5.5 inches

Tuning the stance after the lift

A lift changes how the truck sits, so the way it rolls, steers and brakes can feel different on the first few drives. Taller trucks move their center of gravity upward, which makes quick direction changes feel less planted. Tires, shocks and steering components all influence how much of that change is noticeable.

Off-road use puts extra stress on the lift hardware, mounting points and driveline. Brake lines, fuel lines and wiring should be routed with enough slack to handle full suspension travel. A shop can check the setup against the vehicle’s specification and advise on any extra parts that are often replaced during the same job. Keep a record of the torque values used so the fasteners can be checked on a regular schedule.

  • Check brake line slack at full travel
  • Inspect transfer case mounts after off-road use
  • Retorque the hardware after the first few drives

Specifications

Brand Pro Comp Suspension
Part number EXPK1020T
Kit code K1020T
Suspension type Lift kit, stage 1
Lift height 4 inches stage 1; range 4 to 5.5 inches
Tire size 33 inches
Rear lift method Block or spacer
Rear lift component Block and U-bolt
Shocks included Yes
Front shocks ES3000
Rear shocks ES3000
Fit type Direct fit

Vehicle fitment

It fits the 1987 to 1991 Chevrolet Blazer, the 1988 to 1992 Chevrolet K1500, the 1987 Chevrolet V10, the 1987 to 1988 and 1989 to 1991 Chevrolet V1500 Suburban, the 1987 to 1991 GMC Jimmy, the 1988 to 1991 GMC K1500, the 1987 GMC V1500 and the 1987 to 1991 GMC V1500 Suburban.

The list does not include 1986 and earlier models or 1992 and later GMC K1500 trucks. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The rear block or spacer changes the rear height, so measure front and rear after installation and have the alignment checked.

What’s included

The 4-inch stage 1 lift kit with ES3000 front and rear shocks.

SKU: EXPK1020T Categories: ,

Fitment

VehicleYearsTrims
Chevrolet Blazer1987–1991Custom Deluxe, Scottsdale, Silverado
Chevrolet K15001988–1992Cheyenne, Scottsdale, Silverado, Sport, WT
Chevrolet V101987Custom Deluxe, Scottsdale, Silverado
Chevrolet V10 Suburban1987–1988Custom Deluxe, Scottsdale, Silverado
Chevrolet V1500 Suburban1989–1991Scottsdale, Silverado
GMC Jimmy1987–1991Base, Sierra Classic
GMC K15001988–1991Sierra, Sierra SLE, Sierra SLX
GMC V15001987Base, High Sierra, Sierra Classic
GMC V1500 Suburban1987–1991Base, High Sierra, SLE, Sierra Classic

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Pro Comp K1020T fit a 1990 Chevrolet K1500?

Yes. It fits 1988 to 1992 Chevrolet K1500 models, and 1990 falls within that range. Confirm the trim before ordering.

Is a V1500 Suburban included?

Yes. The list includes the 1987 to 1988 and 1989 to 1991 Chevrolet V1500 Suburban models, along with the GMC V1500 Suburban from 1987 to 1991.

What tire size does it list?

Pro Comp lists 33 inches as the tire size for this kit. The rear uses a block or spacer with a block and U-bolt component, and ES3000 shocks are included.

How can I tell when the shocks need replacing?

Look for oil on the shock body, a bouncy ride after bumps and cupped tire wear. Inspect the shock mounts and bushings at each service, because a lift changes the angle the shock works at.
