Pro Comp PRO-X Twin Tube Shock Absorber – 928001B

Pro Comp Suspension

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 2007–2013 Chevrolet Avalanche and Silverado 1500 and GMC Sierra 1500
  • Also fits 2007 Silverado and Sierra 1500 Classic
  • 28.04-inch extended length, 16.54-inch collapsed length
  • Loop upper and lower mounts
  • Twin tube design with 10-stage velocity sensitive valving

Description

Overview

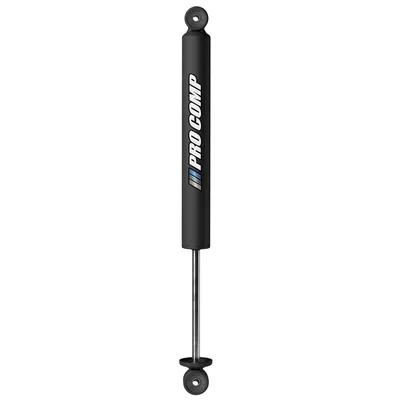

The Pro Comp 928001B is a PRO-X twin tube rear shock absorber for the 2007–2013 Chevrolet Avalanche and Silverado 1500 and the 2007–2013 GMC Sierra 1500. It also covers the 2007 Silverado 1500 Classic and 2007 Sierra 1500 Classic. It has a 28.04-inch extended length and a 16.54-inch collapsed length.

The PRO-X is a general-purpose twin tube design for trucks that see mostly paved roads with occasional off-road driving. Its 10-stage velocity sensitive valving is meant to handle a range of road conditions, and the 1-3/8-inch nylon banded piston and 5/8-inch chrome hardened shaft are the core working parts of the shock.

Both mounts are loop eyes, so the shock can be compared with the existing brackets by eye size and length. The 2.0-inch body is finished in black powder coat, and the gas charge is nitrogen stabilized. The optional shock boot is not part of the shock.

Key features

  • Twin tube design for general-purpose use
  • 10-stage velocity sensitive valving
  • 1-3/8-inch nylon banded piston
  • 5/8-inch chrome hardened shaft
  • Loop eyes at both ends
  • Black powder-coated finish

Loop eyes and mounting

Loop eyes pivot on a bushing or bolt at each end, so the shock works through a small arc as the axle moves. When swapping shocks, compare the eye diameter and bushing thickness with the old unit before ordering, since a mismatched bushing can bind or rattle. Worn rubber bushings are a common source of clunking that owners sometimes blame on the shock itself.

Pickups that tow or carry heavy loads often wear shocks sooner, so inspect them every few oil changes. Look for leaks down the body, a loose eye, or a rear end that keeps bobbing after bumps. Replacing rear shocks alongside a worn suspension bushing set helps avoid uneven ride height.

  • Check eye bushings for cracks
  • Look for oil on the shock body
  • Replace in pairs for even damping

Specifications

Brand Pro Comp Suspension
Part number 928001B
Shock series PRO-X
Shock type Twin tube, gas charged (nitrogen stabilized)
Position Rear
Extended length 28.04 in
Collapsed length 16.54 in
Body diameter 2.0 in
Piston 1-3/8 in nylon banded
Shaft 5/8 in chrome hardened
Upper mount Loop
Lower mount Loop
Finish Black powder coat
Boot Optional, not included

Vehicle fitment

It fits the 2007–2013 Chevrolet Avalanche in the Black Diamond LS, Black Diamond LT, Black Diamond LTZ, LS, LT and LTZ trims, the 2007–2013 Silverado 1500 in the Hybrid, LS, LT, LTZ, WT and XFE trims, and the 2007–2013 GMC Sierra 1500 in the Denali, Hybrid, SL, SLE, SLT, WT and XFE trims. The 2007 Classic versions of the Silverado and Sierra 1500 are also covered.

Silverado and Sierra 1500 models from 2014 onward, and the 2500 and 3500 trucks, are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Check the loop eyes against the existing bracket for your truck, and confirm the 28.04-inch extended length is right for your suspension height. Check clearance at full droop and at full compression before driving.

What’s included

One rear PRO-X shock with loop eyes at both ends. The boot is an optional item.

Not included: the optional boot.

Fitment

VehicleYearsTrims
Chevrolet Avalanche2007–2013Black Diamond LS, Black Diamond LT, Black Diamond LTZ, LS, LT, LTZ
Chevrolet Silverado 15002007–2013Hybrid, LS, LT, LTZ, WT, XFE
Chevrolet Silverado 1500 Classic2007Hybrid, LS, LT, SS, WT
GMC Sierra 15002007–2013Denali, Hybrid, SL, SLE, SLT, WT, XFE
GMC Sierra 1500 Classic2007Denali, Hybrid, SL, SLE, SLT, WT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the 928001B fit a 2007 GMC Sierra 1500 Classic?

Yes. The 2007 GMC Sierra 1500 Classic is covered in several trims, so a 2007 Classic truck fits this shock.

Does the 928001B fit a 2014 Chevrolet Silverado 1500?

No. Silverado 1500 coverage runs from 2007 to 2013, so 2014 models are outside the fit. Confirm the year before ordering.

What are the extended and collapsed lengths of the 928001B?

The extended length is 28.04 inches and the collapsed length is 16.54 inches. Compare both figures with your installed suspension before ordering a replacement.

Can this shock be used with a leveling kit?

Check the extended and collapsed lengths against the new ride height first. A leveling kit changes how far the shock extends, so confirm there is room at full droop before installing.
