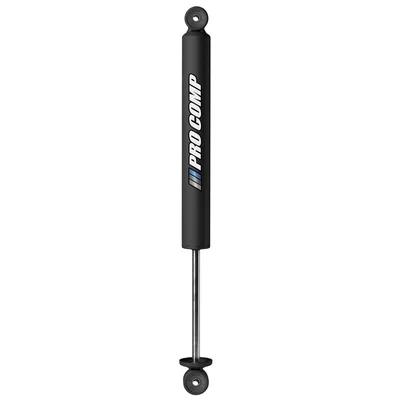

Pro Comp PRO-X Twin Tube Shock Absorber – 922506B

Pro Comp Suspension

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp EXP922506B PRO-X twin tube shock, sold individually
  • Fits 1975–1986 Chevrolet C30, 1977–1986 K30, 1979–1986 GMC C3500 and K3500, and 1975–1986 Toyota Pickup
  • Gas charged and nitrogen stabilized, with 10 stage velocity sensitive valving
  • Shock boot sold separately

Description

Overview

The Pro Comp EXP922506B is a PRO-X twin tube shock absorber, sold individually. It fits 1975–1986 Chevrolet C30, 1977–1986 Chevrolet K30, 1979–1986 GMC C3500 and K3500, and 1975–1986 Toyota Pickup models.

The PRO-X is intended for vehicles that see mostly paved roads with occasional off-road use. It is a gas charged, nitrogen stabilized design with 10 stage velocity sensitive valving, a 1-3/8 inch nylon banded piston and a 5/8 inch chrome hardened shaft.

A twin tube shock has a working piston inside a pressure tube, with an outer reserve tube around it. Gas charging is the usual way to limit fluid foaming in a shock of this type under heavy use, which is why the charge is listed on the specifications.

Key features

  • PRO-X twin tube design
  • 10 stage velocity sensitive valving
  • Nitrogen stabilized, gas charged
  • 1-3/8 inch nylon banded piston
  • 5/8 inch chrome hardened shaft
  • Black powder coat finish

Understanding twin tube shocks

A twin tube shock uses two concentric tubes, and the space between them holds fluid that flows as the piston moves. The design is common on trucks because it handles heat and sustained use reasonably well and can be serviced in principle. Damping depends on how fluid moves through the valves, so the valve layout and the fluid condition both shape how the ride feels over time.

Gas charging helps keep the fluid from foaming when a shock works hard, which can otherwise reduce damping. For this style of shock, the mount ends, body length and piston size should all be checked against the shock being replaced. Leaks, dented bodies and worn bushings are the usual reasons to replace a twin tube unit early.

Specifications

Brand Pro Comp Suspension
Part number EXP922506B
Series PRO-X
Shock type Twin tube, gas charged
Extended length 22.5–22.6 inch
Collapsed length 13.7 inch
Travel 8.92 inch
Body diameter 2.0 inch
Piston 1-3/8 inch nylon banded
Shaft 5/8 inch chrome hardened
Finish Black powder coat
Mounts Loop or eyelet; confirm before ordering
Sold as Individually
Shock boot Sold separately

Vehicle fitment

It fits the 1975–1986 Chevrolet C30, the 1977–1986 Chevrolet K30, the 1979–1986 GMC C3500 and K3500, and the 1975–1986 Toyota Pickup. Confirm fit for your vehicle’s year, model and trim before ordering.

Other Chevrolet, GMC and Toyota years and models are not on the list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Confirm the mount ends on the shock you are replacing before ordering. Match the 22.5–22.6 inch extended length and 13.7 inch collapsed length to that shock as well.

What’s included

One shock absorber. Not included: the shock boot, which is sold separately.

Fitment

VehicleYearsTrims
Chevrolet C301975–1986Cheyenne, Custom, Custom Deluxe, Deluxe, Scottsdale, Silverado
Chevrolet K301977–1986Cheyenne, Custom, Custom Deluxe, Deluxe, Scottsdale, Silverado
GMC C35001979–1986Base, High Sierra, Sierra Classic, Sierra Grande
GMC K35001979–1986Base, High Sierra, Sierra Classic, Sierra Grande
Toyota Pickup1975–1986Base, Base Turbo, DLX, DLX Turbo, SR5, SR5 Turbo

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the EXP922506B fit a 1985 Toyota Pickup?

Yes. It fits 1975–1986 Toyota Pickup models, so a 1985 model falls within that range. Confirm your model and year before ordering.

Is a shock boot included?

No. The shock boot is sold separately from the shock, which is itself sold individually, so the boot is a separate item for your vehicle.

Is the shock gas charged?

Yes. It is gas charged and nitrogen stabilized, with a twin tube design suited to mostly paved roads with occasional off-road use.

Why does a shock leak fluid?

Seal wear and damage to the piston rod are the usual causes. Oil on the outside of the body means the seal has failed, and the shock will no longer control motion well. Replace the unit rather than trying to refill it.
