Overview

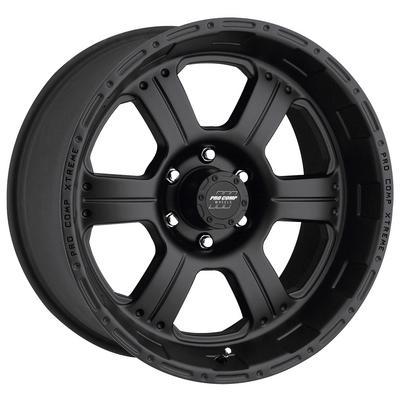

The Pro Comp 89 Series Kore 17×9 wheel (part 7089-7983) is a 17-inch, 9-inch wide spoke wheel in flat black with a 6 on 5.5 bolt pattern. Pro Comp Alloy Wheels makes it from aluminum using low-pressure casting.
The wheel combines style, light weight and a durable finish. The 89 Series comes in black, black powder coat chrome and polished, and this part is flat black. The high offset provides brake clearance on performance trucks and sport utility vehicles.
Key features
- 17-inch diameter and 9-inch width
- Spoke style in a flat black finish
- Aluminum wheel made with low-pressure casting
- High offset design for brake clearance, per the maker
- 6 on 5.5 bolt pattern, center bore 108 and offset -6
Offset and clearance
Offset is measured from the wheel’s mounting face to its centerline, and it sets how far the tire sits inside or outside the fender. A wheel with a different offset than stock can change clearance to the suspension and brake parts, even when the bolt pattern matches exactly. Measure the space behind the spokes before choosing a tire size, since wider tires need more room on both sides.

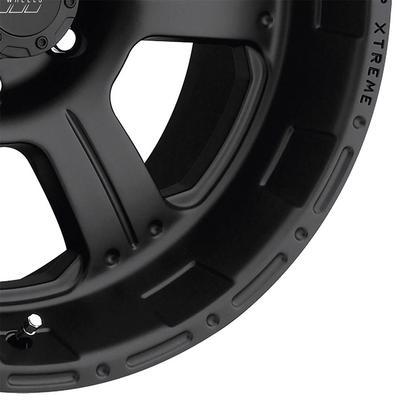

Spoke designs leave openings that help with brake inspection and cleaning, but grime can collect behind the spokes after trail use. Wipe the back of the wheel and check the inner lip for rubbing when you rotate the tires. Hub-centric fit is another consideration, so check whether a centering ring is needed for your hub before mounting.
- Measure inner clearance before choosing a tire
- Check suspension travel for rubbing
- Clean behind the spokes after trail use
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | 7089-7983 |
| Series | 89 Series Kore |
| Style | Spoke |
| Finish | Flat black |
| Construction | Aluminum |
| Diameter | 17 inches |
| Width | 9 inches |
| Offset | -6 |
| Backspacing | 4.75 |
| Center bore | 108 |
| Bolt pattern | 6 on 5.5 |
Vehicle fitment
It is a universal fit wheel, so the bolt pattern, center bore, offset and backspacing all have to suit the hub it mounts to. Check those figures against your vehicle before ordering.
Installation notes
Check the 6 on 5.5 bolt pattern, center bore of 108 and offset of -6 against your hub before mounting. Wheels with a different offset can change clearance to suspension and brake parts.
What’s included
The package is the 17×9 flat black wheel. You will need to source lug nuts, a center cap and a tire separately.
