Pro Comp 40 Series Vertigo, 17x9 Wheel with 6 on 5.5 Bolt Pattern – Satin Black and Milled – 5140-7983

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 17x9 6x5.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp 40 Series Vertigo 17×9, part number PXA5140-7983
  • 6 on 5.5 bolt pattern, center bore 108
  • Satin black and milled split spoke
  • Offset -6, backspacing 4.75

Description

Overview

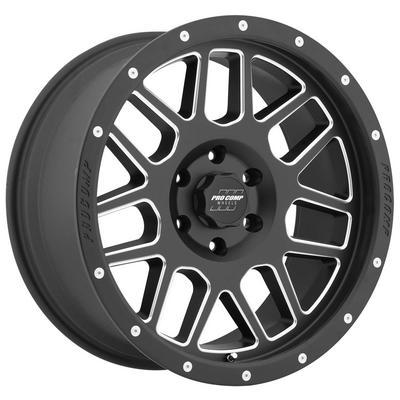

The Pro Comp 40 Series Vertigo 17×9 wheel, part number PXA5140-7983, is a 17-inch aluminum split spoke wheel that is 9 inches wide. The bolt pattern is 6 on 5.5 and the finish is satin black with milled detail, which the series name gives as 40 Series Vertigo satin black and milled.

The wheel uses Pro Comp’s low-pressure cast construction. Its 108 center bore and -6 offset sit alongside a 4.75 backspacing, and the negative offset places the wheel face outward. No vehicle is named for it, and the brand classes it as universal fit.

Key features

  • Low-pressure cast aluminum
  • 17-inch diameter with a 9-inch width
  • 6 on 5.5 bolt pattern
  • Center bore 108
  • Offset -6 and backspacing 4.75
  • Satin black with a milled spoke face

Choosing the right setup

A 17-inch wheel with a 9-inch width changes the tire options and the space around the brakes, so the wheel and tire should be chosen together. Tire width, sidewall height and overall diameter all affect how much room the wheel has inside the fender and how the suspension moves. Keep the overall rolling diameter close to the original tire when possible, since large changes affect speedometer readings and gearing.

Hub-centric fit matters on any split spoke wheel. A center bore that matches the hub carries the vehicle weight, so the lug nuts only clamp the wheel. When the bore is larger than the hub, a hub-centric ring can fill the gap. Lug nuts or bolts sized and seated for the wheel are also needed, since a mismatched seat can loosen under load.

  • Compare tire diameter with the original tire
  • Check brake caliper clearance before mounting
  • Use a torque wrench on the lug nuts after the first drives

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA5140-7983
Wheel diameter 17 inches
Wheel width 9 inches
Bolt pattern 6 on 5.5
Center bore 108
Offset -6
Backspacing 4.75
Style Split spoke
Finish Satin black and milled
Construction Aluminum
Series 40 Series Vertigo

Vehicle fitment

There is no vehicle list for this wheel, and the fitment field reads universal. Compare the 6 on 5.5 hub and 108 center bore with the vehicle, then check the -6 offset against the brake caliper before a tire is mounted.

Confirm your vehicle’s year, model and trim before ordering.

The satin black finish has a milled spoke face, a visual detail that does not affect fit. Fit depends on the 6 on 5.5 pattern, the 108 center bore and the -6 offset, so confirm those figures first.

What’s included

The package is one 17×9 wheel in satin black with a milled finish. Check the package contents for center caps and lug nuts before starting.

SKU: PXA5140-7983 Categories: ,

Questions & Answers

Is the PXA5140-7983 a 6 on 5.5 wheel?

Yes. The bolt pattern is 6 on 5.5 and the center bore is 108. The wheel is 17 inches in diameter and 9 inches wide, so compare those figures with your hub.

What finish does this Vertigo have?

It is a 40 Series Vertigo wheel with a satin black finish and milled detail on the spoke face. It is an aluminum split spoke wheel.

What offset does this 17x9 wheel have?

The offset is -6 and the backspacing is 4.75. Because the offset is negative, the wheel sits farther outward, so check fender and caliper clearance before mounting.

How often should the lug nuts be checked after mounting new wheels?

Check them after the first few drives and again at each tire rotation. Retighten to the torque your vehicle requires, and look for any sign of loosening, such as a shifting wheel or a dull mark around the hole.
