Overview

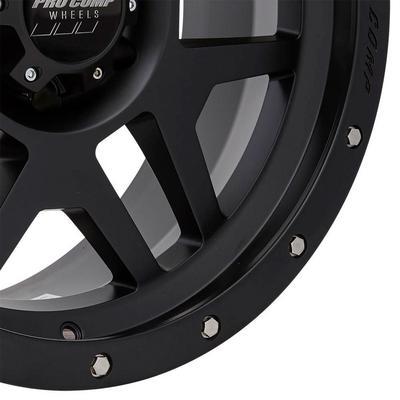

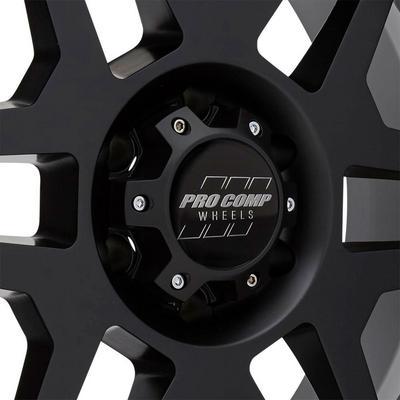

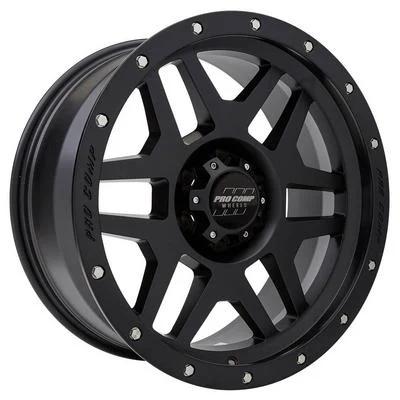

The Pro Comp 41 Series Phaser 20×9 wheel, part number PXA5041-293645, is a 20-inch aluminum split spoke wheel with a 9-inch width. It has a 6 on 135 bolt pattern and a satin black finish, named in the series as 41 Series Phaser satin black.
The wheel carries an 83 center bore, a -12 offset and a backspacing of 4.5. The negative offset moves the wheel face outward, which changes its position in the wheel well. The alloy is low-pressure cast, and the wheel is universal fit.
Key features
- Low-pressure cast aluminum
- 20-inch diameter and 9-inch width
- 6 on 135 bolt pattern
- Center bore 83
- Offset -12 with backspacing 4.5
- Satin black split spoke design
Outward offset and fender room
Negative offset shifts the mounting face outward, which pushes the tire toward the fender edge. That position can add track width, but it also places more load on the outer wheel bearing and steering components than a centered wheel would. Check fender liners and flares for contact once the wheel is mounted.
Tire width is the other half of this equation. A wider tire on a negative offset wheel can reach the fender at full lock or over bumps. Choose tire width after confirming how far the wheel sits outward, and review inner and outer clearance at both steering limits.
Wheel spacers are sometimes used to adjust offset, but they add leverage to the studs and push the wheel further out. Many owners avoid spacers on a wheel that already has negative offset. Inspect the lug nuts and studs regularly, since outward wheels can loosen when the bolts are not seated flat.
- Check fender contact at full steering lock
- Review tire width against the outward position
- Inspect the outer wheel bearing for play over time
- Avoid stacking spacers on a negative offset wheel
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA5041-293645 |
| Wheel diameter | 20 inches |
| Wheel width | 9 inches |
| Bolt pattern | 6 on 135 |
| Center bore | 83 |
| Offset | -12 |
| Backspacing | 4.5 |
| Style | Split spoke |
| Finish | Satin black |
| Construction | Aluminum |
| Series | 41 Series Phaser |
Vehicle fitment
This wheel has no vehicle list and is universal fit. The 6 on 135 pattern and 83 center bore must match the hub, and the -12 offset must clear the fender and brake caliper.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check fender clearance on both sides once the wheel is mounted, because a -12 offset on a 20-inch wheel moves the tire outward. Confirm the center bore seats the hub correctly.
The 83 center bore and 6 on 135 pattern set the hub match, while the -12 offset and 4.5 backspacing place the tire outward. A 20-inch wheel with this offset needs fender clearance checked after mounting.
What’s included
One 20×9 satin black wheel is included. Review the contents against your installation before starting.
