Overview

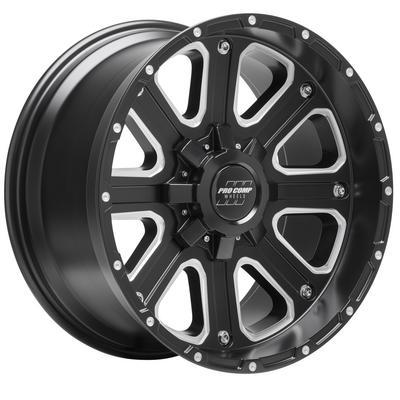

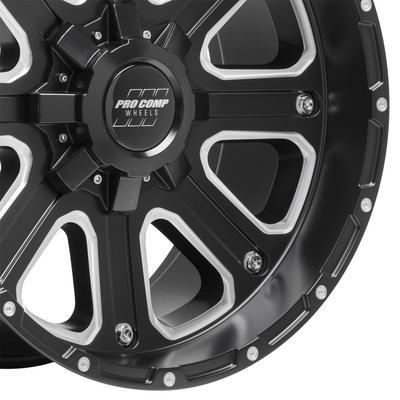

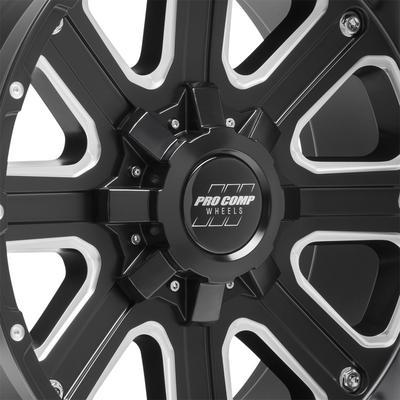

The Pro Comp 72 Series Axis wheel, part number PXA5172-21089, is a 20×10 aluminum wheel with an 8 on 180 bolt pattern in Satin Black Milled. The wheel has a spoke style, a -18 offset, 4.75 backspacing and a 125 center bore, which makes it suited to trucks that use an 8×180 pattern.
Pro Comp says its alloy wheels use low-pressure casting technology and a high-offset design for brake clearance on performance trucks and sport utility vehicles. Pro Comp gives the fit as universal without naming any vehicles, so the bolt pattern and clearance must be checked against your own truck.
Key features
- 20 inch diameter by 10 inch width
- 8 on 180 bolt pattern
- -18 offset with 4.75 backspacing and a 125 center bore
- Aluminum construction with low-pressure casting
- Spoke style in a Satin Black finish
- 72 Series Axis design
Spoke wheels and brake clearance
Spoke wheels leave the brake assembly partly visible, so caliper and rotor clearance can be checked by eye as well as by measurement. Bring a tape or a straightedge when checking, and compare the spoke gaps with the caliper body and the hub. Any contact point found now is easier to fix before the tires are mounted.
Suspension travel changes clearance too. A wheel that clears at rest can touch a control arm or a fender when the suspension compresses, so test the setup with the truck jacked and the wheel turned fully in both directions.
- Check caliper clearance through the spoke openings
- Test steering lock in both directions
- Look for contact at full suspension compression
- Re-check clearance after any suspension change
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA5172-21089 |
| Series | 72 Series, Axis |
| Wheel diameter | 20 Inches |
| Wheel width | 10 Inches |
| Bolt pattern | 8 on 180 |
| Offset | -18 |
| Backspacing | 4.75 |
| Center bore | 125 |
| Construction | Aluminum |
| Style | Spoke |
| Finish | Satin Black (Satin Black Milled) |
Vehicle fitment
No vehicle, year or chassis code is named for this wheel. It is a universal fit, so the 8 on 180 bolt pattern, 10 inch width, -18 offset and 125 center bore must be compared with your vehicle’s hub and brake specifications.
Because no vehicle list is provided, confirm your vehicle’s bolt pattern, hub bore, brake clearance and tire size before ordering.
Installation notes
Before mounting tires, confirm that the bolt pattern, center bore, offset and backspacing suit your vehicle, and that the wheel clears the brakes, suspension and body at full steering lock and suspension travel. Have a tire shop mount and balance the tires. Tighten the lug nuts to the vehicle’s torque specification in a star pattern, and re-torque them after the first miles of driving. Check local regulations on wheel and tire size and offset.
What’s included
Confirm which lug nuts, center caps and valve stems you need before mounting.
Not included: Tires, lug nuts, valve stems and tire pressure sensors.
