Overview

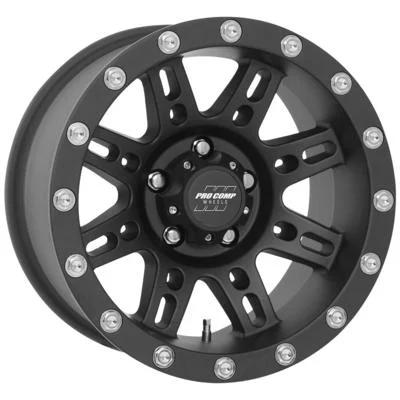

The Pro Comp PXA7031-7985 is a 17×9 split-spoke aluminum wheel from the 31 Series Stryker line, finished in matte black. It is built on a 5 on 5.5 bolt pattern with a center bore of 108, an offset of -6 and a backspacing of 4.75.
The 5 on 5.5 pattern is the layout for this 17×9 wheel, so confirm it on the truck first. The wheel is cast aluminum made with low-pressure casting.
The 5 on 5.5 pattern and 108 center bore decide the fit, and the -6 offset sets the face position. This 17×9 Stryker is a wider wheel than the narrower versions in the same series, so check the fender and caliper clearance before mounting.

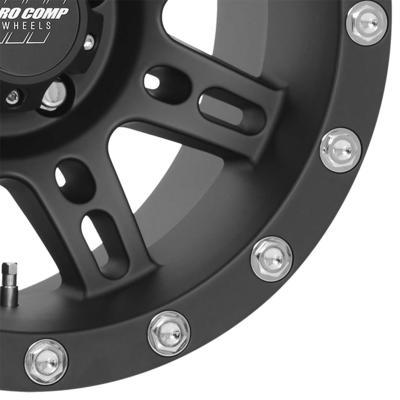

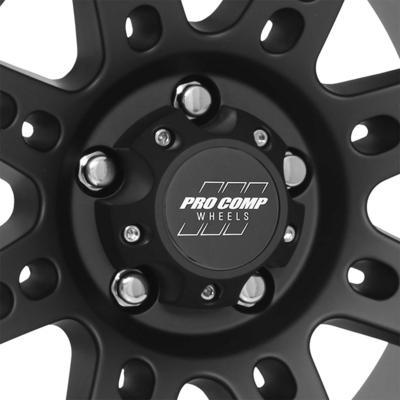

This 17-inch wheel has a matte black split-spoke face and an aluminum body.
Choose tires sized for a 17-inch rim that is 9 inches wide, and confirm the load rating for your truck.
This 17×9 Stryker sits on a 5 on 5.5 bolt pattern with a 108 center bore, so both numbers should be verified against the hub. The -6 offset places the face further outward, and the 4.75 backspacing sets the inner measurement. Because the wheel is nine inches wide, confirm the tire size and load rating before mounting, and check brake caliper and fender clearance on the truck.
Choose tires that suit the 17-inch rim.
Key features
- Split-spoke design
- Matte black finish
- 5 on 5.5 bolt pattern
- Center bore 108
- Offset -6
Wider wheels and clearance
A wider wheel changes how the tire sits in the fender and how it contacts the road. A 9-inch width with a negative offset moves the tire outward, which can widen the track and change steering feel. Measure the gap between the tire and the fender with the tire installed, and check it again at full suspension travel.
Load rating and tire size matter more on a wide rim. The tire should be rated for the weight carried by the axle, and its overall diameter should stay near the original so the speedometer and gearing remain accurate. Wheel bearings and ball joints also see different loads with a changed offset, so they are worth inspecting after a swap.
- Measure fender gap with the tire mounted
- Confirm the tire load rating
- Check ball joints and bearings after the change
- Re-check bolts after the first highway run
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA7031-7985 |
| Diameter | 17 inches |
| Width | 9 inches |
| Bolt pattern | 5 on 5.5 |
| Center bore | 108 |
| Offset | -6 |
| Backspacing | 4.75 |
| Style | Split spoke |
| Finish | Matte black |
| Construction | Aluminum |
| Series | 31 Series Stryker |
Vehicle fitment
This wheel is listed with a universal fit label. The 5 on 5.5 bolt pattern, 108 bore and -6 offset are the measurements that decide whether it mounts to a particular truck.
Select tires that suit a 17-inch rim that is 9 inches wide. Confirm your vehicle’s year, model and trim before ordering.
What’s included
One wheel. No center cap comes with it.
