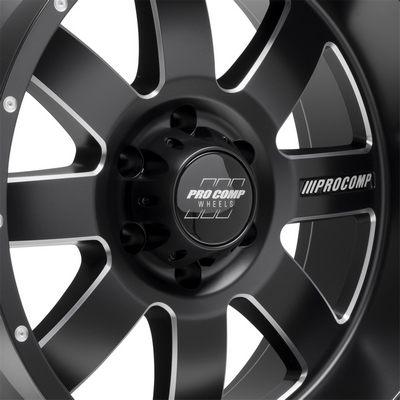

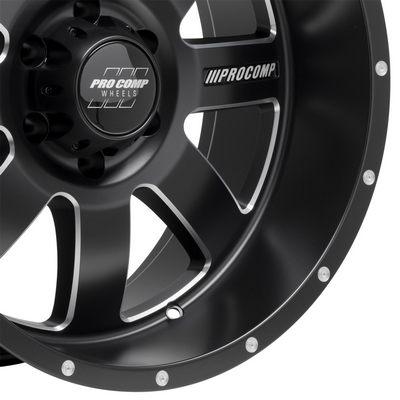

Pro Comp 73 Series Trilogy, 20x10 Wheel with 6x5.5 Bolt Pattern – Satin Black Milled – 5173-21083

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 20x10 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 20-inch by 10-inch aluminum spoke wheel
  • Satin black finish with milled accents in the product name
  • 6-on-5.5 bolt pattern and 108 center bore
  • Offset of -18 and backspacing of 4.75
  • Low-pressure cast construction

Description

Overview

The Pro Comp 73 Series Trilogy wheel, part number PXA5173-21083, is a 20-inch by 10-inch aluminum spoke wheel with a satin black finish. It has a 6-on-5.5 bolt pattern, a 108 center bore, an offset of -18 and a backspacing of 4.75.

The alloys are low-pressure cast for strength and style. The high offset is designed to clear brakes on sport utility vehicles and performance trucks. The milled accents are part of the satin black finish.

Backspacing is measured from the mounting face to the inner lip, so the 4.75 figure shows how far the wheel reaches inward. A negative offset of -18 moves the wheel face outward compared with a standard offset, which widens the track and leaves less room inside the wheel well. The offset and the 10-inch width should be checked together against your fenders and suspension.

Key features

  • 20-inch diameter and 10-inch width
  • Satin black finish, with milled accents named in the product name
  • Aluminum spoke construction
  • Low-pressure cast alloy
  • 6-on-5.5 bolt pattern with a 108 center bore
  • Offset of -18 and backspacing of 4.75

Choosing a wheel offset

Offset is the distance from the wheel’s mounting face to its centerline, and it controls how far the tire sits inside or outside the fender. A lower or negative figure pushes the wheel outward, which can help tire clearance on a wider stance but reduces room for the brakes, the inner fender and the suspension. Before choosing a wheel, measure the space you have at each corner and the brake caliper position relative to the spokes.

Width and offset work together. A wider rim on the same offset moves the tire further out, so the tire you plan to run matters as much as the wheel itself. Open spoke designs make it easier to see brake parts when checking clearance during installation. Wheel spacers can change offset, but they also change load on the wheel bearings and studs, so treat them as a separate fitment decision.

  • Measure brake caliper clearance with the wheel off
  • Check fender room at full steering lock
  • Recheck clearance after suspension or tire changes

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA5173-21083
Series 73 Series Trilogy
Diameter 20 inches
Width 10 inches
Bolt pattern 6 on 5.5
Center bore 108
Offset -18
Backspacing 4.75
Style Spoke
Construction Aluminum
Finish Satin black, milled

Vehicle fitment

The wheel is sold as a universal fit, which does not confirm clearance. Check the bolt pattern, center bore, offset and width against your vehicle before mounting.

A -18 offset with a 10-inch width moves the wheel outward, so check tire and suspension clearance for your vehicle. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Check the 6-on-5.5 bolt pattern and 108 center bore against your hub, and confirm the -18 offset and 10-inch width clear your fenders and suspension at the tire size you plan to run. The 4.75 backspacing and 108 center bore are the other two measurements to confirm against your hub and brake package before mounting.

What’s included

One 20-inch by 10-inch satin black aluminum wheel.

Not included: Tires.

SKU: PXA5173-21083 Categories: ,

Questions & Answers

What bolt pattern and center bore does the PXA5173-21083 wheel have?

It has a 6-on-5.5 bolt pattern and a 108 center bore. Match both to your hub before mounting, and confirm your vehicle's year, model and trim before ordering.

How wide and deep is the 73 Series wheel?

The wheel is 10 inches wide, with an offset of -18 and a backspacing of 4.75. The negative offset moves the wheel face outward, so check fender and suspension clearance before ordering.

Is the 73 Series Trilogy universal fit?

It is sold as a universal fit, but fitment depends on the bolt pattern, center bore, offset and width. Confirm those measurements against your vehicle before ordering.

Do wheel spacers change offset?

Yes. A spacer moves the wheel outward and changes the effective offset, which affects clearance and the load on wheel bearings and studs. Use spacers only with studs long enough to hold the lug nuts properly, and recheck clearance after fitting.
