Pro Comp 62 Series Apex, 20x10 Wheel with 8x180 Bolt Pattern – Satin Black Milled – 5162-218947

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 20x10 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp PXA5162-218947: 20×10 aluminum split-spoke wheel, 62 Series Apex, satin black milled
  • 8 on 180 bolt pattern, center bore 125, offset -18, backspacing 4.75
  • Pro Comp alloy load rating of 2500 to 3650 lbs per wheel
  • No vehicle is named for this wheel

Description

Overview

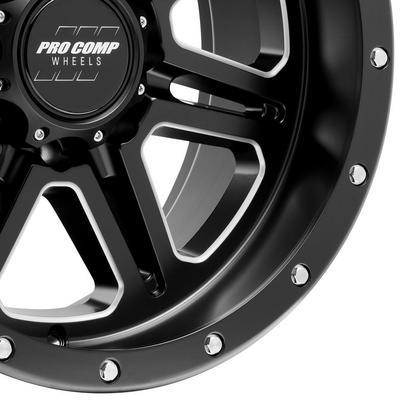

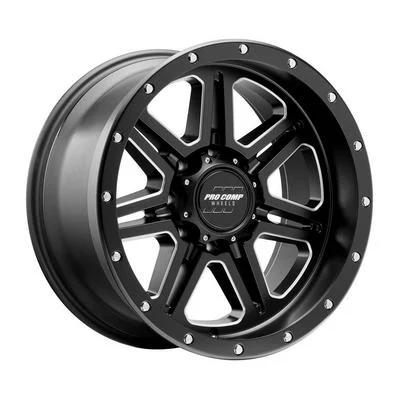

The Pro Comp PXA5162-218947 is a 20×10 aluminum split-spoke wheel from the Pro Comp 62 Series Apex line, in satin black milled with an 8 on 180 bolt pattern. It is sold as one wheel with a center bore of 125.

Pro Comp built the Apex with low-pressure casting, and its alloy range is rated from 2500 to 3650 lbs per wheel. This wheel is 10 inches wide with an offset of -18 and a backspacing of 4.75. Measure the hub before ordering, since the eight-lug pattern must match exactly.

Key features

  • Low-pressure cast aluminum
  • Split-spoke design
  • 20-inch diameter and 10-inch width
  • 8 on 180 bolt pattern
  • Center bore of 125
  • Offset -18 with 4.75 backspacing

Choosing the right setup

A split-spoke wheel of this size changes how the tire sits relative to the fender and suspension, so the offset and backspacing deserve as much attention as the bolt pattern. A negative offset such as -18 pushes the tire outward, which can improve stance but reduces room for brake calipers and steering parts. Shoppers with a lifted setup or a wider tire should measure inner clearance with the tire mounted and the suspension at full travel.

Lug nut seat style should match the wheel, and the hub face should be clean and flat before the wheel goes on. Re-torque the nuts after the first few drives, since new wheels can settle slightly against the hub. Recheck clearance any time the tire size or ride height changes, because small changes can bring the tire into contact with inner parts.

  • Measure the hub pattern before buying
  • Check clearance with the tire mounted
  • Re-torque lug nuts after the first drives

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA5162-218947
Series 62 Series Apex
Style Split spoke
Construction Aluminum
Finish Satin black milled
Diameter 20 inches
Width 10 inches
Bolt pattern 8 on 180
Center bore 125
Offset -18
Backspacing 4.75
Load rating 2500 to 3650 lbs per wheel (Pro Comp alloy range)

Vehicle fitment

Fit is set by the hub rather than a named model. The 8 on 180 hub and 125 center bore are the first checks, followed by clearance at the -18 offset.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Eight lug holes at 180 must line up with the hub, so a 170 or 6.5 hub will not take this wheel. Confirm the pattern on the vehicle, then test-fit the 10-inch rim with the tire. The 180 hub pattern is specific, so double-check the vehicle’s hub before buying. Because the 8 on 180 spacing is uncommon, confirm the bolt circle on the vehicle with a measurement rather than assuming it.

What’s included

One 20×10 aluminum wheel in satin black milled.

SKU: PXA5162-218947 Categories: ,

Questions & Answers

What bolt pattern is the PXA5162-218947?

It is an 8 on 180 bolt pattern with a center bore of 125. Those figures must match the hub, and the offset is -18 with a backspacing of 4.75.

Are lug nuts included with the PXA5162-218947?

The wheel ships as one 20x10 aluminum unit. Confirm your lug nut and center cap needs for an 8 on 180 hub before ordering, since those parts vary by vehicle.

Does this wheel fit a specific truck or SUV?

No vehicle is named. Universal fit does not identify a model, so compare the 8 on 180 pattern and the 125 center bore with your vehicle before buying.

How do I check whether the tire will rub?

Mount the tire, turn the steering to full lock, and cycle the suspension through its travel. Look for contact with the fender liner, brake caliper or tie rod. Rubbing at full lock means the offset or tire width needs to change before regular driving.
