Overview

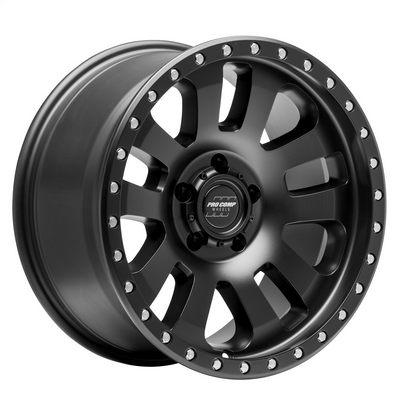

The Pro Comp 46 Series Prodigy is a 17 inch by 9 inch satin black aluminum spoke wheel with a 5 on 5 bolt pattern, a 72 center bore and a -6 offset. It is part number PXA7046-7973.
The wheels are built for trucks and sport utility vehicles from aluminum cast with counter pressure casting. The process is used to make the wheel light and strong.
The 5 on 5 bolt pattern is the one this wheel is made to match, so check it against the hub before mounting. A 9 inch width with a -6 offset changes where the tire sits relative to the fender and suspension, which matters more on a lifted truck than on a stock one.
The 17 inch diameter is the wheel size, so the tire you pair with it has to match that diameter. Confirm the tire size with the tire maker, since the wheel does not set the tire’s sidewall height.
Key features
- 17 inch diameter and 9 inch width

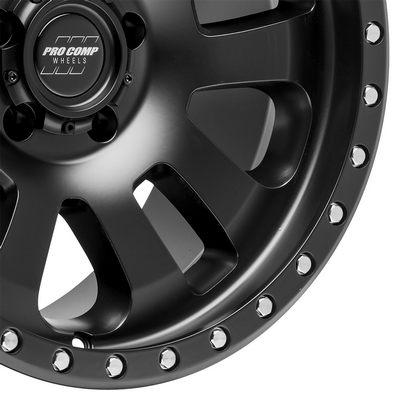

- Spoke design from the 46 Series Prodigy line
- Aluminum construction using counter pressure casting.
- 5 on 5 bolt pattern with a 72 center bore
- -6 offset and 4.75 backspacing

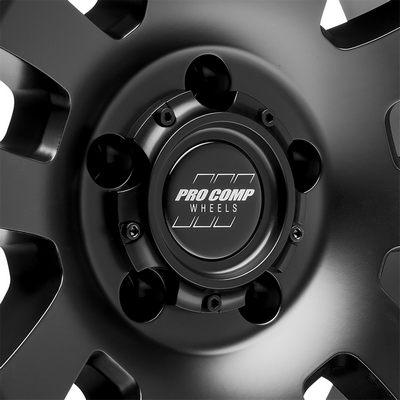

- Center caps are included.
Before you buy
Start with the tire. The wheel’s 17 inch diameter means the tire has to match that diameter, and the tire’s sidewall height and load rating decide the overall rolling diameter. Check the tire size against the wheel width and the clearance at the fender liner before buying. A 9 inch wide wheel leaves less room for a wide tire in tight wheel wells, so it helps to measure first.
Offset is worth comparing with your current setup. A -6 offset moves the mounting face outward compared with a zero offset wheel, which changes the inner clearance to brakes and suspension and the outer clearance to the fender. Valve stems and lug seats also matter for a clean installation, so confirm they suit the wheel before mounting.
- Check bolt pattern and center bore against the hub
- Use lug nuts with the seat style that matches the wheel
- Confirm fender and brake clearance after mounting
- Balance tires on the wheel before the first drive
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA7046-7973 |
| Diameter | 17 inches |
| Width | 9 inches |
| Bolt pattern | 5 on 5 |
| Center bore | 72 |
| Offset | -6 |
| Backspacing | 4.75 |
| Style | Spoke |
| Series | 46 Series Prodigy, satin black |
| Construction | Aluminum |
| Center caps | Included |
| Fit | Labeled universal fit |
Vehicle fitment
No specific vehicle is named for this wheel. Match the bolt pattern and center bore to your hub, and check the offset against your vehicle’s clearance.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Confirm the 5 on 5 bolt pattern and the 72 center bore match your hubs before mounting. The -6 offset places the mounting face further outward than a zero offset wheel, so check clearance to the fenders, brakes and suspension.
What’s included
One 17 inch wheel with center caps.
