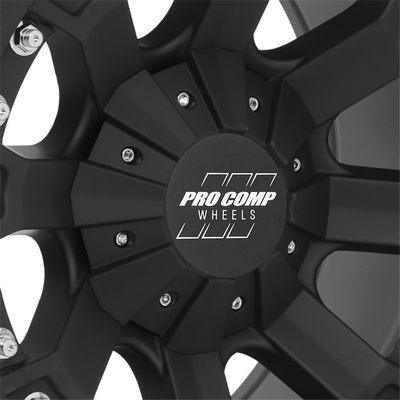

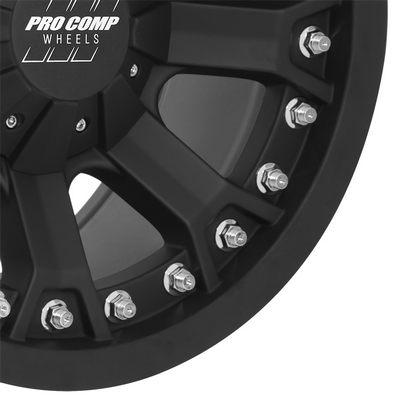

Pro Comp 33 Series Grid, 17x9 Wheel with 5 on 5 Bolt Pattern – Matte Black – 7033-7905

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 17x9 5x5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 17×9 aluminum spoke wheel in matte black, 33 Series Grid
  • 5 on 5 bolt pattern, center bore 83
  • Offset -6; backspacing 4.75
  • Part number PXA7033-7905 with a second listed pattern of 5 on 5.5 (139.7)

Description

Overview

The Pro Comp PXA7033-7905 is a 17×9 aluminum spoke wheel from the 33 Series Grid line, in matte black. Its primary bolt pattern is 5 on 5, with a center bore of 83, an offset of -6 and a backspacing of 4.75.

A second bolt pattern, 5 on 5.5 (139.7), is also offered, so confirm which pattern your hub uses before mounting. The cast aluminum is made with low-pressure casting.

The 5 on 5 bolt pattern with an 83 center bore is the primary fit, and the -6 offset places the 9-inch wide face outward. Because a second pattern of 5 on 5.5 (139.7) is also listed, confirm the hub pattern before ordering.

The spoke design and matte black finish are features of this 33 Series Grid wheel. The cast aluminum is made with low-pressure casting.

Key features

  • Spoke design with a grid-style face
  • Matte black finish
  • 5 on 5 primary bolt pattern
  • Center bore 83
  • Offset -6

Tire and rim matching

A 17-inch rim that is 9 inches wide opens a wide range of tire choices, but overall diameter and load rating decide how the wheel behaves on and off the road. A taller tire can change speedometer reading and gearing feel, while a shorter sidewall gives sharper steering and a firmer ride. Check that the tire’s rim width range covers 9 inches before buying, and confirm the load index suits your vehicle’s weight.

Spoke wheels can trap mud and grit between the spokes, so rinse the face after off-road runs and look over the lug seats for corrosion. Retorque the lug nuts after the first few drives, since new wheels can settle against the hub face.

  • Confirm the tire load index covers your vehicle’s weight
  • Check that the valve stem fits the rim opening
  • Recheck lug nut torque after the first few drives

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA7033-7905
Diameter 17 inches
Width 9 inches
Bolt pattern 5 on 5
Second bolt pattern 5 on 5.5 (139.7)
Center bore 83
Offset -6
Backspacing 4.75
Style Spoke
Finish Matte black
Construction Aluminum
Series 33 Series Grid

Vehicle fitment

This wheel is not built for one vehicle. Confirm the bolt pattern on the hub, since both 5 on 5 and 5 on 5.5 (139.7) patterns apply, and check the 83 center bore and -6 offset before ordering.

Pick tires suited to a 17-inch rim that is 9 inches wide. Confirm your vehicle’s year, model and trim before ordering.

What’s included

The package is one wheel. Check the package contents against your installation before starting.

SKU: PXA7033-7905 Categories: ,

Questions & Answers

Does the PXA7033-7905 fit a 5 on 5 hub?

Yes, the primary pattern is 5 on 5, and a hub with that pattern and an 83 center bore is the match. A 5 on 5.5 (139.7) pattern is also offered, so confirm which one your hub uses.

What offset does the Grid wheel have?

The offset is -6, and the backspacing is 4.75. The wheel is 17 inches by 9 inches, and the primary pattern is 5 on 5 with a second listed option.

Is a center cap included?

No center cap comes with the PXA7033-7905. Confirm the 5 on 5 pattern and 83 center bore on the hub before ordering, then check the package contents at delivery.

How often should the wheel be cleaned and inspected?

Rinse the wheel after muddy or sandy trips and look over the bead seat and spokes for cracks or corrosion. Wipe off road grime with mild soap and water, avoiding harsh abrasives that can dull the matte black finish.
