Pro Comp 72 Series Axis, 17x9 Wheel with 5x5 Bolt Pattern – Satin Black Milled – 5172-7905

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 17x9 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp PXA5172-7905: 17×9 aluminum spoke wheel, 72 Series Axis, satin black milled
  • 5 on 5 bolt pattern, center bore 108, offset -6, backspacing 4.75
  • Second listed bolt pattern 5 on 5.5 (139.7)
  • No vehicle is named for this wheel

Description

Overview

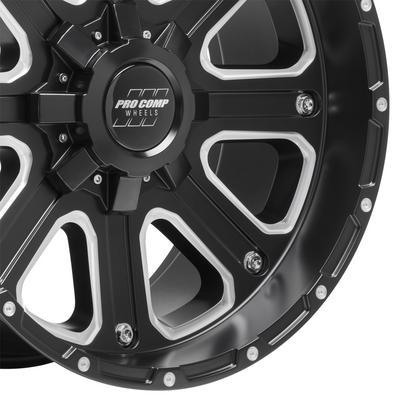

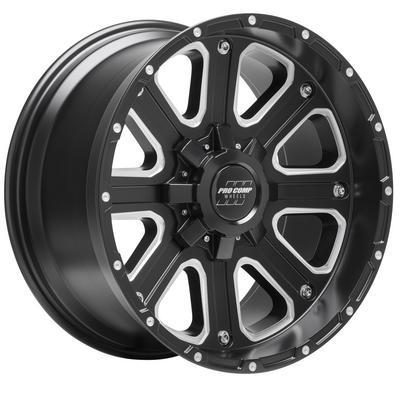

The Pro Comp PXA5172-7905 is a 17×9 aluminum spoke wheel from the Pro Comp 72 Series Axis line, in satin black milled with a 5 on 5 bolt pattern. It is sold as one wheel with a center bore of 108 and an offset of -6.

This 9-inch-wide wheel has a backspacing of 4.75. The specifications also list a second bolt pattern of 5 on 5.5 with 139.7, so confirm which layout your hub uses before ordering.

Key features

  • Low-pressure cast aluminum construction
  • Spoke face style
  • 17-inch diameter, 9-inch width
  • 5 on 5 bolt pattern, with a second listed pattern of 5 on 5.5
  • Center bore of 108
  • Offset -6 with 4.75 backspacing

Spoke clearance and fit

Spoke wheels leave open space between the spokes, which helps airflow to the brakes. That open design also means the brake caliper and rotor can be seen through the face, so check that the spokes clear the caliper at full steering lock. Mount the wheel with the tire and turn the steering from side to side before the first drive.

Weight matters on a spoke wheel too. A heavier wheel adds unsprung mass, which can affect how the suspension tracks over bumps. When choosing a tire, match the width to the rim and check that the sidewall does not rub the inner fender after the suspension has been loaded. Keep the lug nut seats clean and dry, and inspect the spoke roots for hairline cracks after heavy trail use.

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA5172-7905
Series 72 Series Axis
Style Spoke
Construction Aluminum
Finish Satin black milled
Diameter 17 inches
Width 9 inches
Bolt pattern 5 on 5
Second listed bolt pattern 5 on 5.5 (139.7)
Center bore 108
Offset -6
Backspacing 4.75

Vehicle fitment

No vehicle is named for this wheel. Universal fit on the specifications does not tie the Axis to a model. Because two bolt patterns are listed, the hub must be measured before ordering, and the -6 offset then needs a clearance check.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Measure the hub to see whether it is a 5 on 5 or a 5 on 5.5 layout, since the two listed patterns are different and only one will seat. Confirm the 108 center bore against the hub pilot, then test-fit the rim with the tire. The 5 on 5 and 5 on 5.5 hub layouts are different, so confirm which one the vehicle uses before buying, because a wheel will not seat on the wrong spacing. The 108 center bore must match the hub pilot, and the 9-inch width needs a tire sized to that rim. Because the Axis is a spoke design, look for clearance between the spokes and the brake caliper when the wheel is turned to full lock.

What’s included

One 17×9 aluminum wheel in satin black milled.

SKU: PXA5172-7905 Categories: ,

Questions & Answers

What bolt pattern does the PXA5172-7905 use?

The main bolt pattern is 5 on 5 with a center bore of 108. The specifications also list 5 on 5.5 with 139.7, so measure your hub before choosing this wheel.

What load rating does this Axis wheel carry?

Confirm the load rating for this Axis 17x9 before heavy use. Compare the rating against your vehicle's axle weight and tire load, and choose a setup that carries the loaded weight at each corner.

Are lug nuts included with the PXA5172-7905?

Lug nuts and a center cap are not part of this wheel. Before ordering, check the lug nut seat style and thread size your hub requires, so the fasteners seat fully against the wheel.

Do spoke wheels need more cleaning than flat-face wheels?

Yes, somewhat. Spoke wheels collect mud and road grime in the gaps between spokes, so they need a little more attention. Rinse with mild soap, use a soft brush in the spoke gaps, and dry the surface after trail runs. Avoid harsh acid cleaners on the satin black milled finish, since they can dull it over time.
