Pro Comp 01 Series Raven, 17x8 Wheel with 6 on 5.5 Bolt Pattern – Satin Black – 5001-7883

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 17x8 6x5.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 17×8 aluminum split-spoke wheel in satin black
  • 6 on 5.5 bolt pattern, center bore 108
  • Offset 0 and backspacing 4.5
  • 01 Series Raven design

Description

Overview

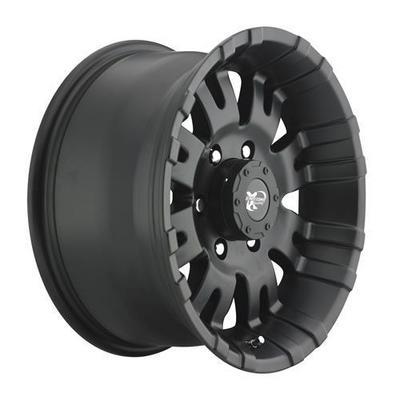

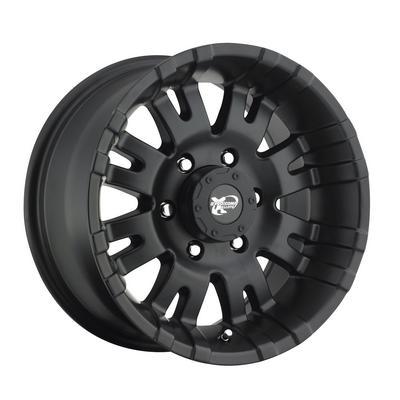

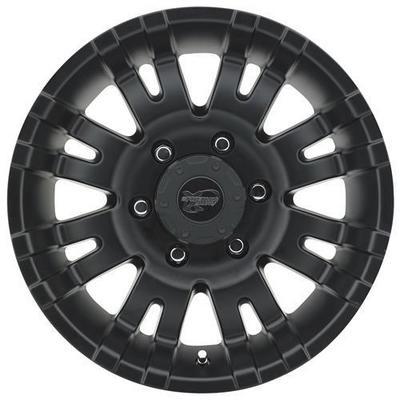

The Pro Comp PXA5001-7883 is a 17×8 aluminum wheel from the 01 Series Raven line, with a split-spoke design, a satin black finish and a 6 on 5.5 bolt pattern. It has an offset of 0 and a backspacing of 4.5.

The alloy wheels are made with low-pressure casting, and the 01 Series Raven pairs that construction with a satin black finish for trucks and sport utility vehicles. It is not built for one vehicle, so the bolt pattern and hub size decide what it will mount on.

Check the three hub measurements together: the 6 on 5.5 pattern, the 108 center bore and the 0 offset. A zero-offset wheel sits with its mounting face at the centerline of the wheel, so its clearance at the fender and brake caliper differs from that of a negative-offset wheel of the same width.

Key features

  • Split-spoke aluminum design
  • Satin black finish
  • Low-pressure cast aluminum construction
  • 6 on 5.5 bolt pattern
  • Center bore 108

Matching a wheel to the hub

A wheel has to match the vehicle in three ways before it bolts on: the bolt pattern, the center bore and the offset. The bolt pattern is the spacing of the lug holes, the center bore is the hole the wheel slides over, and the offset sets where the mounting face sits relative to the centerline. A wheel that matches the bolt pattern but has the wrong offset can rub the fender or hit a brake caliper.

Tire size and load rating also change what the wheel can carry and how the tire fits the wheel well. A larger overall diameter changes speedometer readings and sidewall height, so the rolling diameter should be checked before choosing a size. Hub-centric rings can close a small gap between a wheel’s center bore and the hub, and the lug seat type should match the wheel.

  • Confirm lug seat type before tightening
  • Check brake caliper clearance with the new wheel
  • Re-torque lug nuts after the first drive

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA5001-7883
Diameter 17 inches
Width 8 inches
Bolt pattern 6 on 5.5
Center bore 108
Offset 0
Backspacing 4.5
Style Split spoke
Finish Satin black
Construction Aluminum
Series 01 Series

Vehicle fitment

A wheel is not built for one vehicle. Match the 6 on 5.5 bolt pattern, the 108 center bore and the 0 offset to your truck’s hubs before ordering.

Tire size and load rating must suit the 17×8 wheel and your vehicle. Confirm your vehicle’s year, model and trim before ordering.

What’s included

One wheel. Confirm a center cap on the packing list before ordering.

SKU: PXA5001-7883 Categories: ,

Questions & Answers

Is the PXA5001-7883 a universal fit wheel?

It is not built for one vehicle, so it works only where the bolt pattern, center bore and offset match your truck. Check those measurements before ordering.

What bolt pattern and width does this wheel have?

It is a 17x8 wheel with a 6 on 5.5 bolt pattern, a center bore of 108 and an offset of 0. The backspacing is 4.5.

Does the wheel include a center cap?

A center cap is not part of the wheel's confirmed contents here, so check the packing list on arrival before assuming one came with it.

Does a wheel's backspacing matter as well as the offset?

Yes. Backspacing measures the distance from the mounting face to the inner edge of the wheel, so it shows how much room is left behind the wheel for suspension and brake parts. Check inner clearance along with the outer face position before mounting a new wheel.

Can different wheels be run on the same truck at once?

Keep the same size and offset on all four corners for consistent handling. Mixing wheels with different offsets or bolt patterns can cause uneven tire wear and steering changes, so replace them as a matched set when possible.
