Pro Comp 75 Series Trilogy Race Beadlock Wheel, 17x9 with 6x5.5 Bolt Pattern – Satin Black – 5175-798347

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 17x9 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 17 x 9 satin black beadlock wheel, 6 on 5.5 bolt pattern

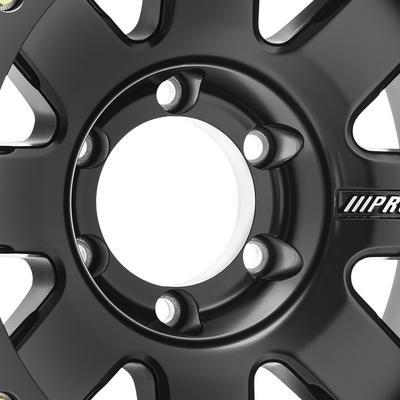

  • Center bore 108, offset -6, backspacing 4.75
  • 6061 aluminum beadlock ring and countersunk Grade 8 bolts
  • NORDLOCK washers keep the ring hardware tight

Description

Overview

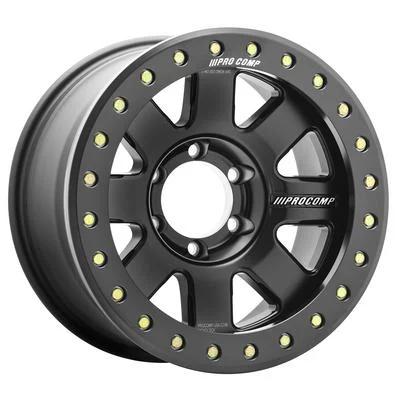

The Pro Comp PXA5175-798347 is a 17 x 9 inch satin black beadlock wheel from the 75 Series Trilogy Race line. It is built for a 6 on 5.5 bolt pattern, with a center bore of 108, an offset of -6 and a backspacing of 4.75. The beadlock ring, forged from 6061 aluminum, clamps the tire bead against the rim so the tire holds its position at low pressure.

The -6 offset with a 4.75 backspacing places the wheel differently from the -30 offset version. The face uses eight spokes and the beadlock is an updated design. Match the bolt pattern and offset to your vehicle before buying.

Key features

  • Satin black finish
  • Eight-spoke face in the Trilogy Race style
  • Forged 6061 aircraft grade beadlock ring
  • The ring is double the thickness of the original design.

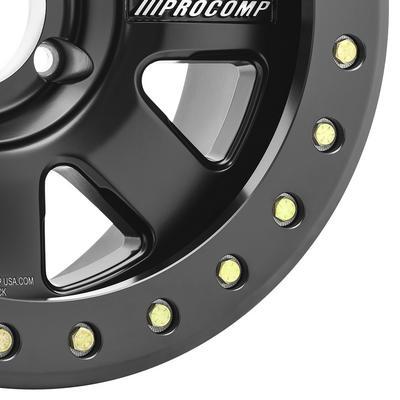

  • Countersunk Grade 8 bolts sit flush with the ring, which helps keep them clear of rocks and impacts.
  • NORDLOCK washers on the ring hardware
  • Diamond knurl on the ring
  • Figure eight grip pattern on the bead area

Hub-centric rings and lug nuts

A wheel centers either on its bore or on its lug nuts. When the center bore is larger than the hub, a hub-centric ring fills the gap so the load goes through the hub instead of the studs. Rings should be made from a material that holds its shape under load, and they should seat flat before the lugs are tightened.

Lug nuts must match the wheel’s seat type, or they can loosen under vibration. Clean the hub face and check the studs for damage before mounting. Retighten after the first few miles, since the wheel and hardware settle as they are loaded.

  • Match the lug seat to the wheel
  • Check the hub face for rust before mounting
  • Retorque after the first few drives

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA5175-798347
Wheel size 17 x 9 inch
Style Trilogy Race beadlock, 75 Series
Finish Satin black
Construction Aluminum
Bolt pattern 6 on 5.5
Center bore 108
Offset -6
Backspacing 4.75

Vehicle fitment

Compare the 6 on 5.5 pattern, the 108 center bore and the -6 offset with your vehicle’s wheel specifications before ordering.

The center bore of 108 may need hub-centric rings on some vehicles. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Mount the tire with the ring in place and check the ring hardware after the first few miles. Keep the bolts torqued with the NORDLOCK washers in place, and check the valve stem and brake clearance at full steering lock.

What’s included

The wheel comes with its beadlock ring hardware, meaning the Grade 8 countersunk bolts and NORDLOCK washers. A tire is not part of the package.

SKU: PXA5175-798347 Categories: ,

Questions & Answers

How is the PXA5175-798347 different from the -30 offset version?

Both are 17 x 9 satin black wheels on a 6 on 5.5 pattern. This one has a -6 offset and a 4.75 backspacing, while the -30 version has a -30 offset and a 3.75 backspacing.

Does the PXA5175-798347 need hub-centric rings?

Hub-centric rings may be needed with a 108 center bore, since some hubs are smaller. Check your hub's dimensions before ordering.

Is a tire included with this wheel?

No. The wheel is sold with its beadlock ring hardware and Grade 8 bolts, and no tire is included. Choose a tire that suits the 17 x 9 size and your vehicle.

Can the ring hardware be reused after removing the tire?

Usually yes, if the bolts and washers are undamaged. Inspect the threads, washer faces and ring for wear or deformation, and replace any part that shows damage. Reinstall with the same washers and retorque after the first drive.
