Pro Comp 50 Series 10 Gauge, 20x9 Wheel with 5 on 5 and 5 on 5.5 Bolt Pattern – Satin Black – 5050-292745

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 20x9 5x5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp 50 Series 10 Gauge 20×9, part number PXA5050-292745
  • 5 on 5 and 5 on 5.5 bolt patterns, center bore 72
  • Satin black holed style wheel
  • Offset -12, backspacing 4.5

Description

Overview

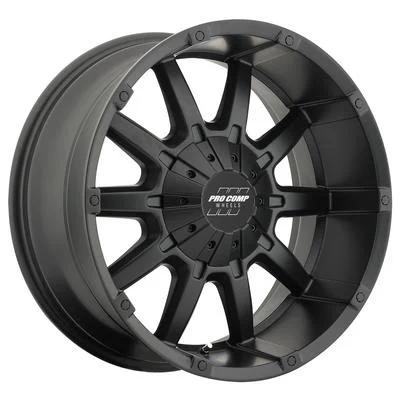

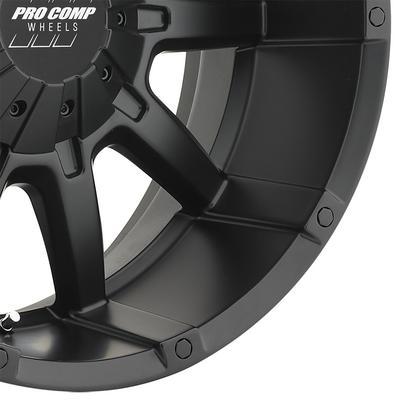

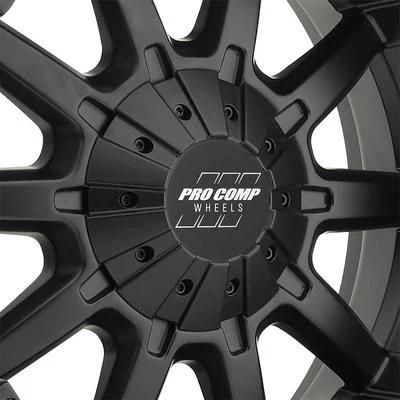

The Pro Comp 50 Series 10 Gauge 20×9 wheel, part number PXA5050-292745, is a 20-inch aluminum wheel that is 9 inches wide. It has a holed style and a satin black finish. Its primary bolt pattern is 5 on 5, with 5 on 5.5 also available (5 on 139.7).

The wheel has a 72 center bore, a -12 offset and a backspacing of 4.5. The 10 Gauge line is low-pressure cast alloy. It is universal fit with no vehicle named, so match the hub pattern and check the negative offset before fitting.

Key features

  • Low-pressure cast aluminum
  • 20-inch diameter and 9-inch width
  • 5 on 5 bolt pattern, 5 on 5.5 also listed
  • Center bore 72
  • Offset -12 with backspacing 4.5
  • Holed style in satin black

Negative offset and fender room

A negative offset pushes the wheel’s mounting face outward, which moves the tire toward the fender and the suspension. On a 20-inch wheel of this width, the tire can rub at full steering lock or when the suspension compresses. Measure the gap between the tire and the fender with the vehicle loaded, then recheck after a short drive.

Holed wheels are a styling choice, and the holes do not change the bolt pattern or offset. Look for cracks around the holes after rough trail use, since heavy impacts can concentrate stress there. Choosing a tire width that suits the rim keeps the sidewall clear of the wheel’s outer edge.

  • Check fender clearance at full lock
  • Inspect around the holed areas after rough use
  • Recheck torque after the first drive
  • Compare tire width with the rim width before buying

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA5050-292745
Wheel diameter 20 inches
Wheel width 9 inches
Bolt pattern 5 on 5 (also 5 on 5.5, given as 5 on 139.7)
Center bore 72
Offset -12
Backspacing 4.5
Style Holes
Finish Satin black
Construction Aluminum
Series 50 Series 10 Gauge

Vehicle fitment

This wheel is universal fit and no vehicle is named for it. Match the hub to either the 5 on 5 or 5 on 5.5 layout, then confirm the -12 offset clears the fender and brake caliper.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The -12 offset moves the wheel outward on a 20-inch rim. Check outer fender clearance and the caliper with the wheel mounted before driving.

The 20-inch diameter and 9-inch width describe the rim, and the holed style is a visual feature that does not change the bolt pattern.

What’s included

One 20×9 holed wheel in satin black. Confirm center caps and lug nuts for your hub before mounting.

SKU: PXA5050-292745 Categories: ,

Questions & Answers

Is the PXA5050-292745 a 5 on 5 wheel?

Yes, the primary pattern is 5 on 5. The specification also lists 5 on 5.5, given as 5 on 139.7, so check which one matches your hub.

What offset does this 10 Gauge wheel have?

The offset is -12 and the backspacing is 4.5. The negative offset moves the wheel outward, so fender and caliper clearance should be measured.

Is this wheel vehicle-specific?

No. It is universal fit with no vehicle named. Confirm the bolt pattern, center bore and clearance on your own vehicle before buying.

Can a negative offset affect steering?

It can. Moving the mounting face outward changes scrub radius and steering feel, and the effect grows with heavier tires. Alignment checks after mounting help keep tire wear even and steering predictable.
