Overview
The Pro Comp K3055 is a 2-inch stage 1 coil spring lift kit with ES3000 shocks. It fits 2004–2006 Jeep Wrangler (LJ) Unlimited and Unlimited Rubicon models, and 1997–2006 Jeep Wrangler (TJ) models in common trims.
Coil springs are used at both the front and the rear. The kit comes with front and rear ES3000 shocks, but the shock boots are not included. Wheel size range is 15 inches or larger, with a width range of 7 to 8 inches.
Key features
- 2-inch lift, stage 1

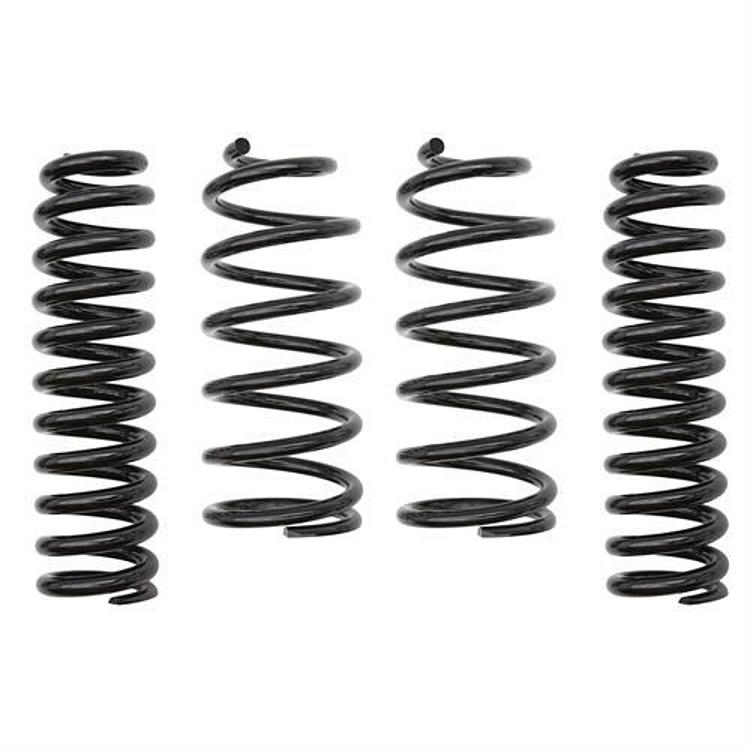

- Coil springs at the front and rear

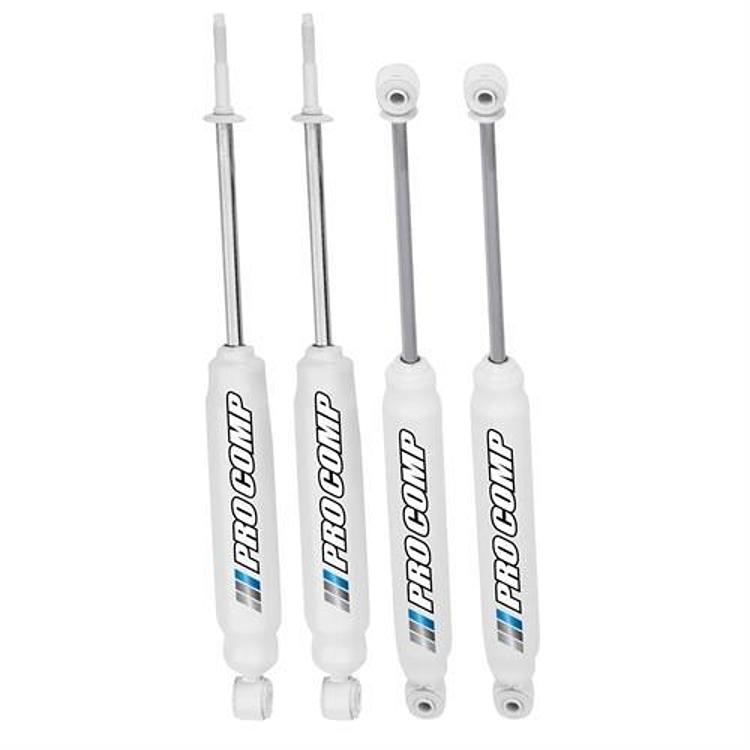

- Front and rear ES3000 shocks
- Shock boots not included
- Wheel size range 15 inches or larger, width 7 to 8 inches
Before you buy
A coil spring lift on a Wrangler changes the geometry of the track bar, driveline and sway bar links, so the stock lengths and angles no longer match the new height. Plan on an alignment and a driveline angle check once the truck is back on its wheels. Shock choice matters too, since the shocks must match the new travel and ride height.
Because shock boots are not part of this kit, decide early whether to add them. Boots help keep dust and grit off the shaft seals on trail-heavy use. When buying a boot, match it to the shock body so it seals properly at both ends of travel.
- Check bump stop clearance at full compression
- Inspect brake hose length before the first drive
- Re-torque control arm and track bar bolts after the first trail outing
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K3055 |
| UPC | 614901122985 |
| Lift | 2 inches, stage 1 |
| Suspension type | Coil spring kit |
| Front lift | Coil springs |
| Rear lift | Coil springs |
| Front shocks | ES3000 |
| Rear shocks | ES3000 |
| Max tire size | 32×11.50 |
| Wheel size range | 15 inches or larger |
| Wheel width range | 7 to 8 inches |
Vehicle fitment
It fits 2004–2006 Jeep Wrangler (LJ) Unlimited and Unlimited Rubicon models, and 1997–2006 Jeep Wrangler (TJ) models in the 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X trims. Wrangler (JK) and Wrangler (YJ) models are not covered.
Confirm your vehicle’s year, model and trim before ordering. Wrangler (JK) and Wrangler (YJ) models are not on this list.
Installation notes
A coil spring lift of this height changes the caster and driveline angles, so an alignment check is needed after installation. The shock boots are not included, so they must be bought separately if they are wanted.
What’s included

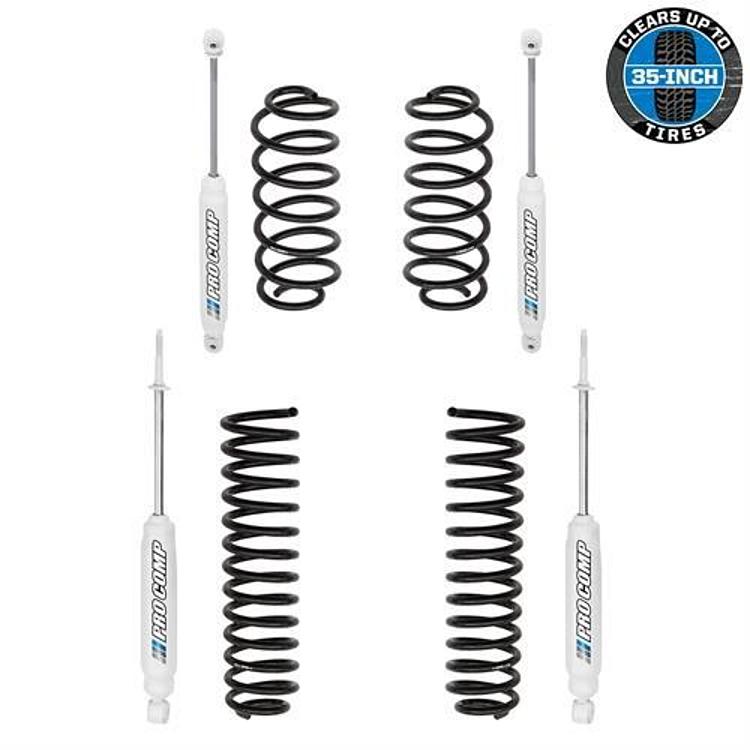

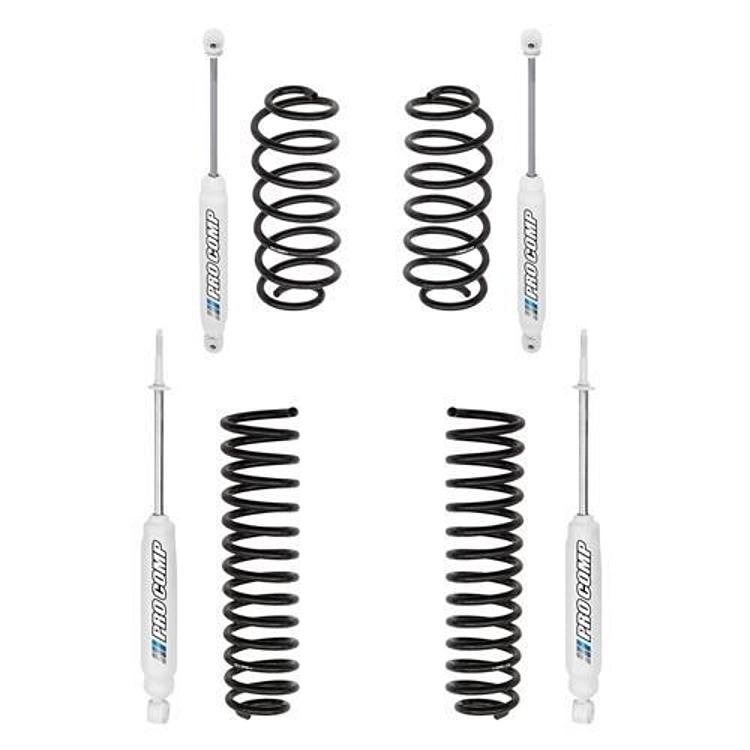

The kit includes front and rear coil springs and front and rear ES3000 shocks. Shock boots are not included.
