Overview
The Pro Comp 6-inch Lift Kit with PRO-M Shocks, part number EXPK1057M (kit K1057M), is a stage 1 suspension lift for 1999 to 2006 Chevrolet Silverado 1500 and GMC Sierra 1500 pickups, as well as the 2007 Classic versions. It fits the Silverado in the Base, Hybrid, LS, LT, SS, WT and Z71 versions, and the Sierra in the Base, Denali, HT, Hybrid, SL, SLE, SLT and WT versions.
The kit provides 6 inches of stage 1 lift, with a lift height range of 6 to 7 inches. The rear uses a block or spacer with a block and U-bolt component and add-a-leafs. It includes ES9000 shocks at the front and the rear.
Key features
- 6-inch stage 1 suspension lift

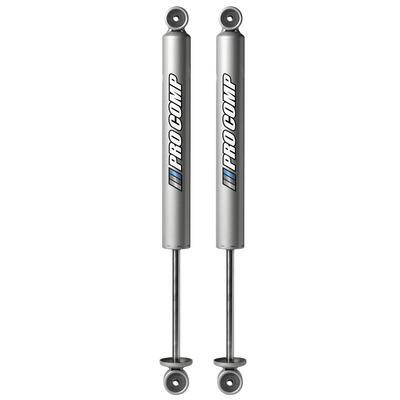

- ES9000 front and rear shocks, included
- Block and U-bolt rear with add-a-leafs
- Lift height range of 6 to 7 inches
Add-a-leaf rear basics
Add-a-leafs are extra leaves bolted to the factory rear spring pack. They add support to the rear and raise the back of the truck when used with a block and U-bolt setup. Because the rear is raised, the driveline angle changes and the pinion moves, so the driveshaft and U-joints deserve a careful look after the install.
Add-a-leafs can also make the rear feel firmer when the truck is empty, so shock action and bump stop height matter. Check the U-bolts after the first drives, since stacked leaves can settle. Keeping the tire size in mind helps, because the new ride height affects clearance in the wheel well at full steering lock.
- Check driveline angle and U-joints
- Retighten U-bolts after initial drives
- Confirm bump stop clearance
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | EXPK1057M |
| Kit code | K1057M |
| Suspension type | Lift kit, stage 1 |
| Lift height | 6 inches stage 1; range 6 to 7 inches |
| Rear lift method | Block or spacer |
| Rear lift component | Block and U-bolt with add-a-leafs |
| Shocks included | Yes |
| Front shocks | ES9000 |
| Rear shocks | ES9000 |
| Fit type | Direct fit |
Vehicle fitment
Coverage includes the 1999 to 2006 Silverado and Sierra 1500 and their 2007 Classic versions, across the trim packages that apply to each truck.
The list does not include 1998 and earlier or 2008 and newer 1500 pickups. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The add-a-leaf rear setup raises the rear and changes the driveline angle, so have the driveline and alignment checked after the install.

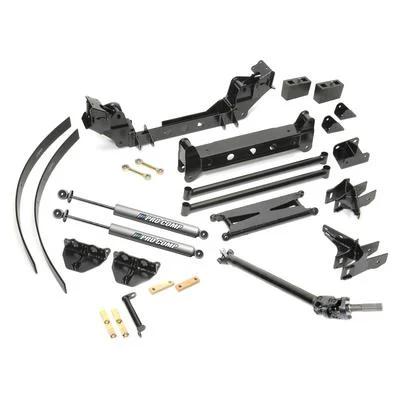

What’s included
The 6-inch stage 1 lift kit with ES9000 front and rear shocks and the block and U-bolt add-a-leaf components.
