Pro Comp 6 Inch Lift Kit with Front MX2.75 Coilovers and Rear Pro Runner Shocks – K2084BPX

Pro Comp Suspension

Shop Ram 1500 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6-inch knuckle lift with front MX2.75 coilover shocks
  • Rear Pro Runner shocks and extended stainless braided brake lines
  • Driveline spacer, crossmember drop brackets and extended sway bar links
  • Fits 2012-13 Ram 1500 4WD trucks

Description

Overview

The Pro Comp 6 Inch Lift Kit with Front MX2.75 Coilovers and Rear Pro Runner Shocks, part number K2084BPX, is a 6-inch knuckle lift. It is a stage 1 kit with a lift height range of 5 to 6.99 inches.

Pro Comp describes CNC machined knuckles and redesigned crossmembers for this platform, which it says improve geometry for minimal toe change during suspension travel. The front uses MX2.75 coilover shocks, and the rear uses Pro Runner shocks. The kit is finished in black and is listed with stainless steel braided brake lines.

Key features

  • 6-inch stage 1 knuckle lift
  • MX2.75 front coilover shocks
  • Rear Pro Runner shocks

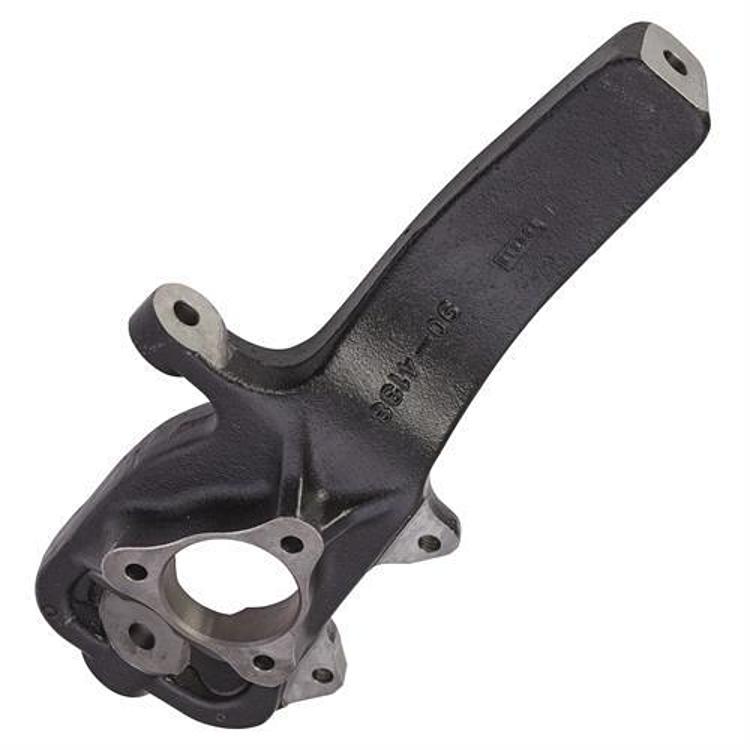

  • CNC machined knuckles

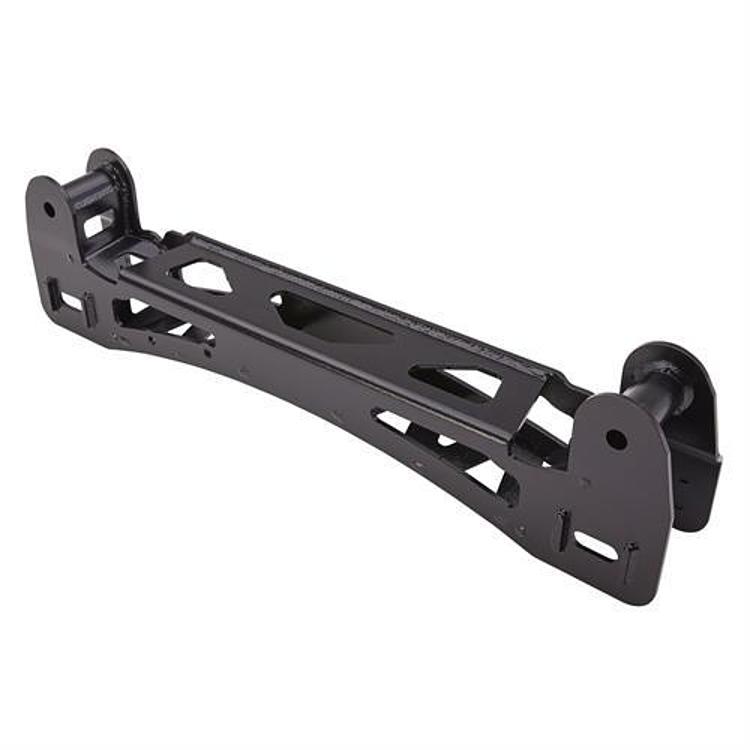

  • Redesigned crossmembers

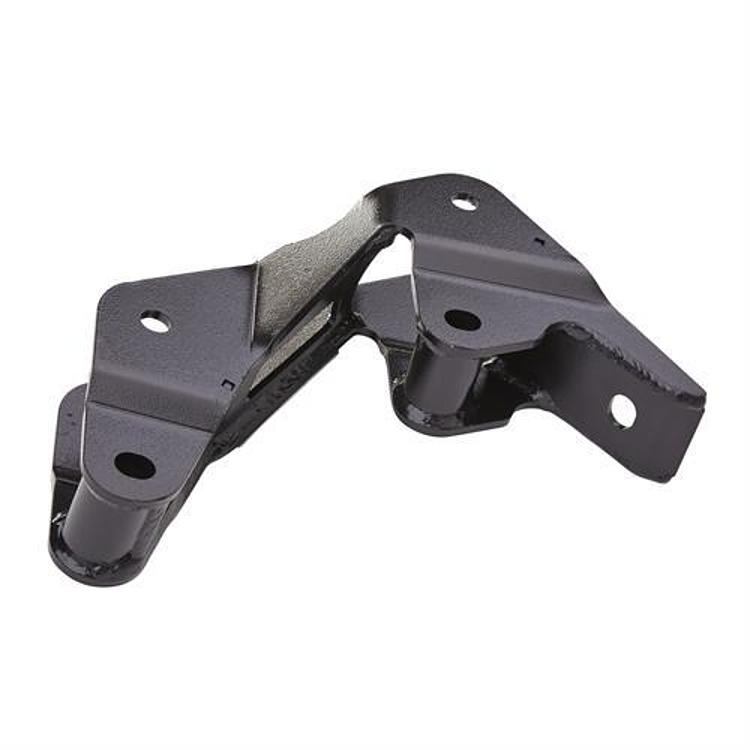

  • Crossmember drop brackets
  • Extended sway bar links and driveline spacer
  • Stainless steel braided brake lines

Before you install

A knuckle lift changes how the front wheels pivot, so the steering geometry is different after installation. Replacement knuckles and crossmembers work together with the coilover shocks, which means the front end should be treated as one system during setup. Take time to inspect the new brackets, bolts and brake lines before the first drive, and retorque fasteners after the first few trail runs.

Gear and driveline changes often follow a lift this size. Check the driveline angles and the sway bar links once the truck is back on its wheels, and look for rubbing at full compression or full droop. Shock and bushing wear shows up as clunking over bumps or uneven tire wear, so inspect them at regular service intervals.

  • Check brake line routing at full steering lock
  • Recheck torque on knuckle and crossmember bolts after initial use
  • Inspect coilover mounts for play each season

Specifications

Brand Pro Comp Suspension
Part number K2084BPX
UPC 70000676697
Lift height 6 inches, stage 1
Lift height range 5 to 6.99 inches
Suspension type Knuckle
Steering correction Knuckles
Rear lift Spacers
Front shocks MX2.75 coilover
Rear shocks Pro Runner
Finish Black
Drivetrain 4WD

Vehicle fitment

It fits 2012 and 2013 Ram 1500 trucks with 4WD. Make sure your year, model and trim match before you order.

It is designed for 4WD Ram 1500 trucks from 2012 and 2013. Check your year, model and trim before buying.

Installation notes

The MX2.75 coilovers and new knuckles change front geometry, so have the alignment and driveline angles checked after installation.

What’s included

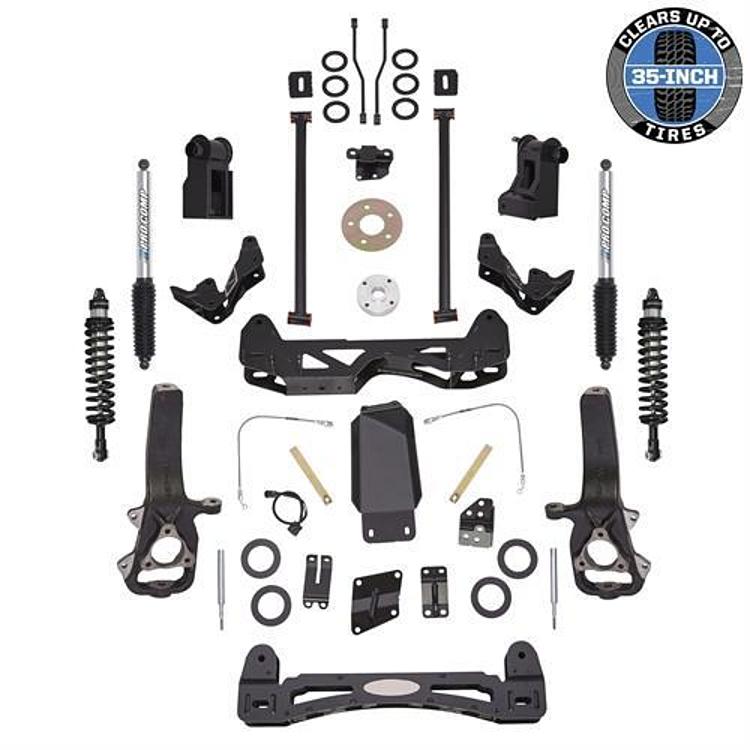

The kit includes CNC machined knuckles, redesigned crossmembers, crossmember drop brackets, extended sway bar links, a driveline spacer, stainless steel braided brake lines, MX2.75 front coilover shocks, and rear Pro Runner shocks.

SKU: EXPK2084BPX Category:

Specification

Shipping weight 360.90 lbs
Package dimensions 48.00 × 48.00 × 48.00 in
brands

Fitment

VehicleYearsTrims
Ram 1500 likely fits2012–2013All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K2084BPX fit a 2012 Ram 1500?

Yes. It fits 2012 Ram 1500 4WD trucks, since the 2012 and 2013 model years are covered. Confirm your vehicle's year, model and trim before ordering.

Is the K2084BPX for 4WD trucks only?

Yes, it is designed for 4WD Ram 1500 trucks only, so confirm the drivetrain of your truck before installing the kit.

What front shocks does the K2084BPX use?

It uses MX2.75 coilover shocks at the front and Pro Runner shocks at the rear. Both sets of shocks come with the kit, so no separate purchase is needed for those positions.

How often should knuckle lift parts be inspected?

Inspect them after the first few trail runs, then at each service interval. Look for loose bolts, torn boots, leaking shocks and worn bushings. Early checks prevent small wear from becoming alignment or steering problems.
